Description

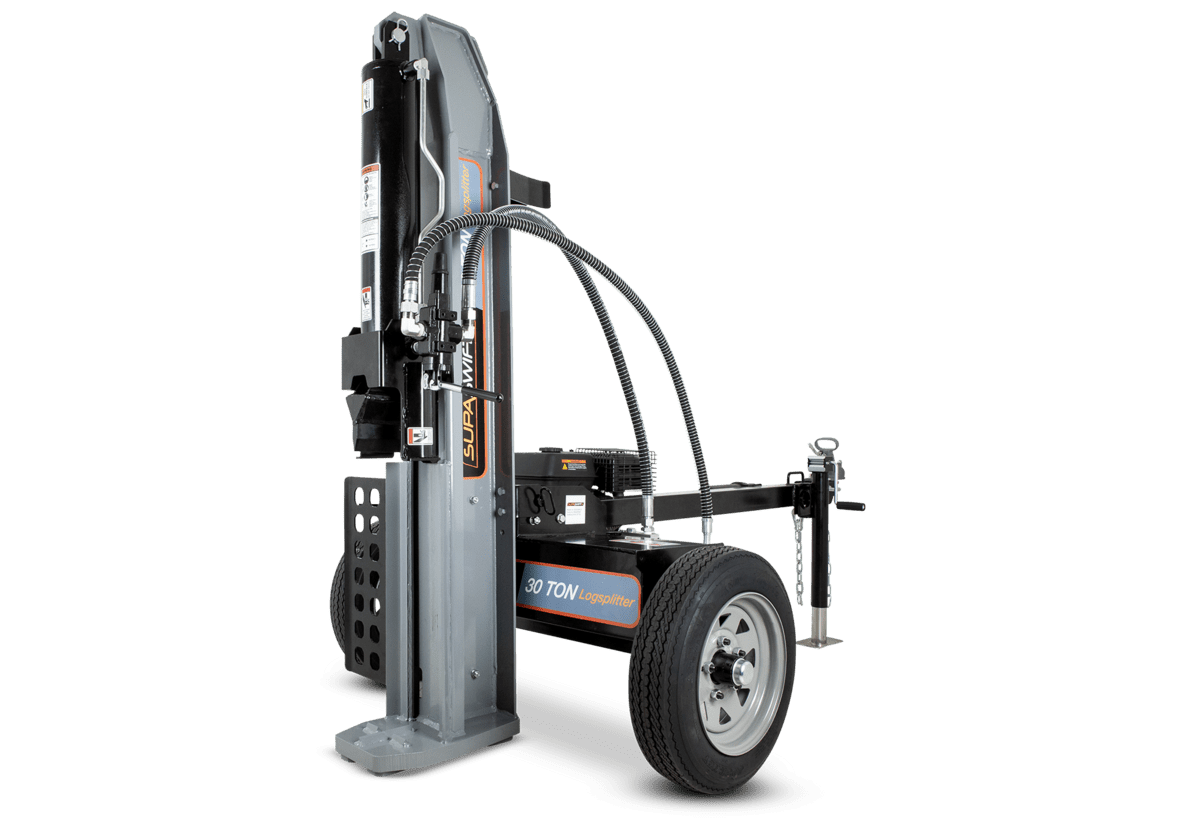

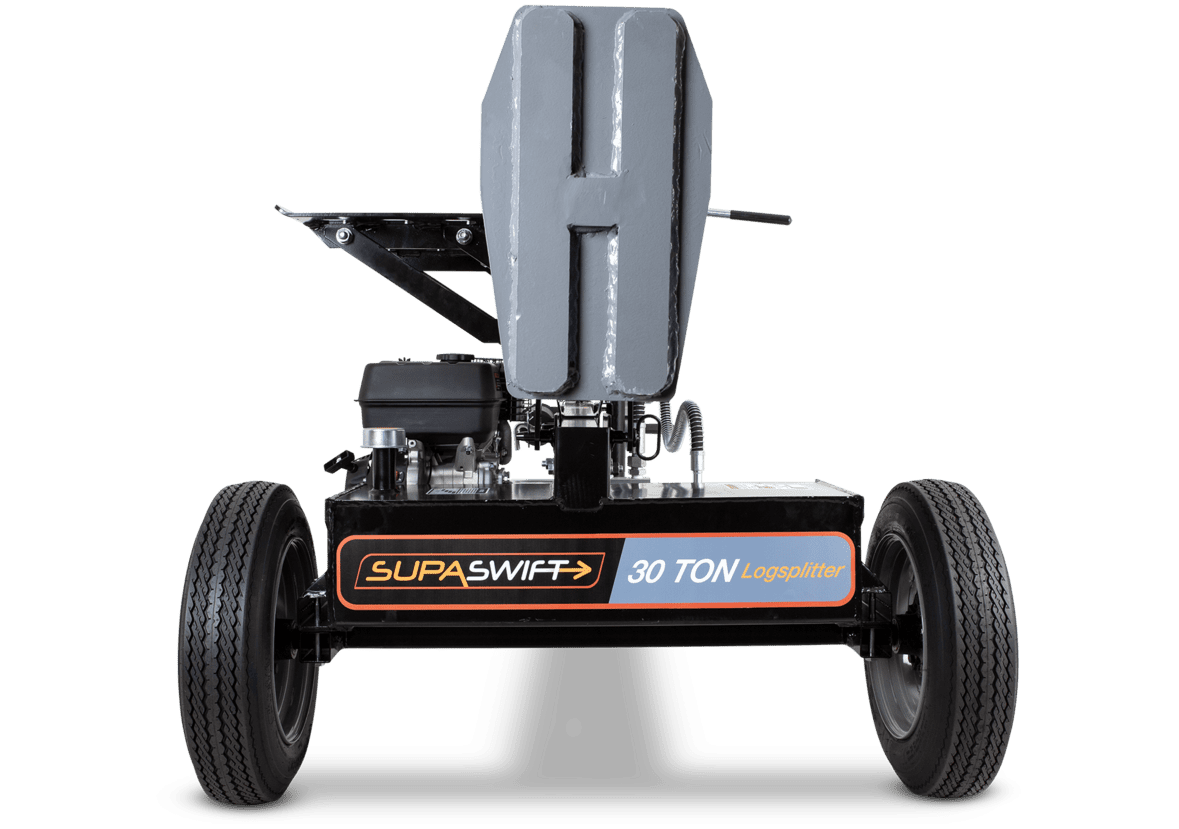

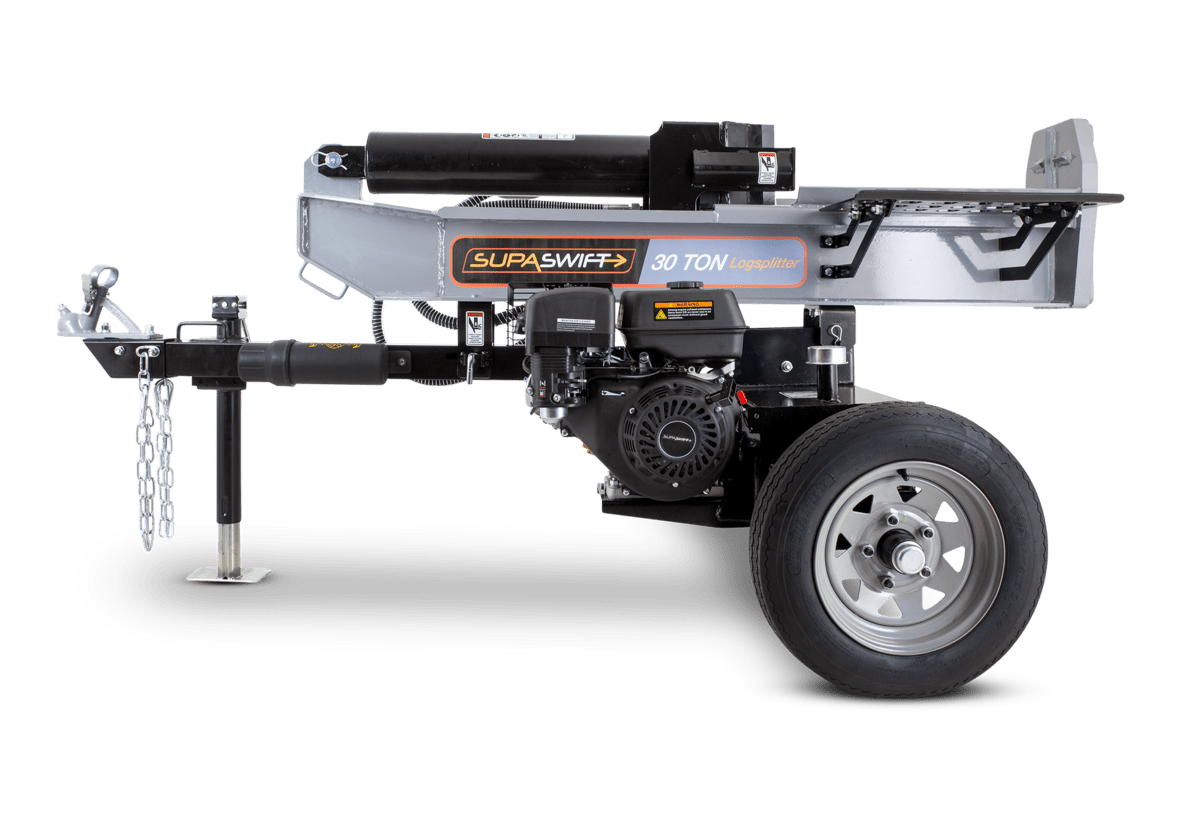

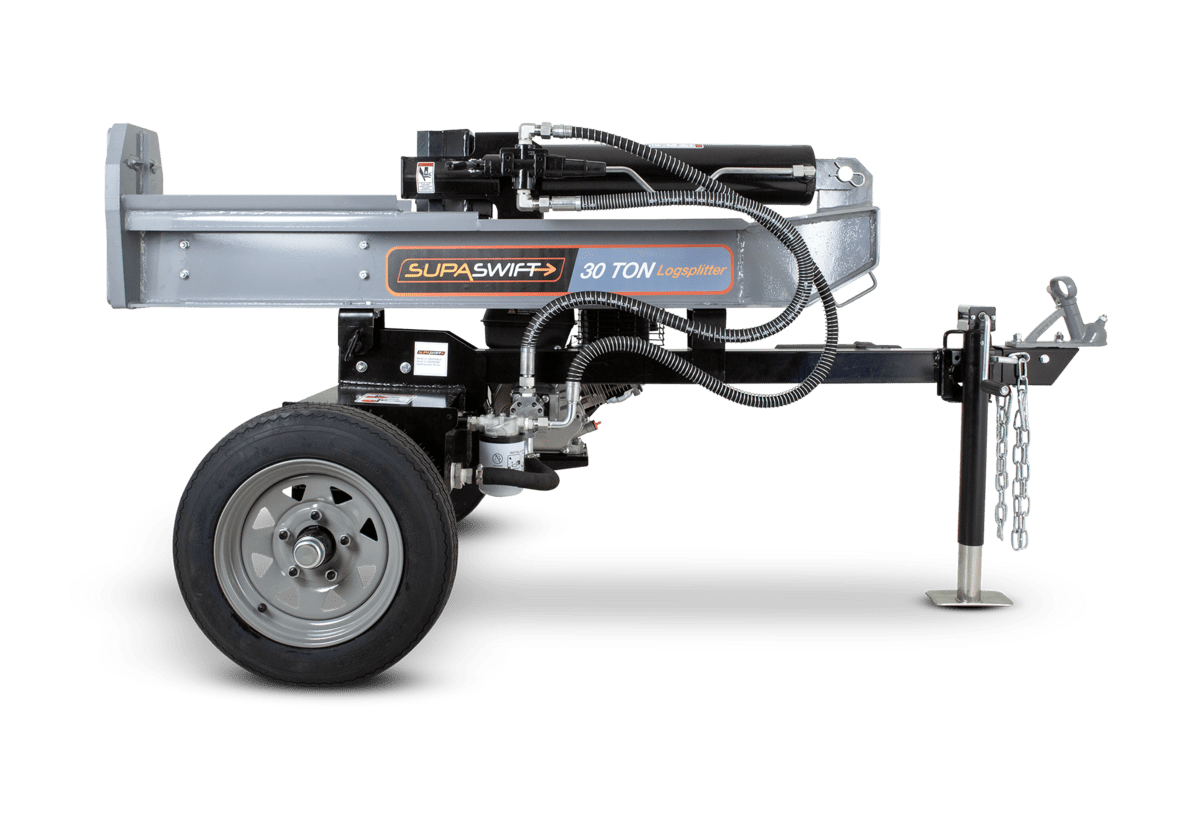

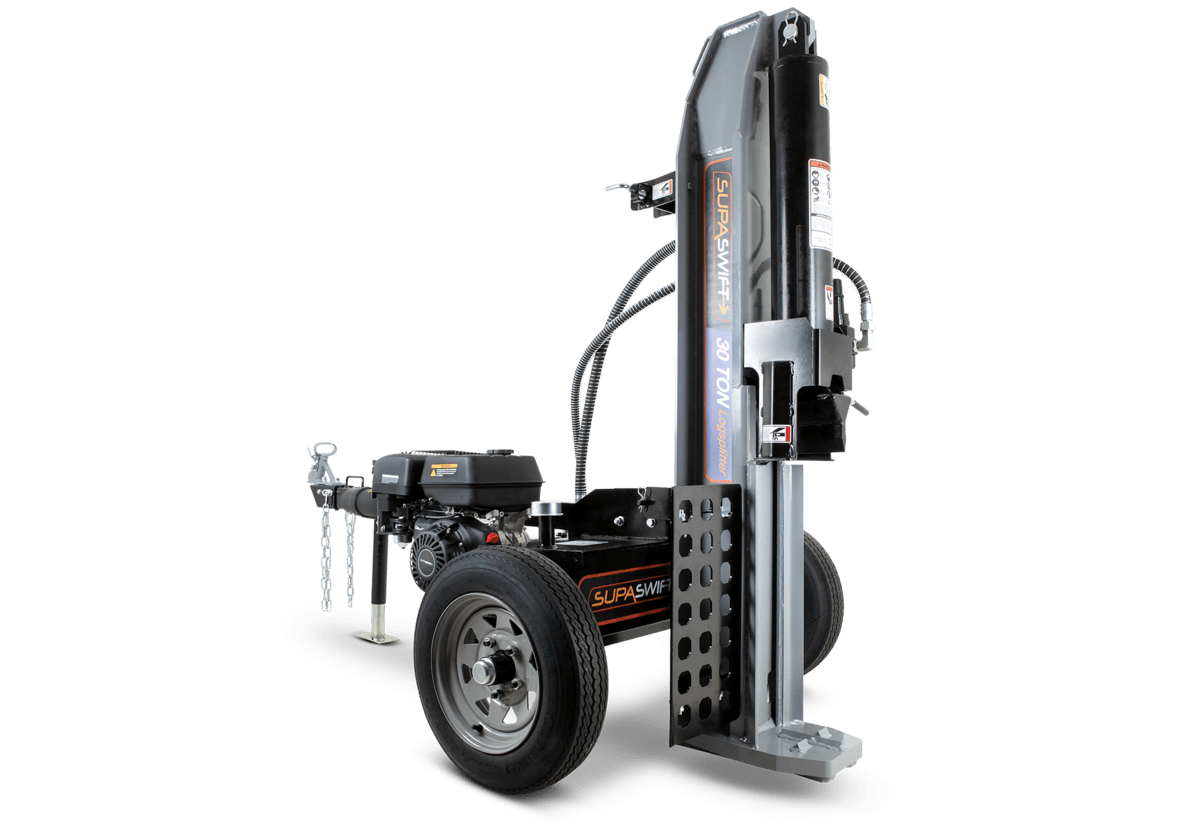

SupaSwift 530ALS 30-Ton Log Splitter
The SupaSwift 30-Ton log splitter provides quality and power at an affordable price. Fitted with a Loncin G270F (9.5 hp, 270cc) horizontal shaft, single cylinder OHV engine, an auto return valve with an 12.9 second cycle time and quality features throughout this log splitter will provide many years of reliable service.
- Quality Engine - Loncin G270F, 9.5 hp 270cc, horizontal shaft, single cylinder OHV engine
- Horizontal or vertical operation.
- 30 Tons of splitting force.
- Manually activated auto return valve with adjustable detent.
- Cycle time, down and back 12.9 seconds.
- Two stage pump 15 GPM (56.78 litres per minute).
- Valve - Ergonomically positioned for operator comfort.
- Wedge: 9" (228.6 mm) High angled heat treated steel.
- Wheels / Tyres*: 4.80" x 12" D.O.T certified.
- Beam: 9" (228.6 mm) Foot plate.
Specifications
Warranty Information
Domestic Warranty: 3 Year Domestic Warranty
Commercial Warranty: 3 Month Commercial Warranty
Hire/Rental Warranty: 3 Month Hire/Rental Warranty
Miscellaneous
Wedge: (mm): 9" (228.6 mm) High angled heat treated steel
Capacity: 30 Tons of splitting force
Valve: Manually activated auto return valve with adjustable detent
Wheels / Tyres: *D.O.T approved 12" x 4.80" multi lug trailer wheel
Engine and Fuel Specs
Engine: Quality Engine - Loncin G270F, 9.5 hp 270cc, horizontal shaft, single cylinder OHV engine
Log Splitter Specs
Hydraulic Ram Cylinder: (mm): Outside: 139.7 mm x 609.6 mm stroke / Inside: 127mm x 622.3 mm stroke
Hydraulic Tank Capacity: (L): 50 litres [Hydraulic system including hydraulic tank]
Maximum Log Length: (mm): 25" / 635 mm
Pump: (L): Two stage pump 15 GPM (56.78 litres per minute)
Tow Hitch: (mm): *2" (50 mm) ball hitch with safety chains - Aust style trailer bail hitch
Operating Position: Horizontal or vertical operation
Cycle Time: 12.9 seconds (down and back)
Beam (mm): 9" Foot plate / 228.6 mm Foot plate
Ram Size: 2" (50.8 mm) Dia
