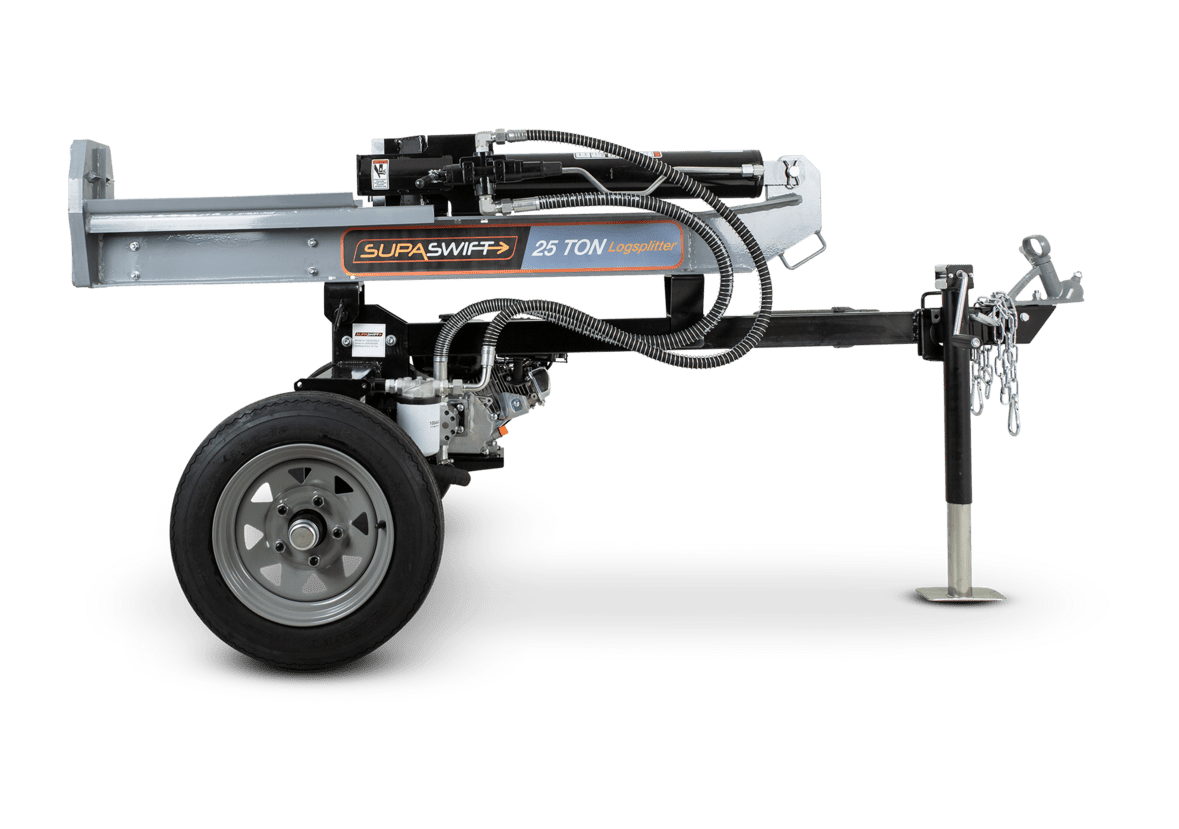

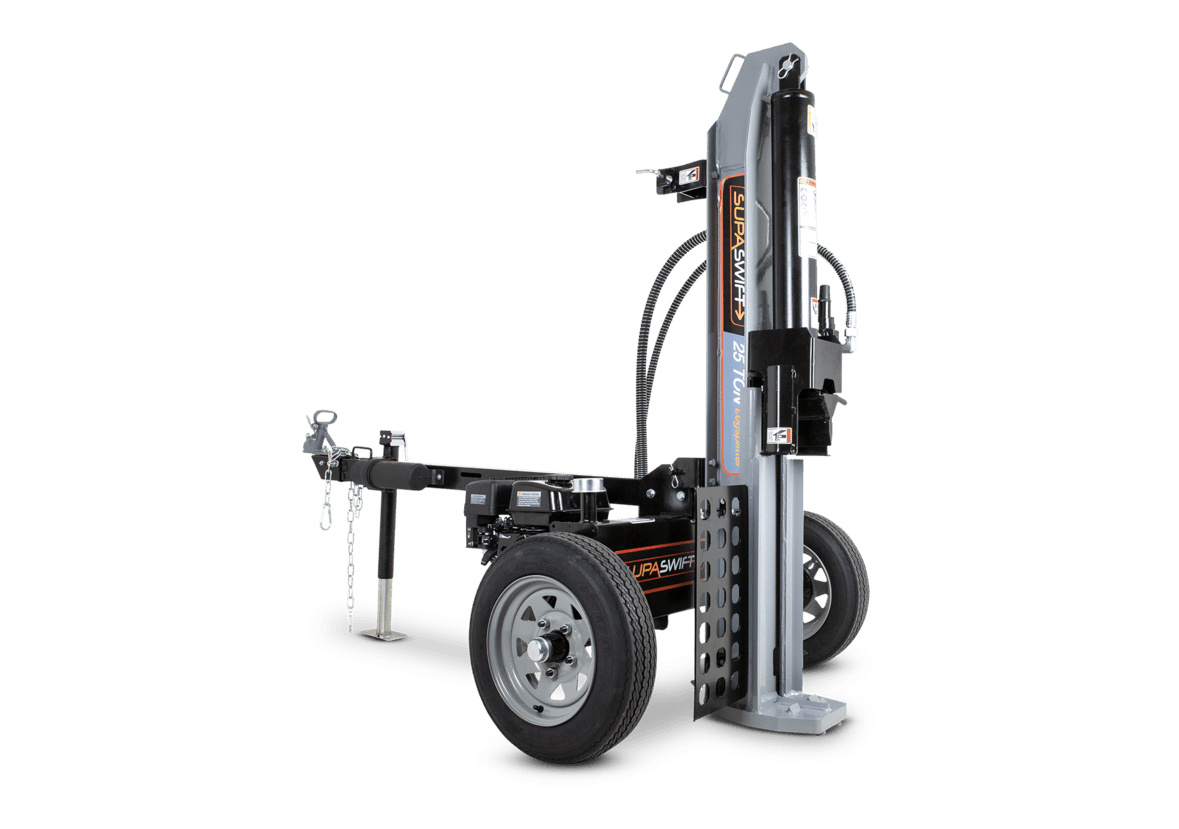

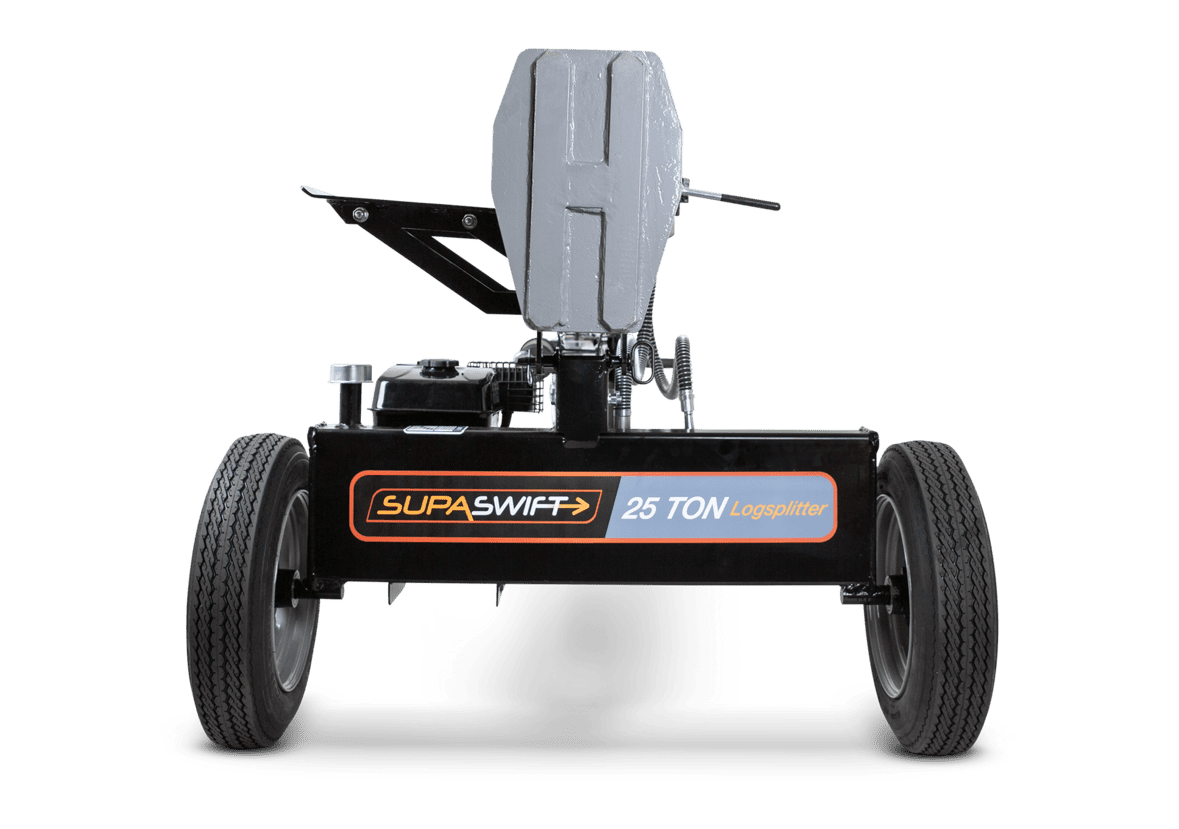

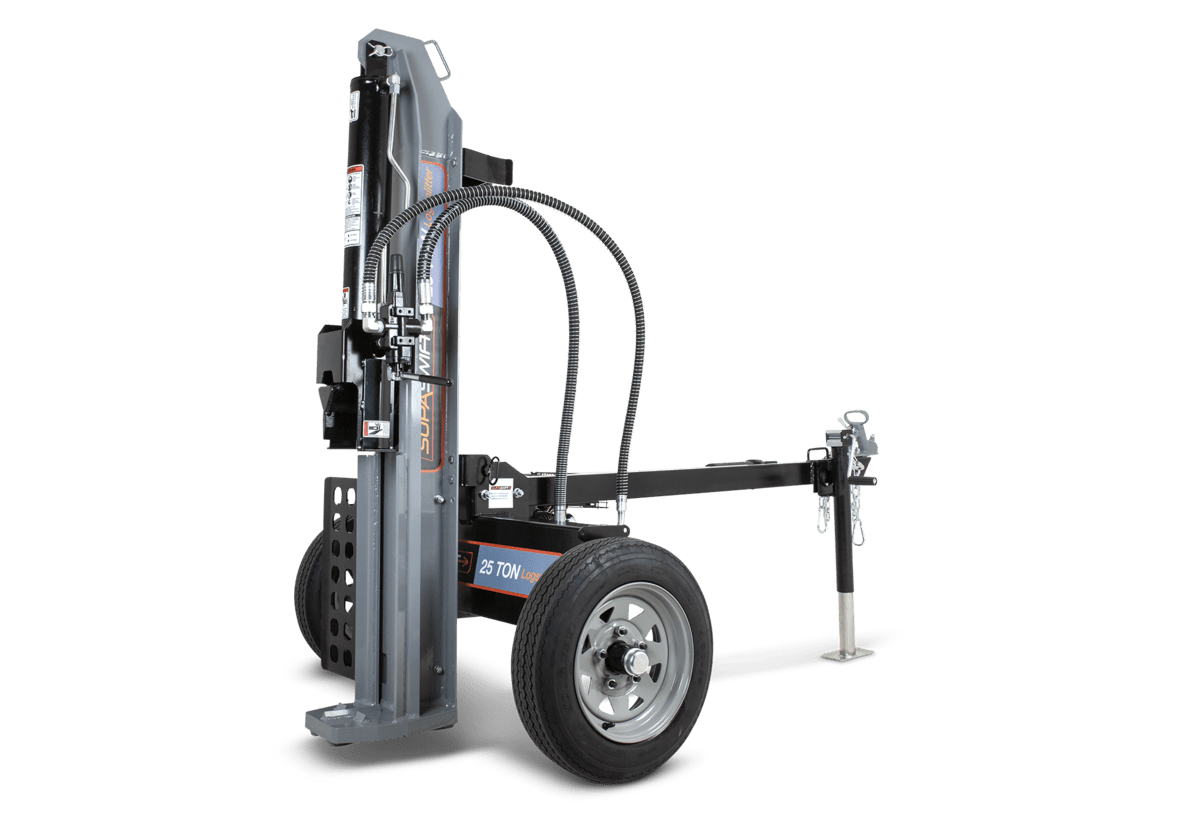

SupaSwift 525ALS 25-Ton Log Splitter
The SupaSwift 25-Ton log splitter provides quality and power at an affordable price. Fitted with a SupaSwift 6.5 hp (196 cc) engine, a manually activated auto return valve with an 10.9 second cycle time and quality features throughout this log splitter will provide many years of reliable service.
- Quality Engine - SupaSwift 6.5 hp (196 cc) single cylinder, horizontal shaft OHV engine.
- Horizontal or vertical operation.
- 25 Tons of splitting force.
- Manually activated auto return valve.
- Two stage pump 13 GPM (49.21 litres per minute).
- Valve - Ergonomically positioned for operator comfort.
- Wedge: 8.5 " (215.9 mm) High angled heat treated steel.
- Wheels / Tyres*: 4.80" x 12" D.O.T certified.
- Beam: 8.5" (215.9 mm) Foot plate.
- The beam and axe head are heavily reinforced, and the paint is a chip resistant hammertone finish.
Specifications
Warranty Information
Domestic Warranty: 3 Year Domestic Warranty
Commercial Warranty: 3 Month Commercial Warranty
Hire/Rental Warranty: 3 Month Hire/Rental Warranty
Miscellaneous
Wedge: (mm): 8.5 " (215.9 mm) High angled heat treated steel
Capacity: 25 Tons of splitting force
Valve: Manually activated auto return valve with adjustable detent
Wheels / Tyres: *D.O.T approved 12" x 4.80" multi lug trailer wheel
Engine and Fuel Specs
Engine: SupaSwift 6.5 hp (196 cc) single cylinder, horizontal shaft OHV engine
Log Splitter Specs
Hydraulic Ram Cylinder: (mm): Outside: 114.3 mm x 609.6 mm stroke / Inside: 101.6 mm x 622.3 mm stroke
Hydraulic Tank Capacity: (L): 25.5 litres
Maximum Log Length: (mm): 25" / 635 mm
Pump: (L): Two stage pump 13 GPM (49.21 litres per minute)
Tow Hitch: (mm): *2" (50 mm) ball hitch with safety chains - Aust style trailer bail hitch
Operating Position: Horizontal or vertical operation
Cycle Time: 10.9 seconds (down and back)
Beam (mm): 8.5" Foot plate / 215.9 mm Foot plate
Ram Size: 1.75" (44.45 mm) Dia
