Description

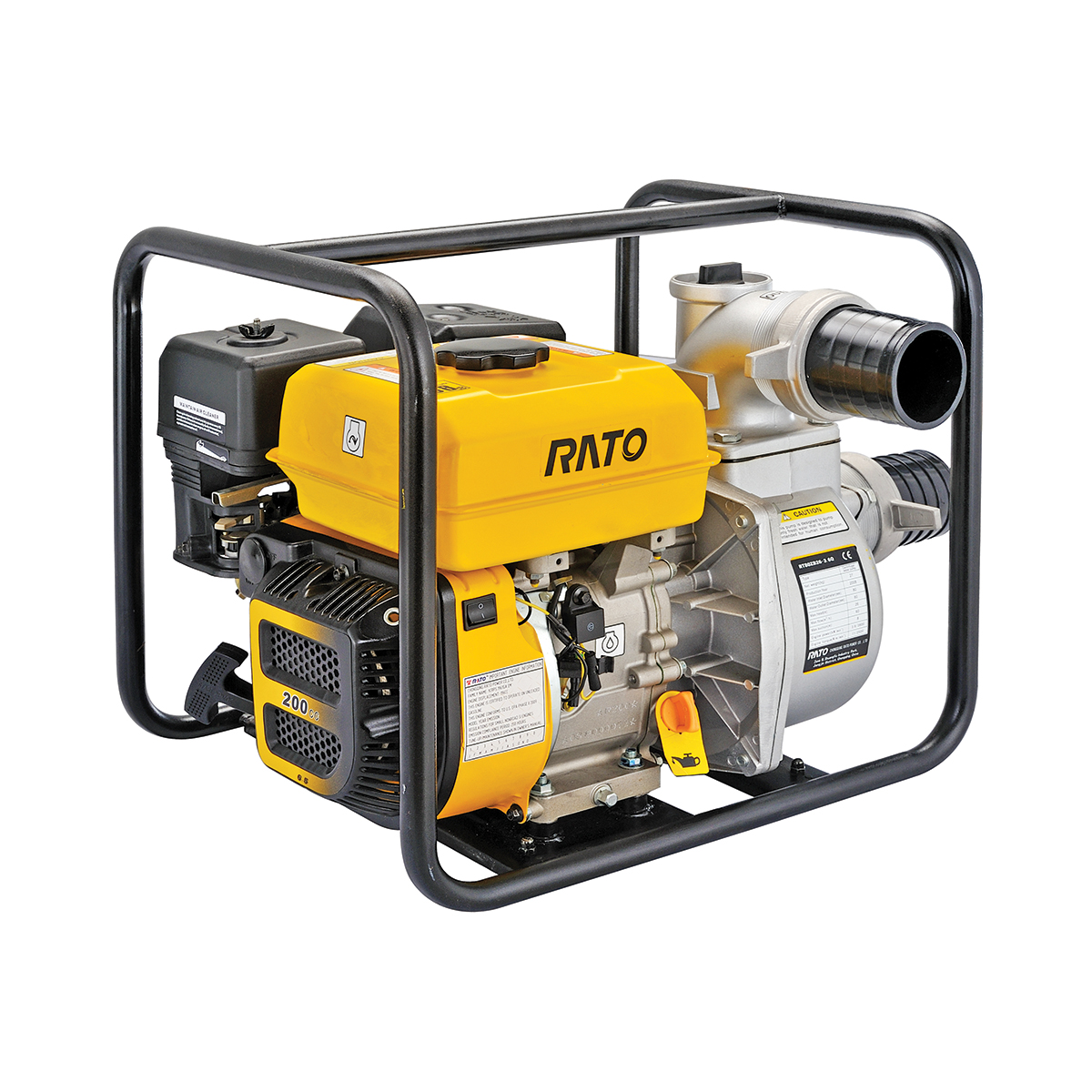

Rato 3″ Clean Water Transfer Pump
Introducing the RATO RT80ZB28-3.6Q clean water pump to the JAK Max product range.
The RATO RT80ZB28-3.6Q clean water pump features a unique design and is manufactured for general water pumping applications. It has a tough aluminium housing and a corrosion resistant e-coated frame making it perfect for any job out in the Australian weather. If you’re looking to move large volumes of water quickly, then this is the pump for you!
Covered by our 2 year/500 hour domestic warranty.
FEATURES
- 7hp 4 stroke OHV engine
- Delivers 100L/min
- Rugged full frame protection with anti-vibration mounts
- Cast iron volute and impeller with a silicon carbide seal
- Complete accessories available
- Scroll case is located by positioning pin for more reliable use
- Anti-winding ring, so clear water pump has the function of dust water pump
- Separated shock pad design for the support base, in order to minimize the shock
SPECIFICATIONS
| Bore x Stroke |
70 x 55mm |
|---|---|
| Displacement |
212ml |
| Compression Ratio |
9 : 1 |
| Net Power |
4.4kw / 3600rpm |
| Fuel Consumption |
≤395(g/kw-h) |
| Net Torque |
12N.m / 2500rpm |
| Pump Set |
3" clean pump |
| Suction Port Diameter |
75mm (3") |
| Discharge Port Diameter |
75mm (3") |
| Suction Head Lift |
8m |
| Total Head Lift |
28m |
| Discharge Capacity |
60m3/h / 1000 litres per minute |
| Dimensions (L x W x H mm) |
500 x 395 x 445 |
| Net Weight |
25.5kg |
