Description

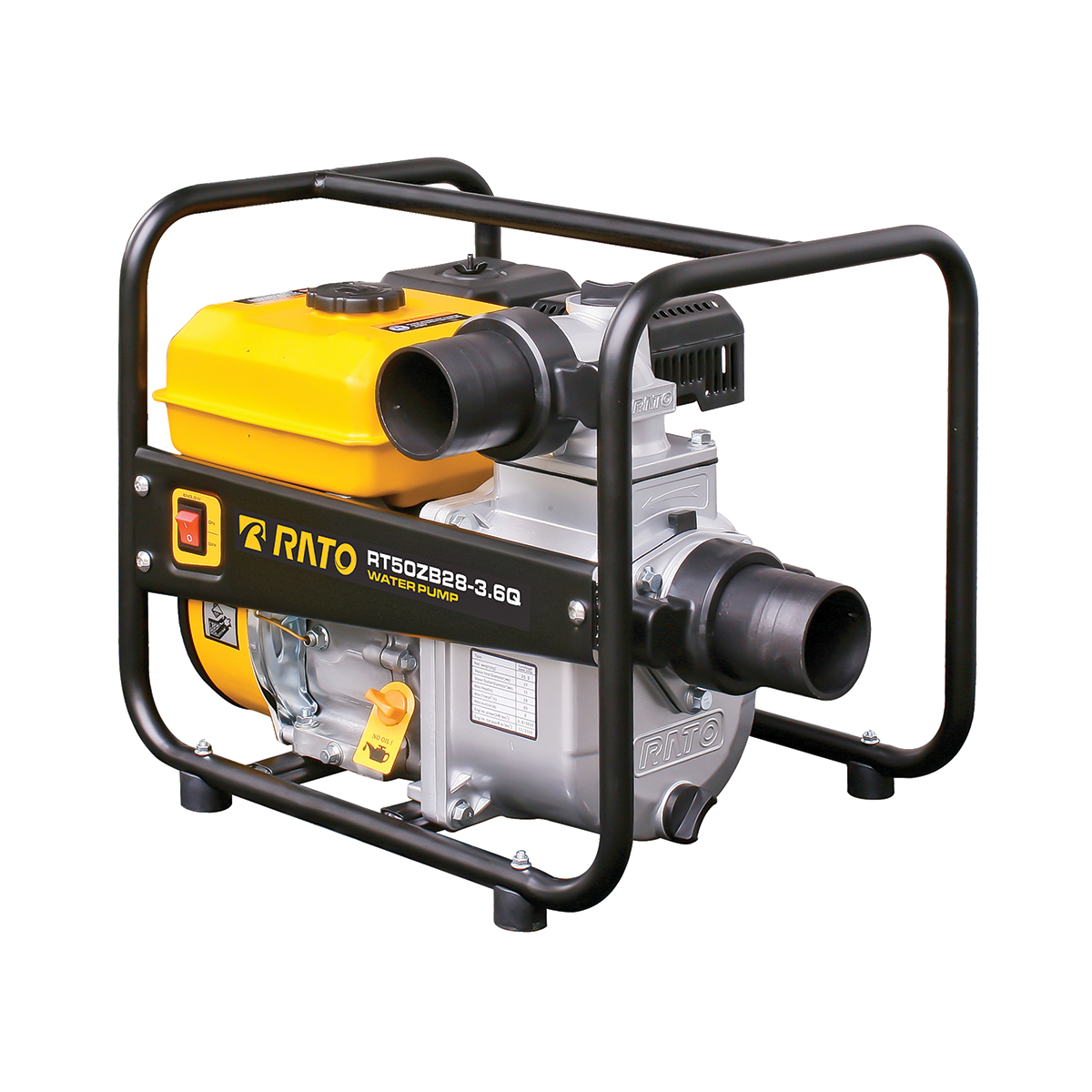

Rato 2″ Clean Water Transfer Pump
Introducing the RATO RT50ZB28-3.6Q clean water pump to the JAK Max product range.
The RATO RT50ZB28-3.6Q clean water pump features a unique design and is manufactured for general water pumping applications. It has a tough aluminium housing and a corrosion restistant e-coated frame making it perfect for any job out in the harsh Australian weather.
Covered by our 2 year/500 hour domestic warranty.
FEATURES
- 7hp 4 stroke OHV engine
- High delivery rates
- Rugged full frame protection with anti-vibration mounts
- Cast iron volute and impeller with a silicon carbide seal
- complete accessories available – scroll case is located by positioning pin for more reliable use
- Anti-winding ring, so clear water pump has the function of dust water pump
- Separated shock pad design for the support base, in order to minimize the shock
SPECIFICATIONS
| Bore x Stroke |
52 x 46mm |
|---|---|
| Displacement |
212ml |
| Compression Ratio |
9 : 1 |
| Net Power |
4.4kw / 3600rpm |
| Fuel Consumption |
≤395 (g/kw-h) |
| Net Torque |
12N.m / 2500rpm |
| Pump Set |
2" clean pump |
| Suction Port Diameter |
50mm (2") |
| Discharge Port Diameter |
50mm (2") |
| Suction Head Lift |
8m |
| Total Head Lift |
28m |
| Discharge Capacity |
36m3/h / 600 litres per minute |
| Dimensions (L x W x H mm) |
477 x 395 x 410 |
| Net Weight |
23.5kg |
