Description

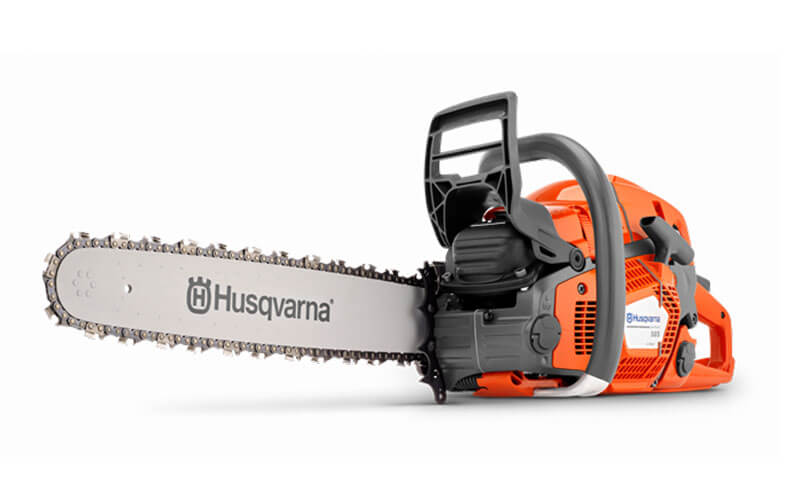

Husqvarna Chainsaw 565 AutoTune™
With outstanding cutting performance, the 565 will help you work faster even with long guide bars. Excellent cooling capacity and state-of-the art filtration means great performance and easy operation even for the toughest jobs.
Equipped with AutoTune™ and Air Injection™ and with low vibration levels, the 565 is a powerful yet ergonomically designed chainsaw for fast, safe work.
SPECIFICATIONS
| Equipment | |
| Bar length (inch) | 20 in |
| Chain speed at 133% of maximum engine power speed | 27.5 m/s |
| Chain speed at max power | 20.7 m/s |
| Pitch | 3/8" |
| Recommended bar length, max | 28 in |
| Recommended bar length, max | 70 cm |
| Recommended bar length, min | 15 in |
| Recommended bar length, min | 38 cm |
| Engine | |
| Cylinder bore | 48 mm |
| Cylinder displacement | 70.6 cm³ |
| Cylinder stroke | 39 mm |
| Electrode gap | 0.5 mm |
| Fuel consumption | 442 g/kWh |
| Fuel consumption | 1.63 kg/h |
| Fuel tank volume | 0.7 l |
| Idling speed | 2700 rpm |
| Ignition module air gap | 0.3 mm |
| Maximum power speed | 9300 rpm |
| Power output | 3.7 kW |
| Power source | Petrol |
| Spark plug | NGK BPMR7A |
| Torque, max. | 4.2 Nm |
| Vibration | |
| Equivalent vibration level (ahv, eq) front handle | 5.2 m/s² |
| Equivalent vibration level (ahv, eq) rear handle | 5.3 m/s² |
| Lubricant | |
| Oil pump type | Adjustable flow, no flow at idle |
| Oil tank volume | 0.35 l |
| Sound and Noise | |
| Sound power level, guaranteed (LWA) | 119 dB(A) |
| Sound power level, measured | 117 dB(A) |
| Sound pressure level at operators ear | 105 dB(A) |
| Dimensions | |
| Weight (excl. cutting equipment) | 6.5 kg |
