Description

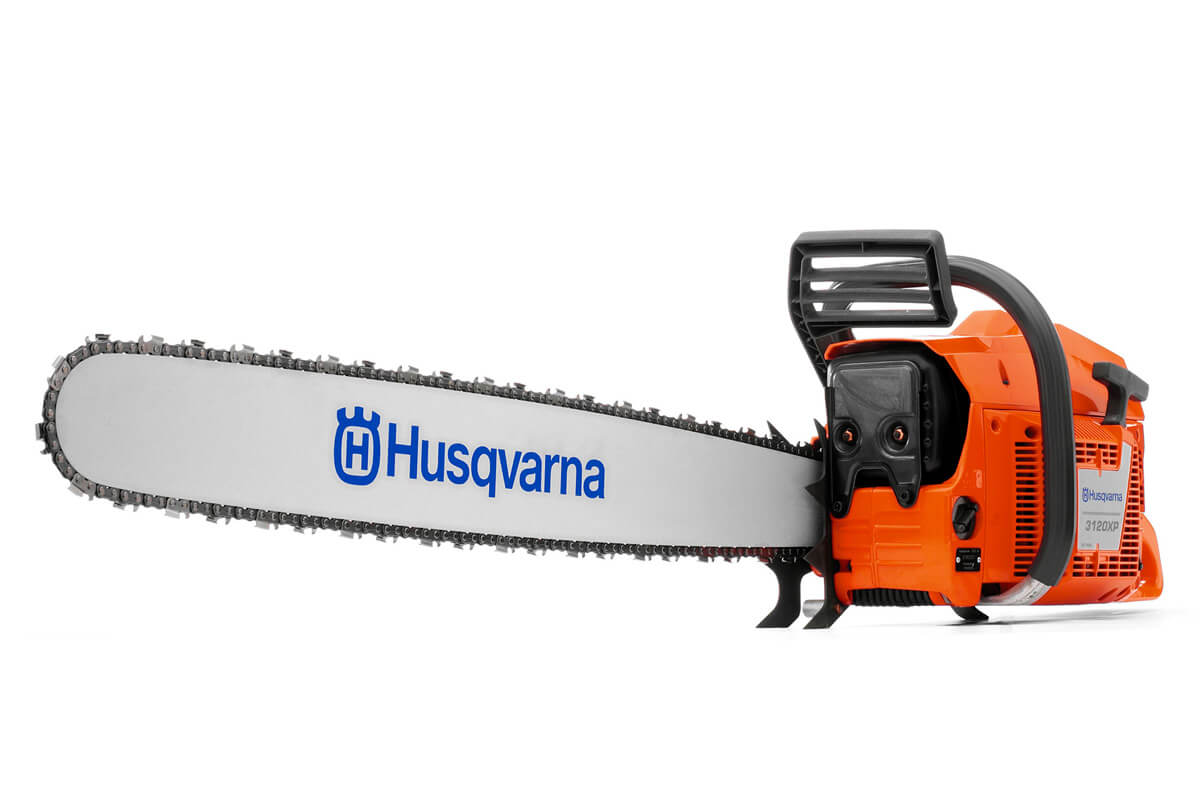

Husqvarna Chainsaw 3120 XP®
One of the world's most powerful saws. Built for professionals who fell the largest dimensions of trees and extremely hard types of wood. Good ergonomics and excellent power-to-weight ratio.
Easy to start thanks to Smart Start®. Equipped with a chain brake, chain catcher and right hand guard for maximum safety, the slim, lightweight body with a high centre of gravity makes it easy to carry and use.
SPECIFICATIONS
| Equipment | |
| Bar length (inch) | 28 in |
| Chain speed at 133% of maximum engine power speed | 26.7 m/s |
| Chain speed at max power | 20.1 m/s |
| Pitch | .404" |
| Recommended bar length, max | 42 in |
| Recommended bar length, max | 105 cm |
| Recommended bar length, min | 24 in |
| Recommended bar length, min | 60 cm |
| Engine | |
| Cylinder bore | 60 mm |
| Cylinder displacement | 118.8 cm³ |
| Cylinder stroke | 42 mm |
| Electrode gap | 0.5 mm |
| Fuel consumption | 570 g/kWh |
| Fuel consumption | 3.1 kg/h |
| Fuel tank volume | 1.25 l |
| Idling speed | 2500 rpm |
| Ignition module air gap | 0.3 mm |
| Maximum power speed | 9000 rpm |
| Power output | 6.2 kW |
| Power source | Petrol |
| Spark plug | Champion RCJ7Y, NGK BPMR7A |
| Torque, max. | 7.7 Nm |
| Vibration | |
| Equivalent vibration level (ahv, eq) front handle | 6.7 m/s² |
| Equivalent vibration level (ahv, eq) rear handle | 7.8 m/s² |
| Lubricant | |
| Oil pump capacity, max | 54 ml/min |
| Oil pump capacity, min | 30 ml/min |
| Oil pump type | Automatic |
| Oil tank volume | 0.7 l |
| Sound and Noise | |
| Sound power level, guaranteed (LWA) | 116 dB(A) |
| Sound power level, measured | 115 dB(A) |
| Sound pressure level at operators ear | 102 dB(A) |
| Dimensions | |
| Weight (excl. cutting equipment) | 10.4 kg |
