Description
Husqvarna AUTOMOWER® 535 AWD Robotic Mower
Advanced and highly effective robotic mower with all-wheel-drive developed for professional use. The model is designed to take care of lawns up to 3,500 m² and navigates obstacles, tough terrain and slopes of up to 70 %.
Adapted for public installations with simplified control for easy interaction. Object detection through ultrasonic technology, remote control and surveillance—together with the rest of your product fleet— with Husqvarna Fleet Services™.
Robot Mower Installation Available: Transform your lawn with our expert robot mower installation! Enjoy a perfectly manicured yard with minimal effort. Our team will set up your robotic mower for optimal performance. Just give us a call!
All-Wheel Drive
Automower® AWD models feature technology that optimizes the control of each individual wheel in order to enable superior operation in the most demanding terrain. With an impressive slope performance that handles 70 % (35°) incline. Automower® AWD rewrites the rules for autonomous maintenance of green spaces, improving the safety of your workforce.

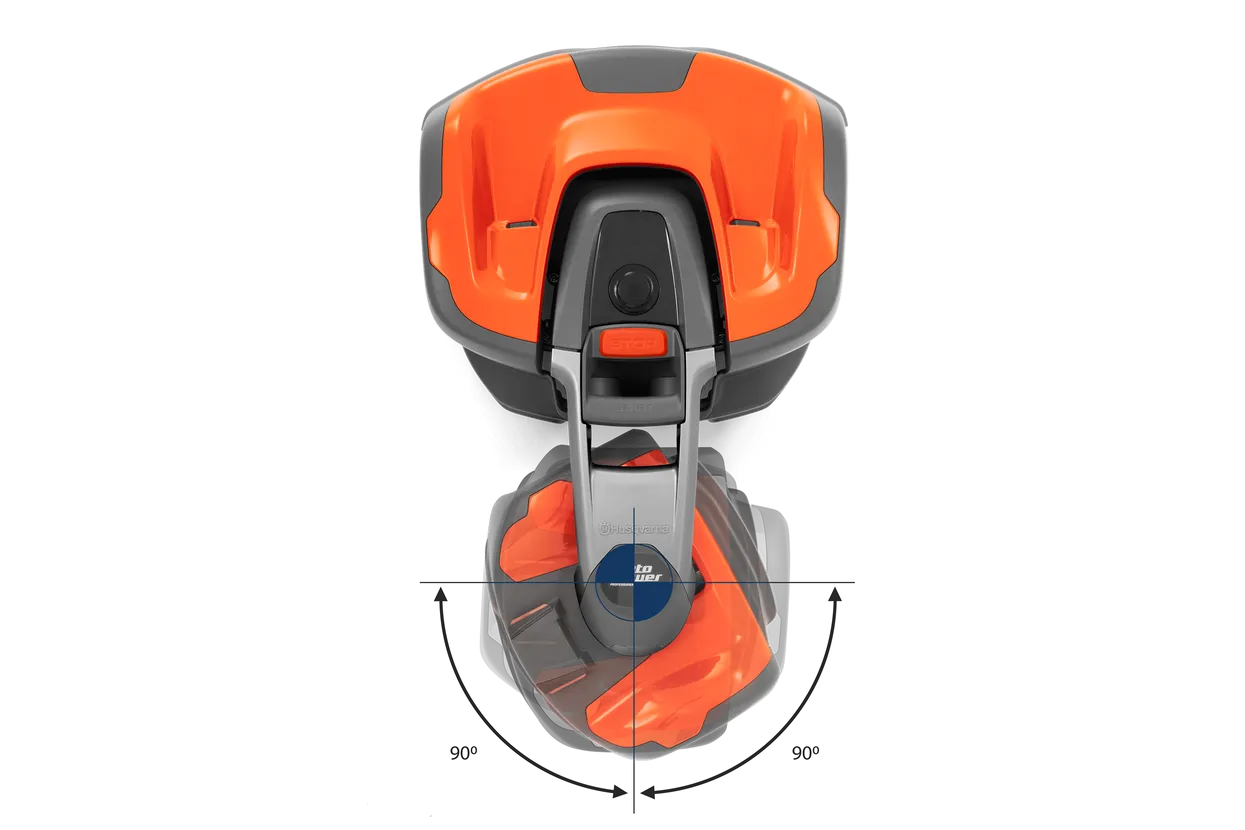

Pivoting rear body design
The articulated rear body design enables excellent maneuverability for navigation on complex lawns and through passages. The rear body also has a pivoting capability, considerably enhancing the traction in rough terrain, making the most out of the AWD operation on Automower® AWD models.
Manages slopes up to 70%
Large coarse-tread wheels provide excellent traction even if the surface is slippery. The mower handles slopes up to 70%.
Warning lights
Warning lights with pulsating or solid light to create awareness during operation at night. Reduces the risk of accidents in public work environments.
Husqvarna Fleet Services™
Husqvarna Fleet Services™ gives you full control of the mower with the possibility to monitor, control and analyze your entire fleet of products from your smartphone, tablet or laptop. You can overview the status and exact location, command them to start/stop or group-command them to park at storm warnings or in case of thunder. Settings and cutting heights are adjusted easily. Receive alarms and track the mower’s position in case of theft – from everywhere. Support required from Automower Connect during installation and when editing of EPOS boundary wire free installations.
Pro user interface
Interface adapted for professional handling, meaning all settings and controls managed remotely through Husqvarna Fleet Services smartphone app or via PC/tablet. Controls on product; status LED indication and START / STOP functionality. Simplifies use for inexperienced users and minimizes serious impact on the product in case of vandalism.
AIM Technology
Husqvarna AIM Technology uses onboard GPS and sensors to create a virtual map of the installed area. The map is visible in Automower® Connect, and includes the location of boundary and guide wires. With AIM Technology via the app it is easy to create work areas with unique cutting heights and schedules, or temporary stay-out zones when needed.
Weather timer
Adjusts the working time to the lawn’s growth rate, meaning that Husqvarna Automower® will maximise its mowing time during periods of strong grass growth. In sunny or dry weather, or late in the season, the mower will spend less time mowing, which decreases wear on the lawn and mower.
Remote object detection
Built-in sensors using ultrasonic technology helps the mower to detect objects, lowers the speed and avoid hard collisions.
Automatic passage handling - PATENTED
Husqvarna Automower® automatically senses narrow passages and finds its way even through the smallest passages. It will vary its route through the passage to avoid unpleasant tracks.
Electric height adjustment - PATENTED
Electric cutting height adjustment makes it convenient to set the desired height via the Husqvarna Automower® Connect app. The setting is also accessible from the mower’s main menu.
5 blade cutting disc
The cutting discs on the commercial models, Automower 500-series and CEORA, are equipped with 5 Enhance HSS blades, which gives a higher cutting performance. More blades per disc gives a finer cut and extends the interval for blade changes.
Unique cutting system
Husqvarna Automower® cuts just a little but frequently, which assures a nice and healthy lawn. It is equipped with sharp razor-like blades made of strong carbon steel mounted on a robust cutting disc system. This provides for efficient operation and extremely low energy consumption.
Triple guide wires - PATENTED
Triple guidewires reduces searching time even if the installation area is really large, complex or divided into several areas.
Balance control
Automatically detects and notifies if imbalance in the cutting system occur to ensure trouble-free and silent operation. Imbalance could be caused by missing, double mounted or damaged blades.
Manages slopes up to 45%
Large coarse-tread wheels provide excellent traction even if the surface is slippery. The mower handles slopes up to 45%.
FOTA – Firmware Over-The-Air
FOTA – a technology that enables the operators to perform upgrades of the firmware, via the Fleet Services app. The downloading is done remotely, without the need of physical intervention into the product, and enables new features and updates.
Theft protection by GPS
Products equipped with Automower Connect®/Husqvarna Fleet Services™ immediately begin tracking its GPS position and send notifications to your devices. Makes the installation extra safe and minimizes the risk of theft.
Safety sensors
If Husqvarna Automower® is used correctly, the product is safe and reliable. It is equipped with several sensors, including an automatic and immediate shutdown of the cutting function if the unit tips over or is lifted from the ground. The product design ensures that the blades are positioned well away from the outer edge of the machine body for increased safety. If Automower® encounters any obstacles, it stops or changes direction, further ensuring its mowing mission.
Weatherproof design
Husqvarna's robotic products are built with 30 years of experience in harsh weather types, such as the Nordic climate. They are designed to operate 24/7 throughout the grass growing season, with normal maintenance and cleaning. The unique cutting system, with free-hanging razor blades on a cutting disc, ensures the cutting result even in rainy conditions.
SPECIFICATIONS
Capacity |
with Amber headlights
Art no: 970 65 17‑06
|
Area capacity | 3,500 m² |
---|---|
Boundary type | Physical wire |
Maximum slope performance at boundary | 50 % |
Maximum slope performance inside installation | 70 % |
Max active time | 24 h |
Follow guide | 3 |
Charging system | Automatic |
Overall dimensions | |
Weight (complete product w/o side packed articles) | 17.6 kg |
Product size length | 93 cm |
Product size width | 55 cm |
Product size height | 29 cm |
Product data | |
Colour | Orange |
Sound level perceived | 60 dB(A) |
Protection Index (IP Code) | IPX4 |
Battery type | Li-Ion |
Battery capacity | 8 Ah |
Charging current | 7 A |
Typical mow time on one charge | 145 min |
Typical charging time | 45 min |
Mean energy consumption per month at maximum use | 24 kWh |
Area capacity - Standard 48 | 3,500 m² |
Area capacity - Sports 24 | 2,500 m² |
Area capacity - Max 72 | 4,000 m² |
Cutting System | |
Cutting system | 5 pivoting razor blades |
Cutting height max | 70 mm |
Cutting height min | 30 mm |
Cutting width | 22 cm |
Cutting height adjustment | Electric |
Skid plate | Yes |
Dual cutting direction | Yes |
Control | |
User Interface | Professional User Interface/App |
Display | None |
Connectivity | Bluetooth®, Cellular |
App controlled | Husqvarna Fleet Services |
Smart Home integration | Yes |
Firmware Update | FOTA |
Safety | |
GPS Theft tracking | Yes |
GeoFence | Yes |
PIN code | Yes |
Alarm | Yes |
Lift sensor | Yes |
Tilt sensor | Yes |
Object detection | Ultrasonic sensor |
