Description

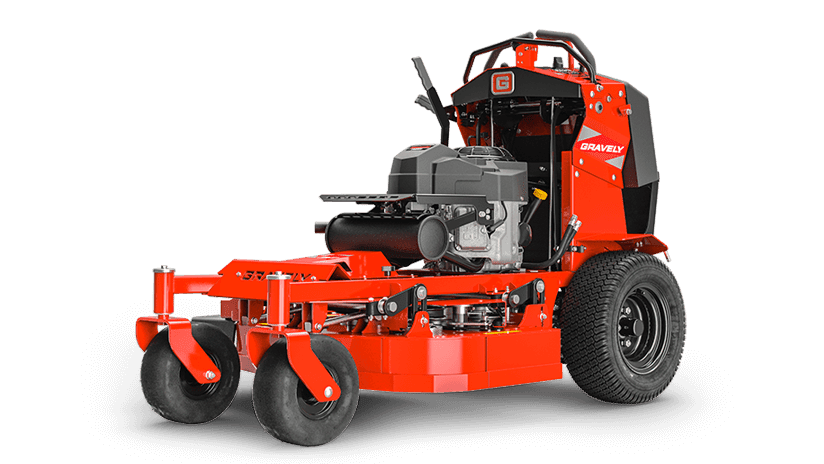

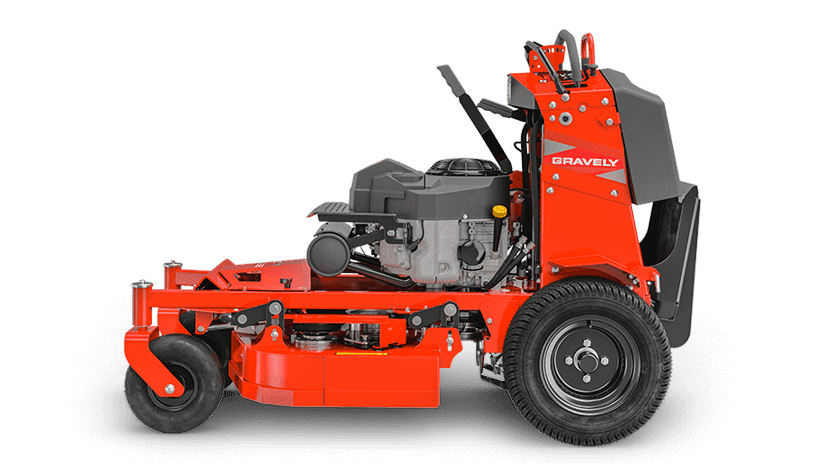

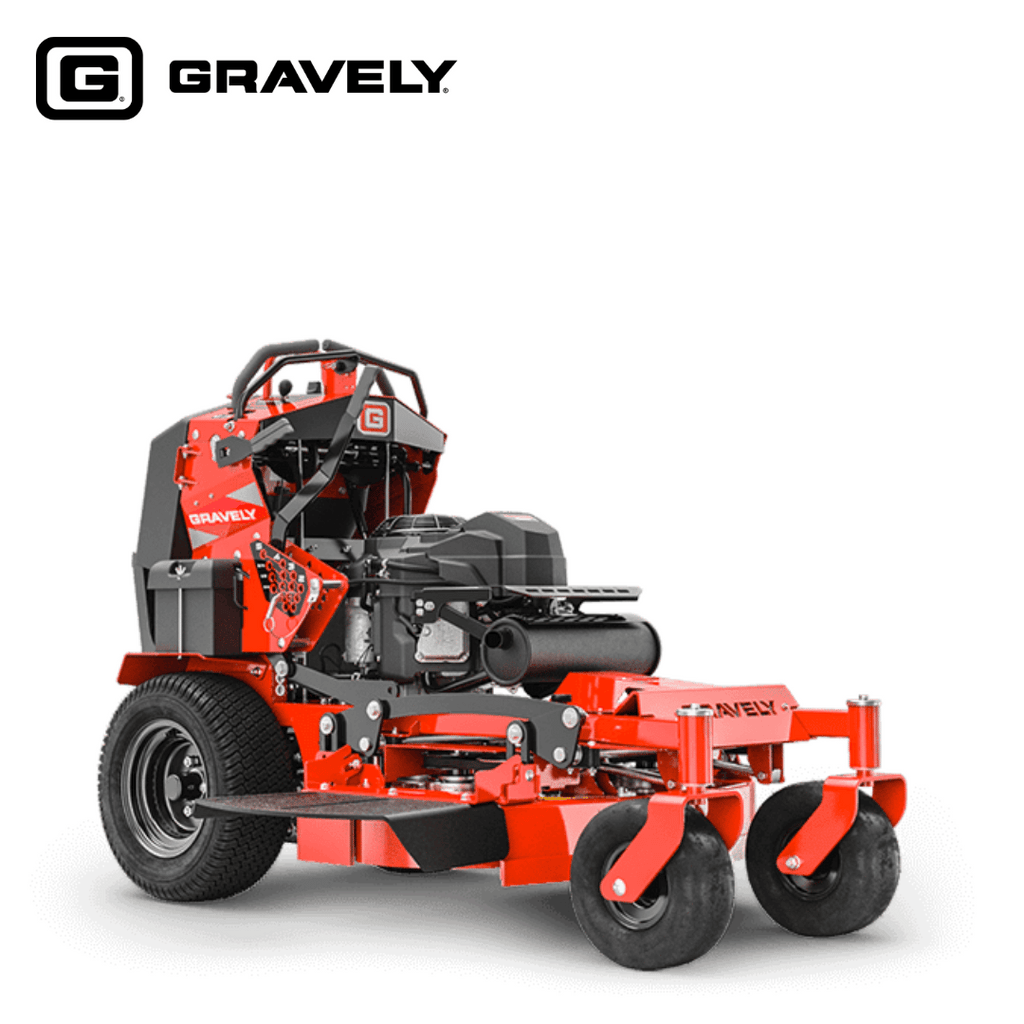

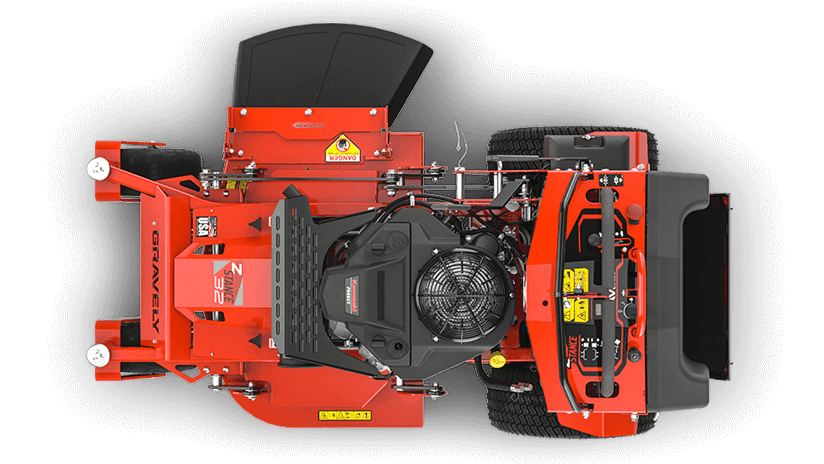

Gravely Z-Stance 32" Stand-On Zero-Turn Mower
Step up to greatness.
You’ll ride with pride as you deliver that perfect Gravely cut on the Z-Stance. This powerful commercial stand-on mower is easy to maneuver and a breeze to maintain. It will make quick work of a corporate campus or a gated backyard. You take a stand for comfort, ingenuity, and durability when you’re on a Z-Stance.
FEATURES
-
Kawasaki 18.5 hp FS600V premium and commercial grade V-twin engine.
-
Operator comfort features exceptional operator positioning for all-day comfort.
-
Added efficiency – reduced complexity gives users the freedom to make critical adjustments in just minutes.
-
X-FACTOR® 2 deck - the deck has been completely redesigned for better grass dispersion. Its new look is constructed from 7-gauge steel to deliver years of solid performance.
-
Compact stance perfect for tight spaces.
-
Offers 15 cutting positions, ranging from 38.1 mm - 127 mm.
-
Shock-absorbed operator platform which responds to driver’s weight.
-
Heavy-duty fabricated frame.
SPECIFICATIONS
Warranty Information
Domestic Warranty: 4 Year / 500 Hour Domestic Warranty
Commercial Warranty: 4 Year / 500 Hour Commercial Warranty
Miscellaneous
Blade(s): 2
Dimension Specs
Dry Weight: 304 kg
Height: 1207 mm
Width: 851 mm with chute up
Overall Length: 1634 mm
Zero Turn Mower Specs
Ground Speed - Forward: Up To 11.2 km/h
Brakes: Hand-operated Park brake
Construction: Frame 1" x 3" STEEL Tubular frame welded
ROPS: No
Controls: Hand-operated choke, throttle, ignition switch, electric mower clutch, Hand lever operated: hand brake
Deck System: 4 Point Lift Fabricated
Deck Lift: Dual deck height adjustment
Deck Construction: Fabricated 7 Gauge
Blade Tip Speed: 18,220 FPM
Blade Drive: V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life
Spindles: Forged Aluminium with sealed ball bearings
Drive System: Hydro-Gear® ZT-3100 Transaxle
Discharge Chute: High density, rubberised
Steering: Twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse and turns are all controlled with hand-operated controls
Engine and Fuel Specs
Engine: Kawasaki FS600V
Type: Air cooled, 90-degree V-twin, normally aspirated petrol engine
Engine (cc): 603 cc
Horsepower: 18.5 hp
Cooling: Air cooled. Fly-wheel fan
Fuel: Unleaded fuel - maximum of 10% ethanol in fuel (see engine manufacturers specifications)
Fuel Filter: Replaceable, automotive-type
Oil Filter: Spin-on engine oil filter / Total oil capacity 1.7 litres with filter
Air Filter: Dual element with reinforced primary filter
Fuel Capacity: 17 L
Governor: Mechanical
Hydrostatic Drive System Specs
Hydrostatic Drive System: Dual hydrostatic
Drive Cooling: Transmission mounted fans
Drive Filter: Yes
Pumps: Hydro-Gear ZT-3100
Cutting Dimensions
Cutting Widths: 32" Cut Side Discharge
Cutting Height(s): 50 mm - 127 mm
