Description

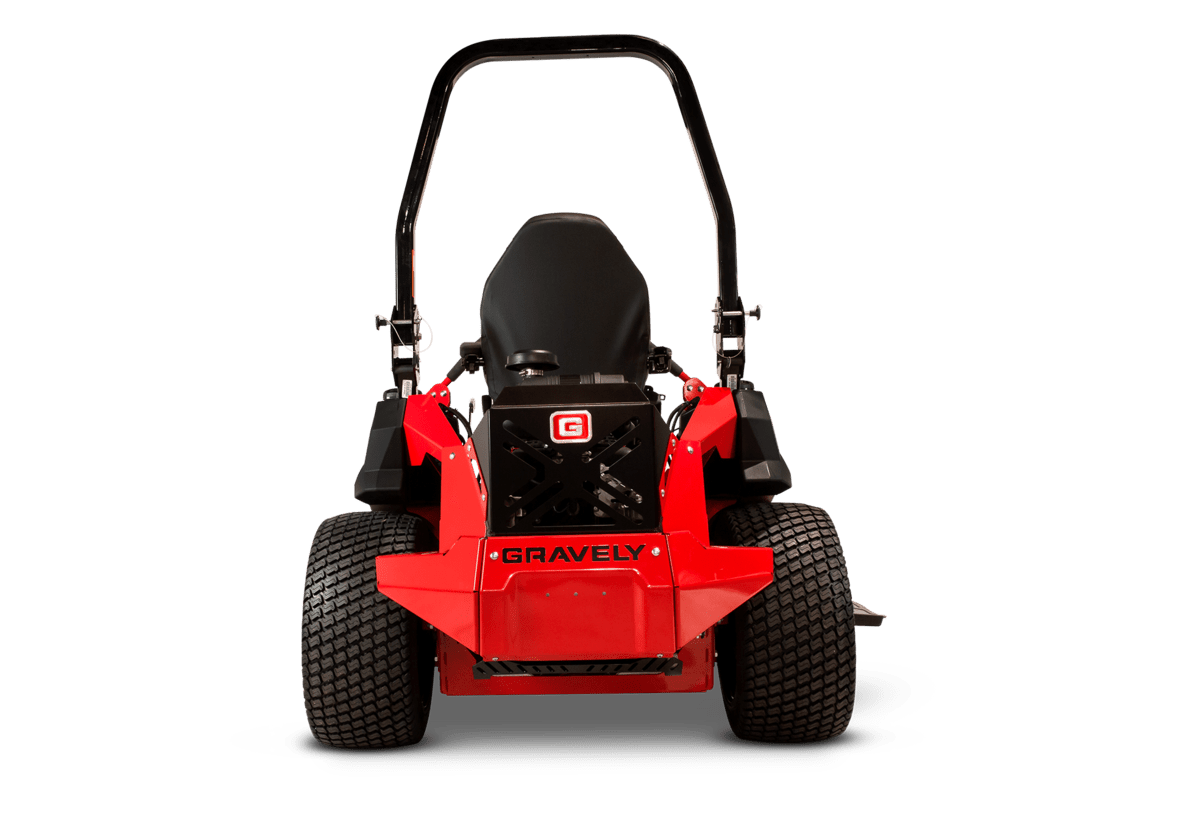

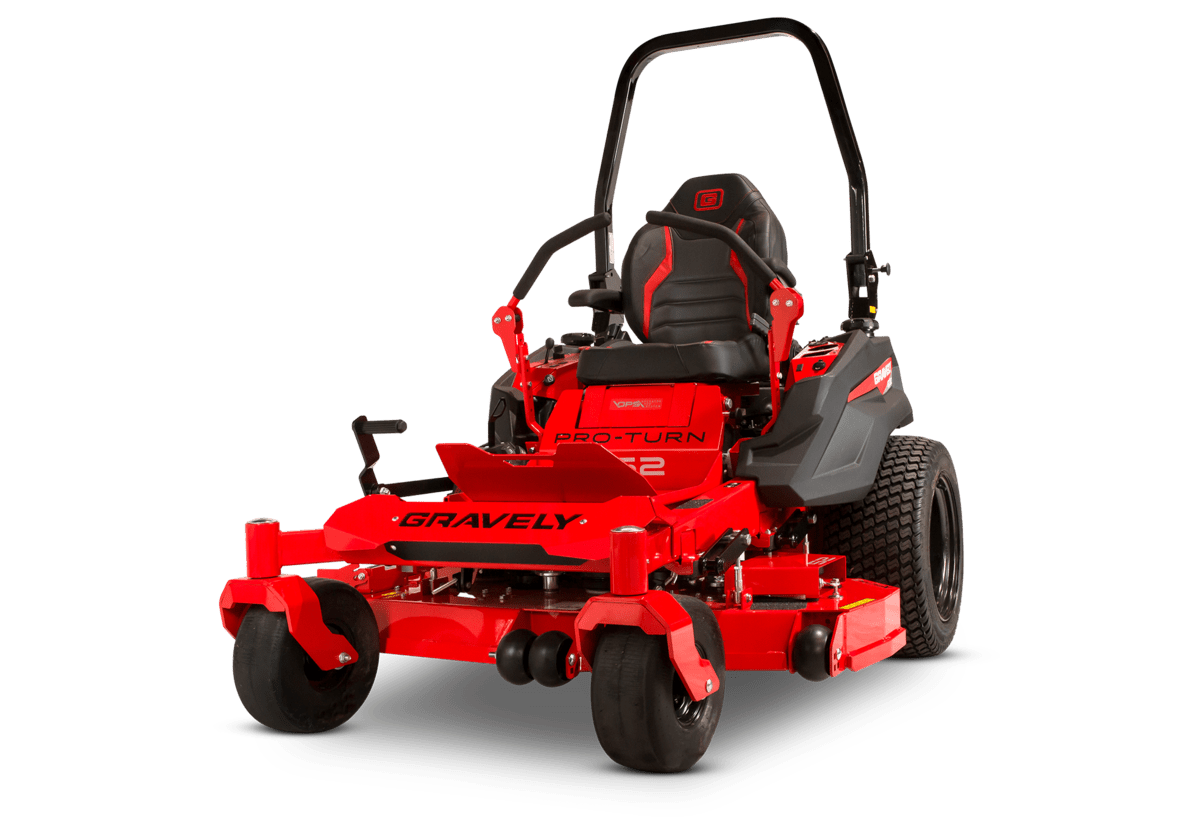

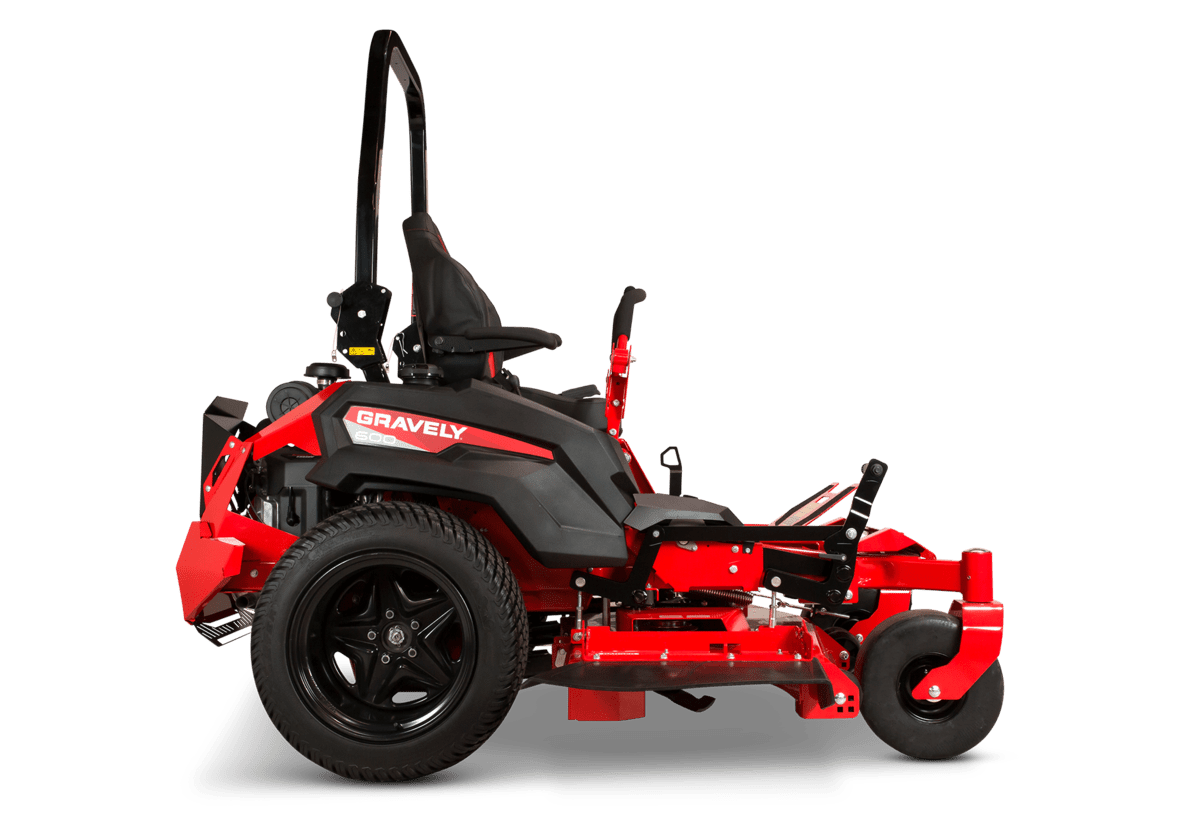

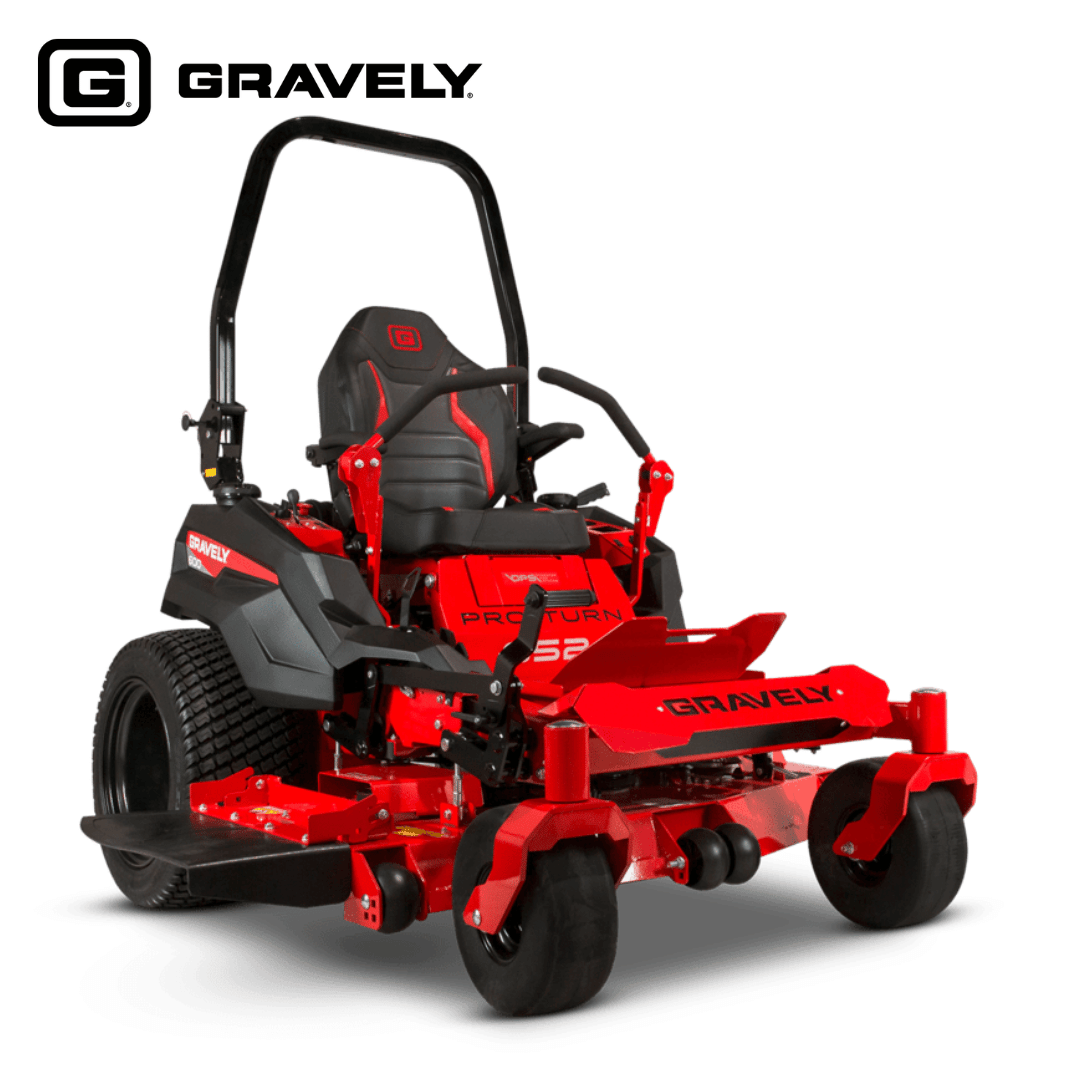

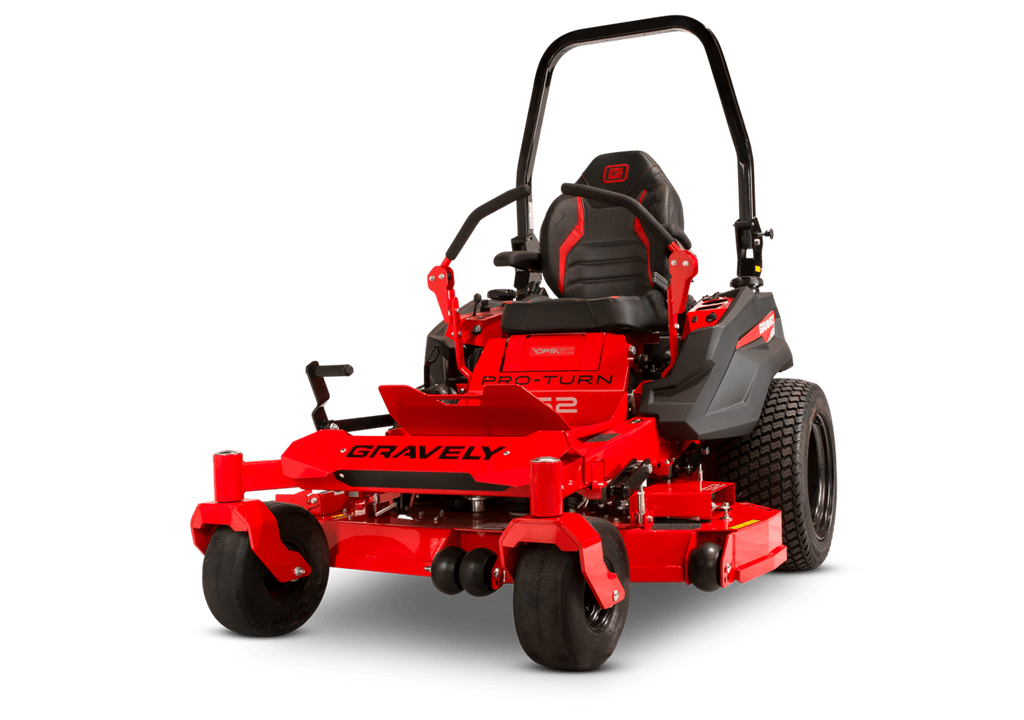

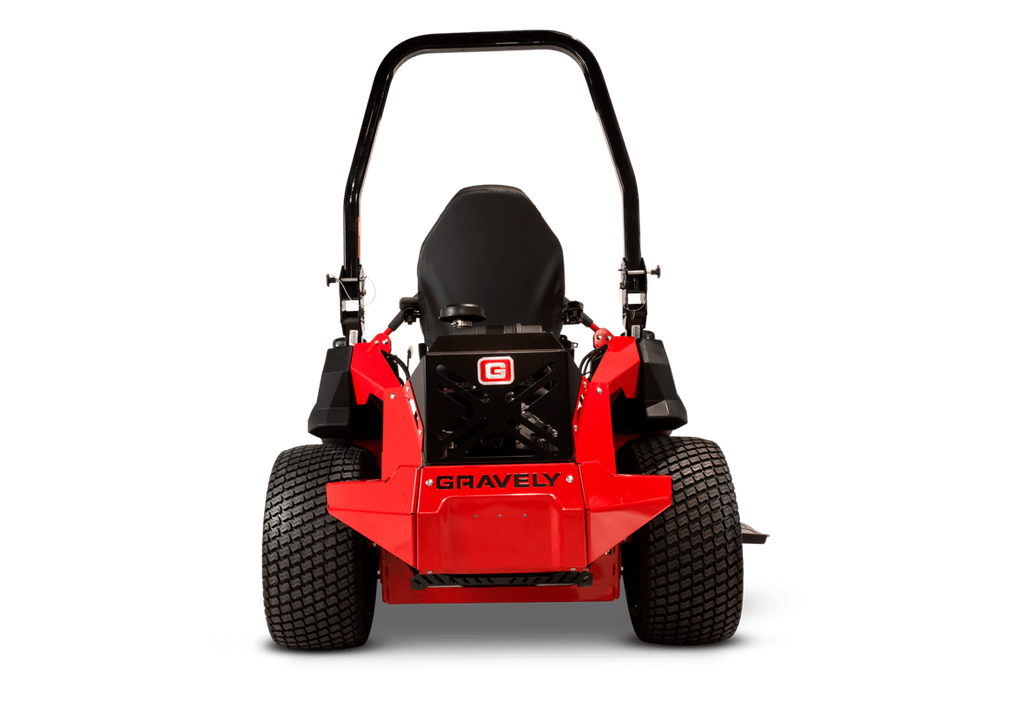

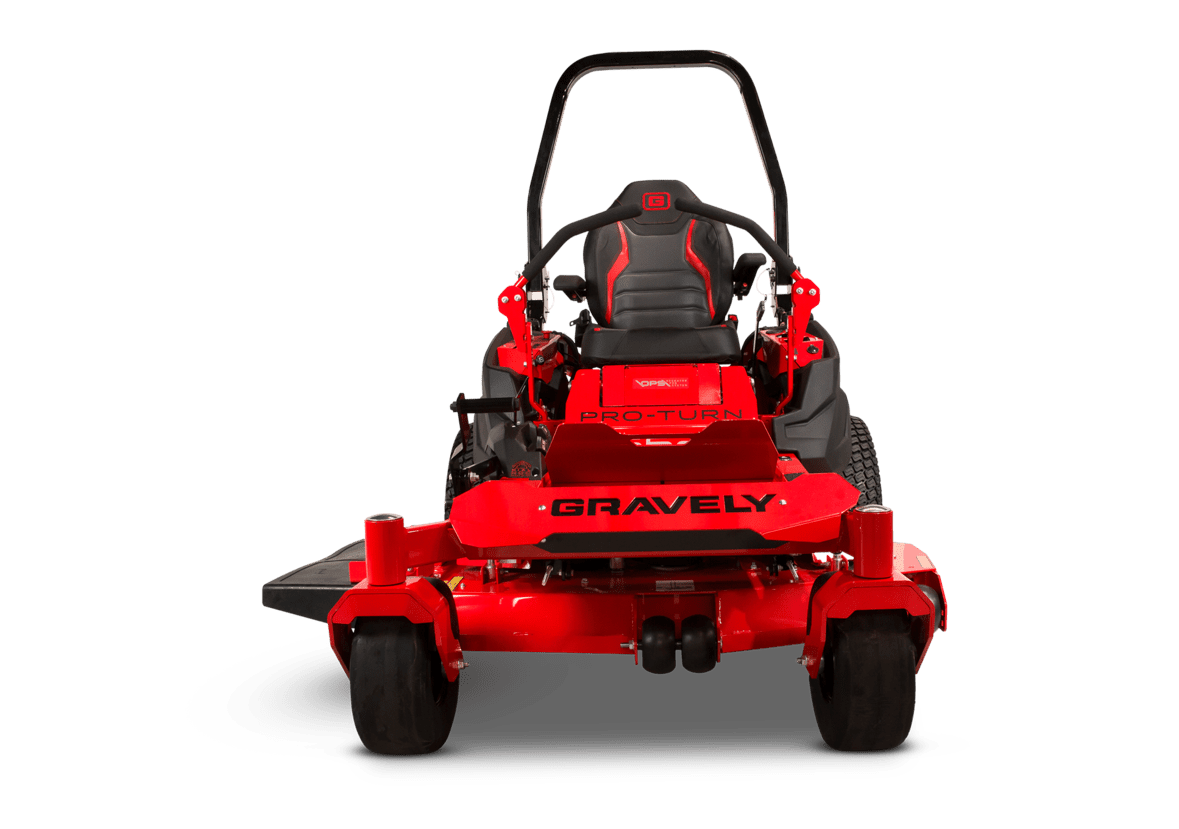

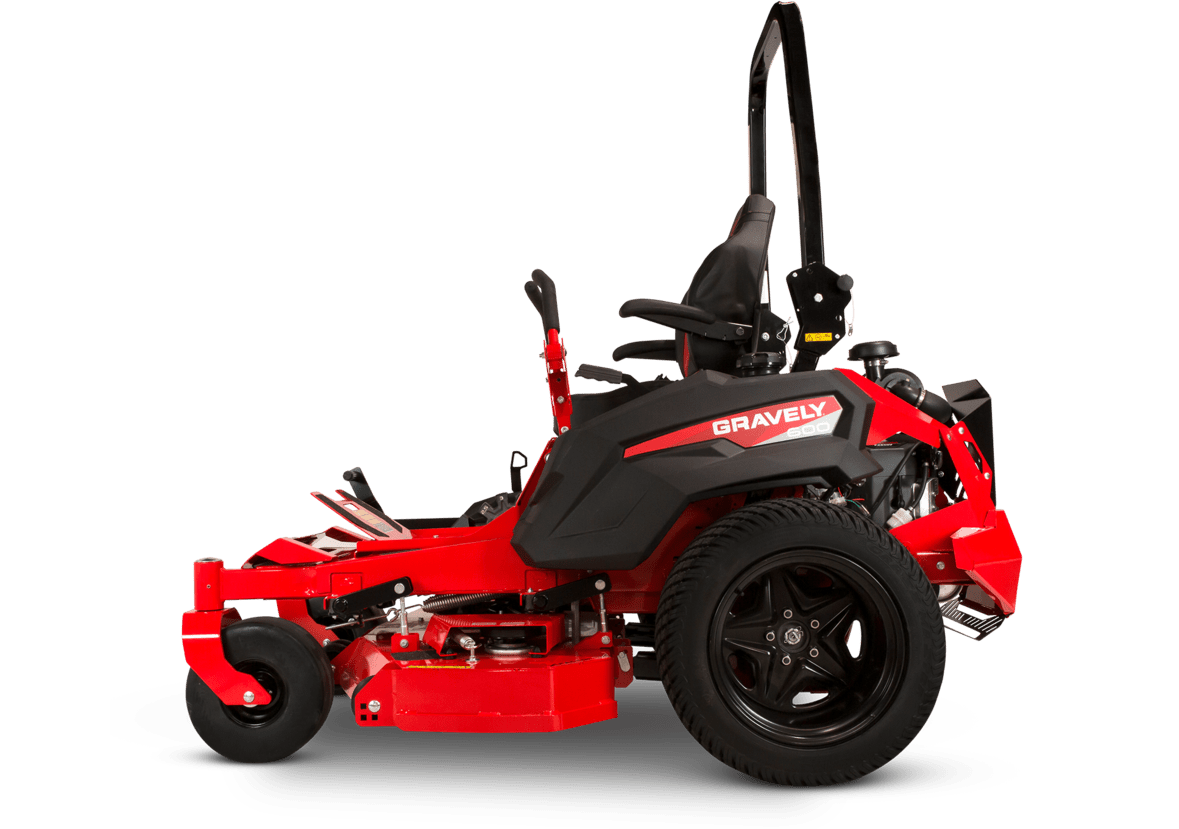

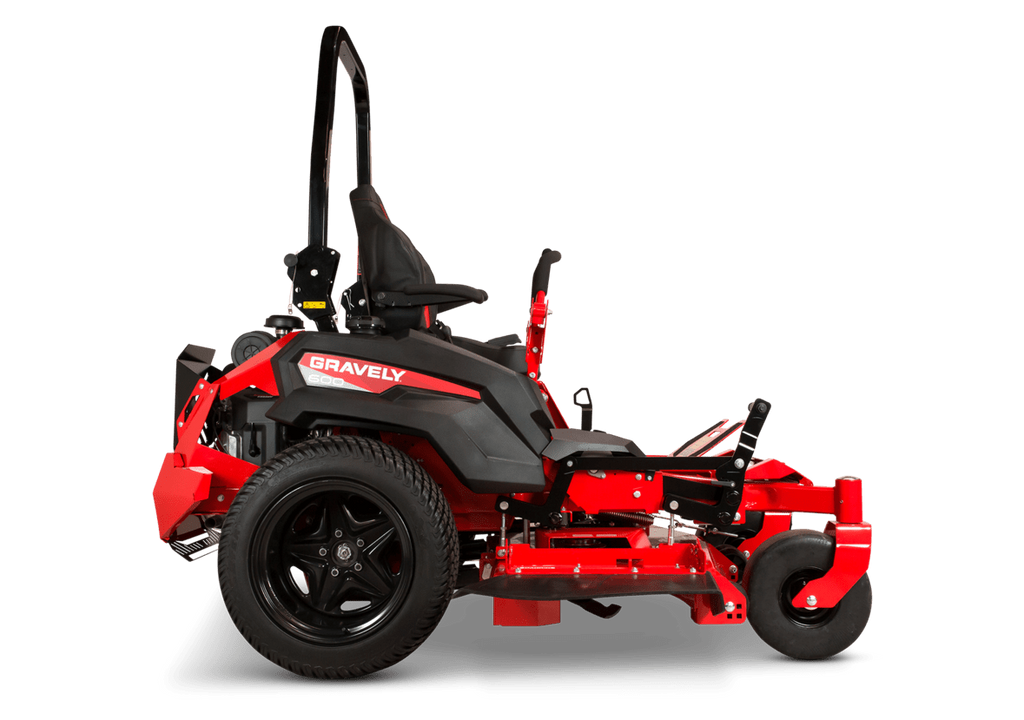

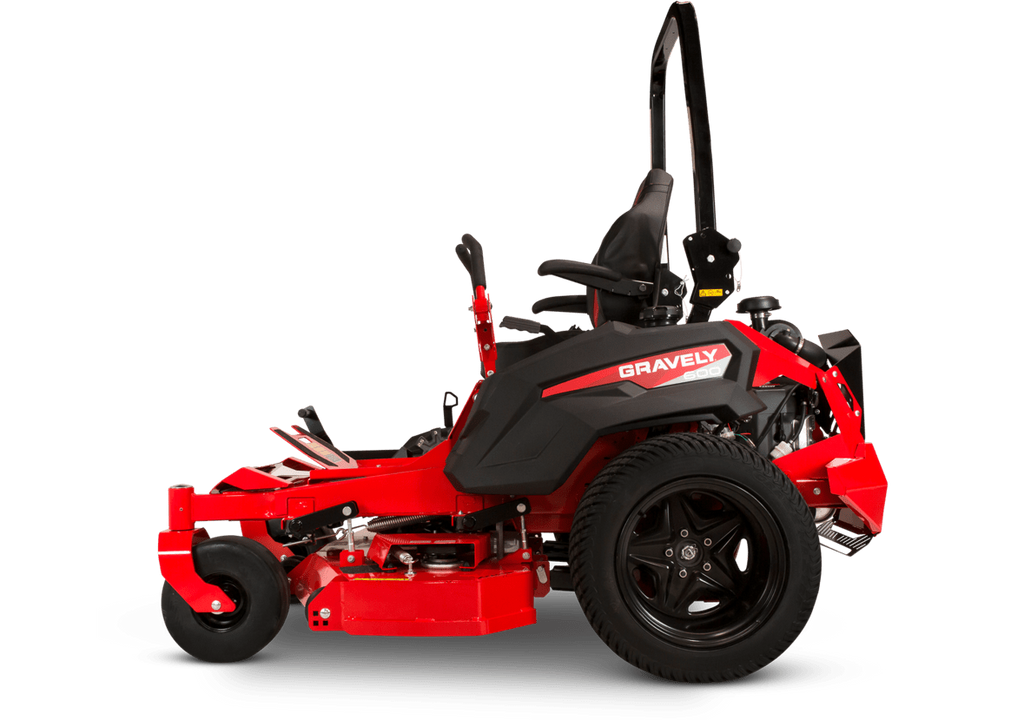

Gravely Pro-Turn 652 Zero-Turn Mower
Meet the new employee of the month for the foreseeable future.
Adding our Pro-Turn 652 to your crew is like adding a new employee to your team. This unit cuts fast and more efficiently, handling more work in less time. Gliding over grass with ease, this mower is the best of the best.
Its X-Factor 3 Deck has been completely redesigned for improved grass dispersion. This deck is constructed from 7-gauge steel to deliver years of solid performance. Both the front and rear tires of the Pro-Turn mower provide a smoother ride and more traction across varying conditions. There’s nothing like it in the industry. Impress your mates with this high quality unit.
FEATURES
-
A premium quality Kawasaki 27 hp FX850 V- twin engine featuring a multi-stage remote canister heavy duty air filter system and cast-iron cylinder liners.
-
PARKER HTG Dual hydrostatic transmission.
-
Suspension System, makes you feel like you’re part of the machine, giving you more control and comfort by removing bumps and jolts, even while mowing at higher speeds. That means less fatigue by the end of the day. It’s also specially designed to self-Dial-A-Height. This lets the operator easily adjust the deck height by quarter-inch increments.
-
Large diameter tires both the front and rear tires provide a smoother ride and more traction on varying conditions.
-
Offers 19 cutting positions, ranging from 25.4 mm – 139.7 mm, to make your lawn look its best.
-
X-FACTOR® 3 Deck. The deck has been completely redesigned for better grass dispersion. Its new look is constructed from 7-gauge steel to deliver years of solid performance.
-
Forged Aluminium cutter spindles with sealed ball bearings.
SPECIFICATIONS
Warranty Information
Domestic Warranty: 5 Years / 1500 Hour Domestic Warranty
Commercial Warranty: 5 Years / 1500 Hour Commercial Warranty
Hire/Rental Warranty: 90 Day Hire / Rental Warranty
Miscellaneous
Blade(s): 3 x Bar blades
Dimension Specs
Dry Weight: 696.2 kg
Height: 1816 mm with ROPS up, 1214 mm with ROPS down
Width: 1297 mm with chute up
Overall Length: 2108 mm
Height: 1816 mm with ROPS up, 1214 mm with ROPS down
Width: 1297 mm with chute up
Overall Length: 2108 mm
Zero Turn Mower Specs
Ground Speed - Forward: Up To 24.1 km/h
Brakes: Hand Park Brake
Seat: High back bolstered w/ suspension pod system
Construction: Frame 1" x 3" STEEL Tubular frame welded
Hour Meter: Standard
ROPS: Standard
Controls: Hand-operated choke, throttle, ignition switch, electric mower clutch, hand park brakes
Cup Holder: Yes
Deck System: Fabricated X-Factor 3
Deck Lift: Foot Operated
Deck Construction: Fabricated 7 Gauge with ¼” spindle reinforcement
Blade Tip Speed: 18,000 FPM
Blade Drive: V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life
Spindles: Forged Aluminium with sealed ball bearings
Drive System: Parker HTG 16cc Dual Hydrostatic Transmission
Steering: Twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse, and turns are all controlled with hand-operated controls
Engine and Fuel Specs
Engine: Kawasaki FX850V
Type: Air cooled, 90-degree V-twin, normally aspirated petrol engine
Engine (cc): 852 cc
Horsepower: 27 hp
Cooling: Air cooled flywheel fan
Fuel: Unleaded fuel - maximum of 10% ethanol in fuel (see engine manufacturers specifications)
Fuel Filter: Replaceable, automotive-type
Oil Filter: Spin-on engine oil filter / Total oil capacity 2.3 litres with filter
Air Filter: Multi-Stage remote canister heavy duty air filter system
Fuel Capacity: 47.9 L
Governor: Mechanical
Safety Features
Safety Features: Operator presence system connected to clutch, seat, and park brakes.
Hydrostatic Drive System Specs
Hydrostatic Drive System: Dual hydrostatic
Drive Cooling: Transmission mounted fans
Transmission: Parker HTG Transmission
Cutting Dimensions
Cutting Widths: 52" (1321 mm) side discharge
Cutting Height(s): 19 Cutting positions / 25 mm – 140 mm
