Description

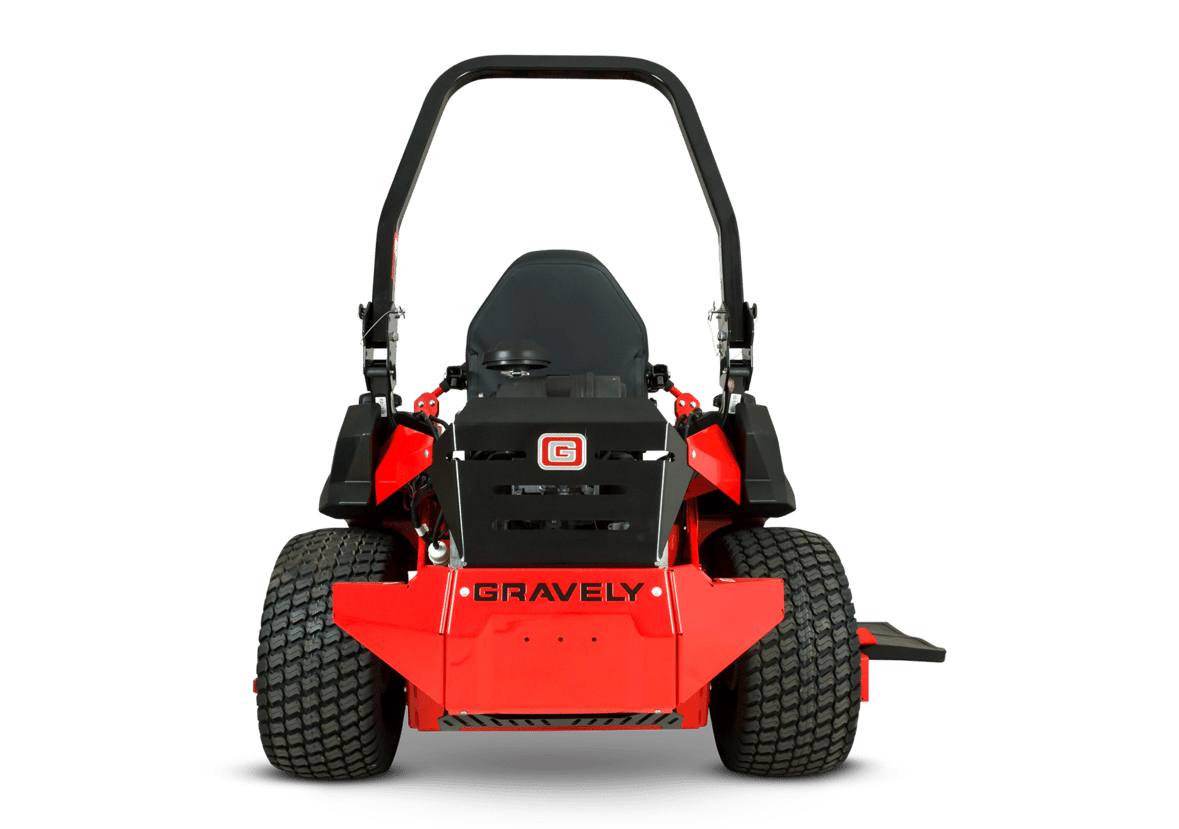

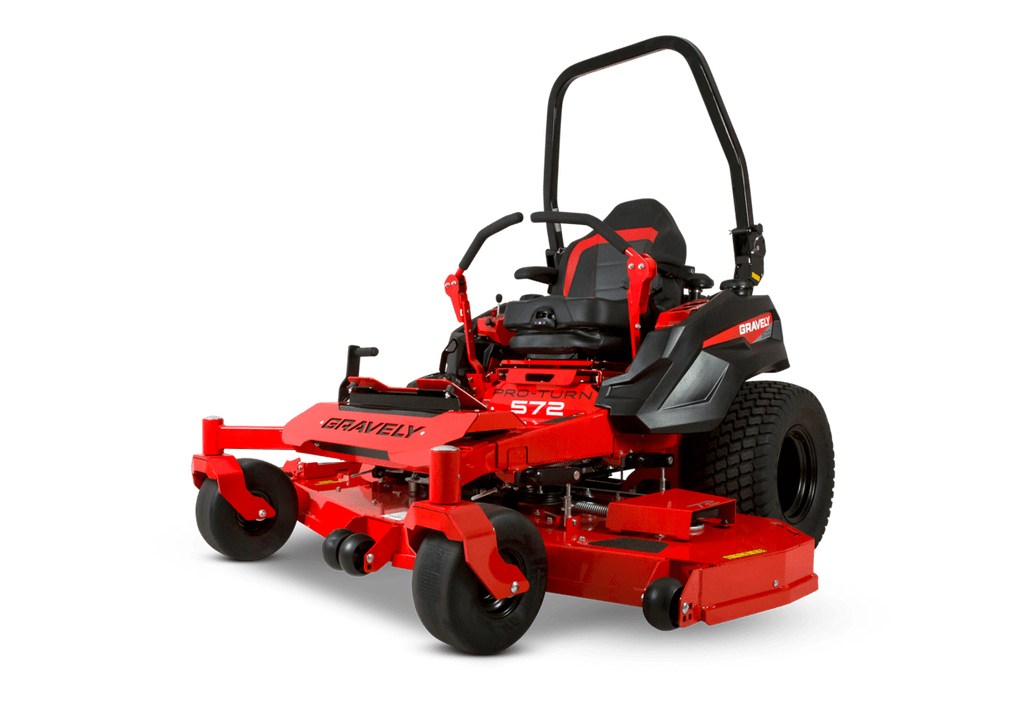

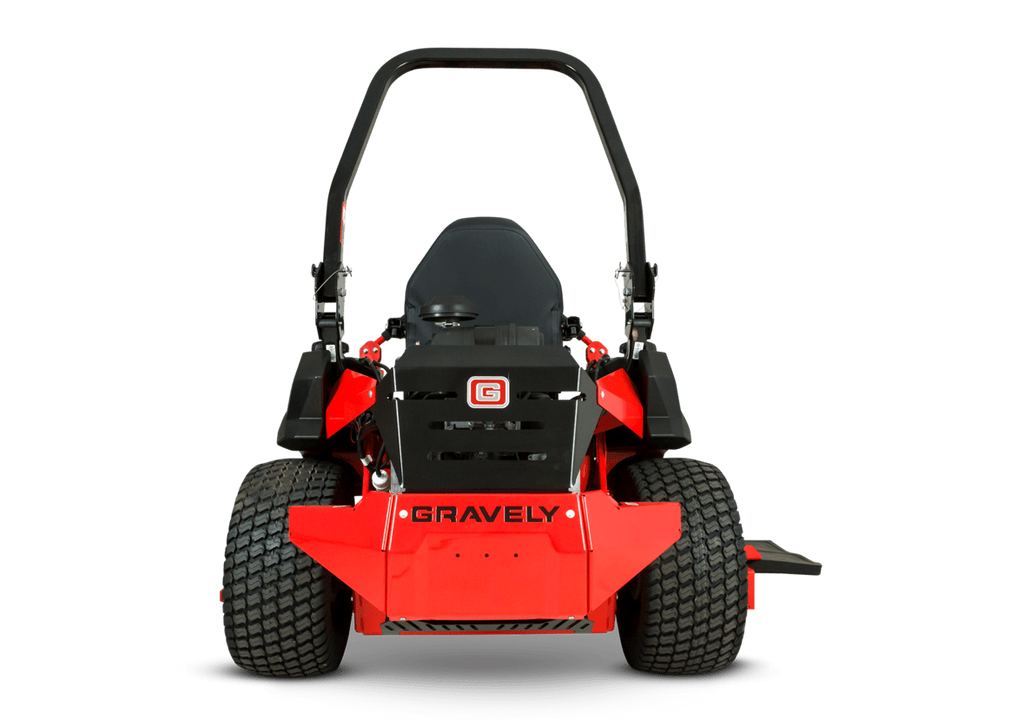

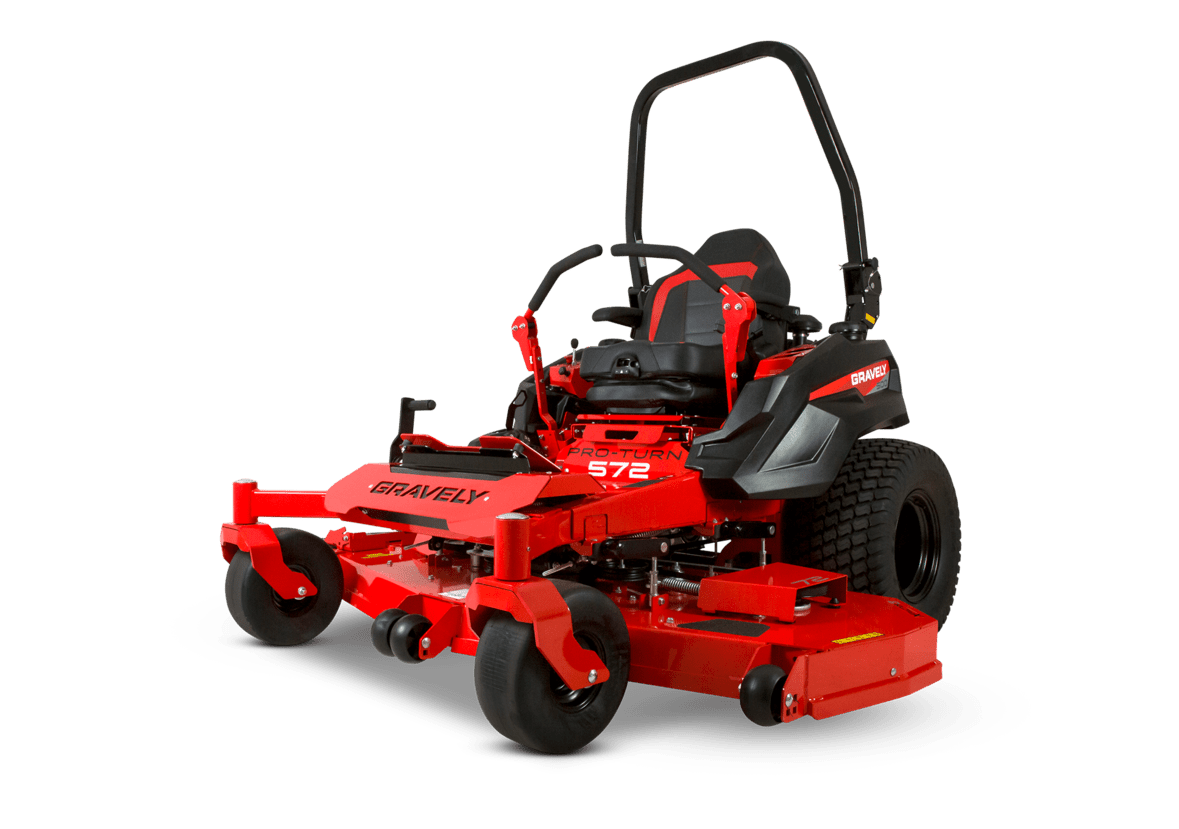

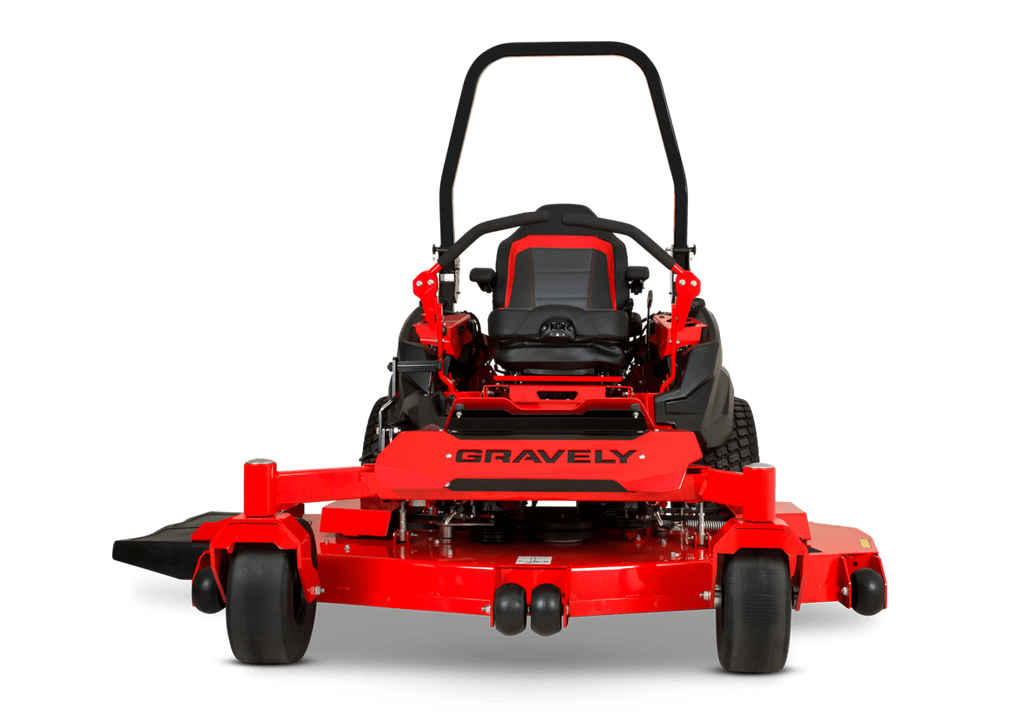

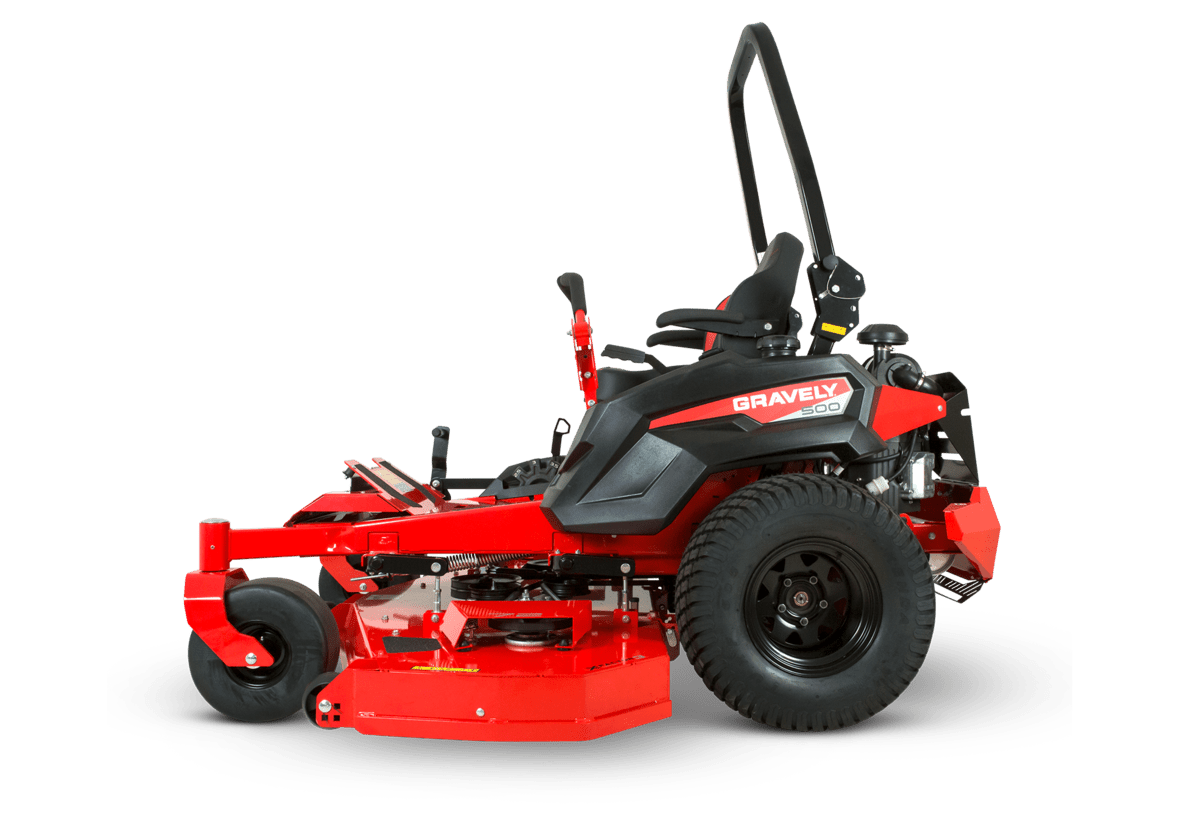

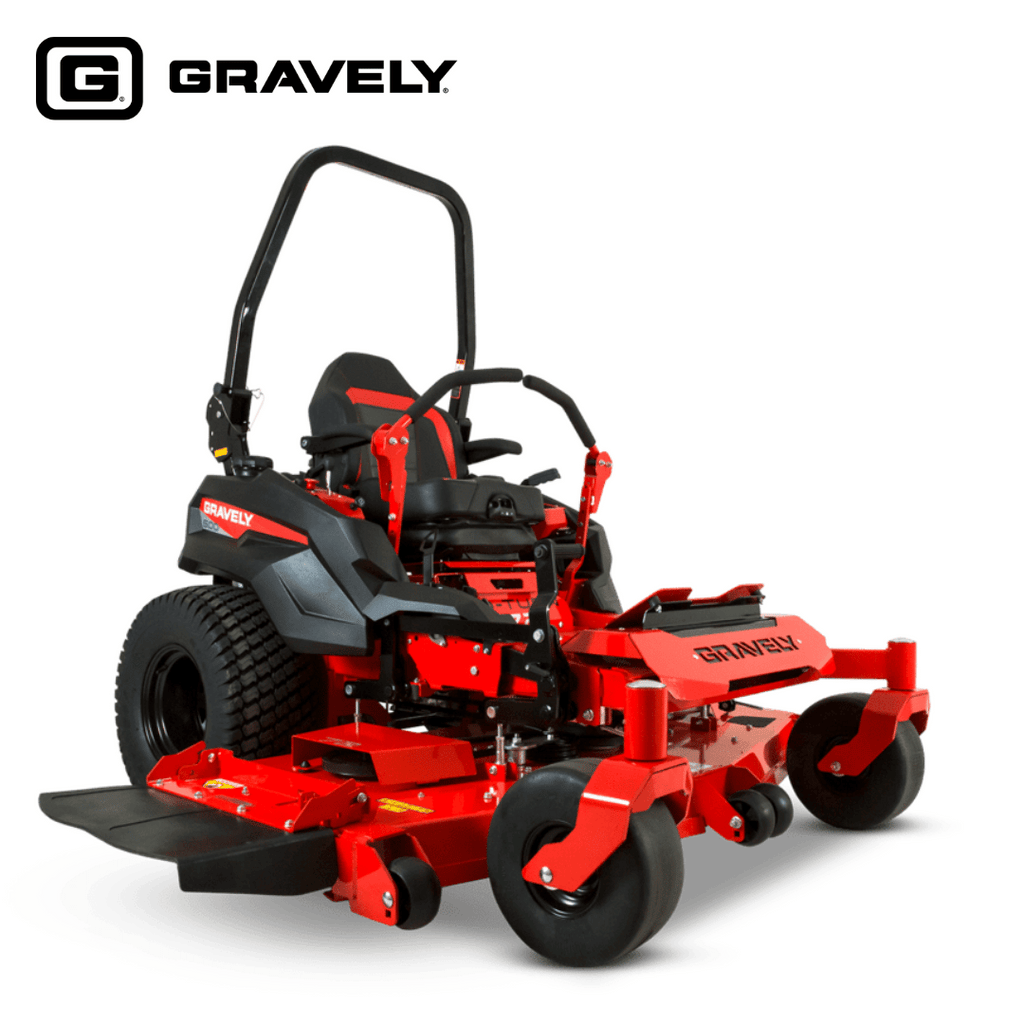

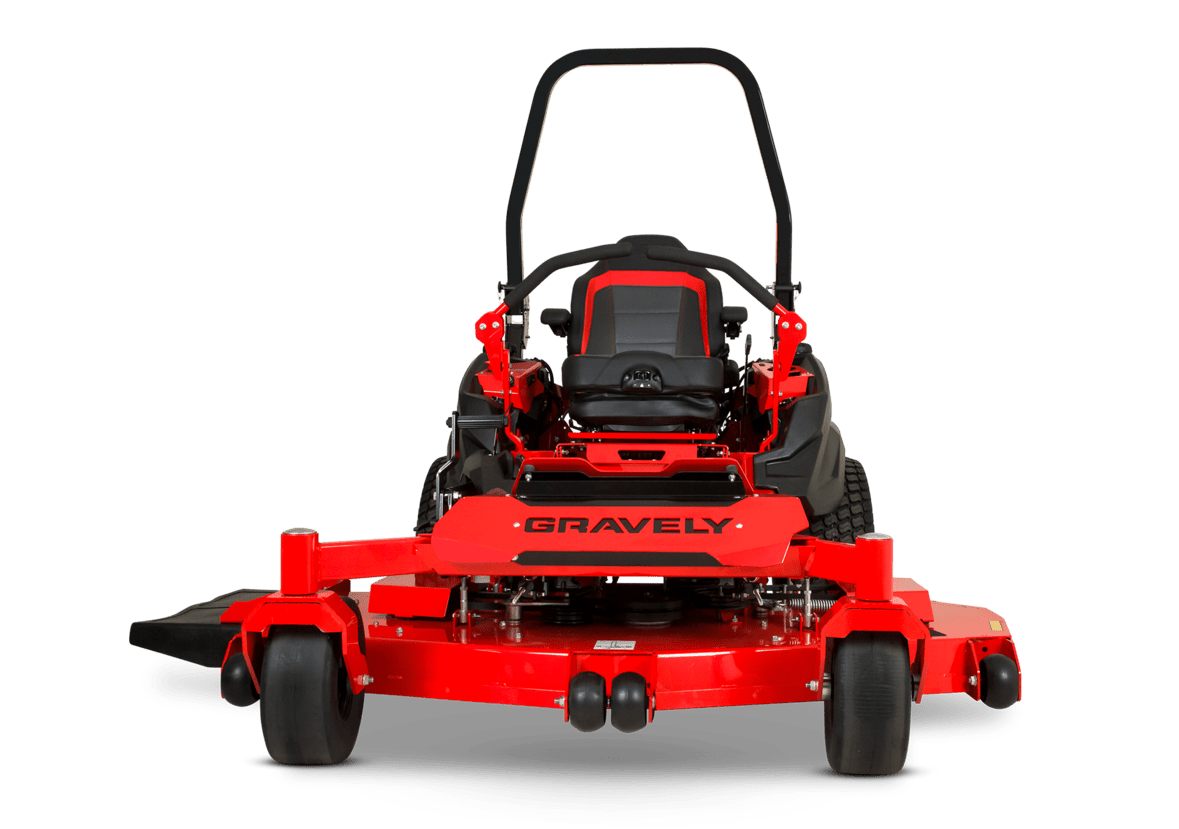

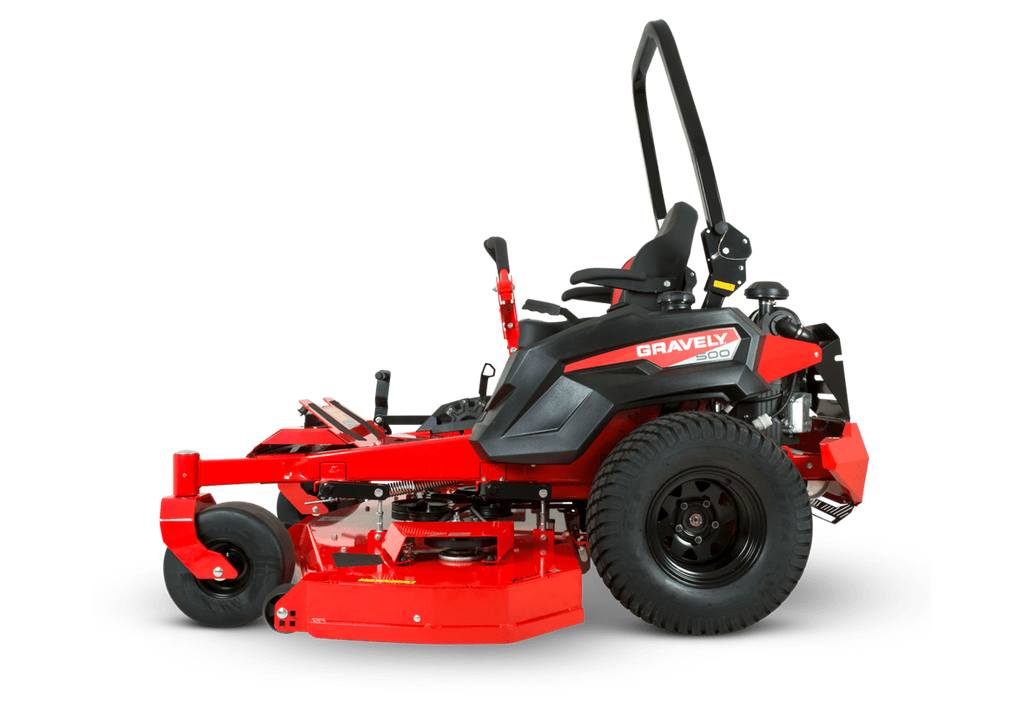

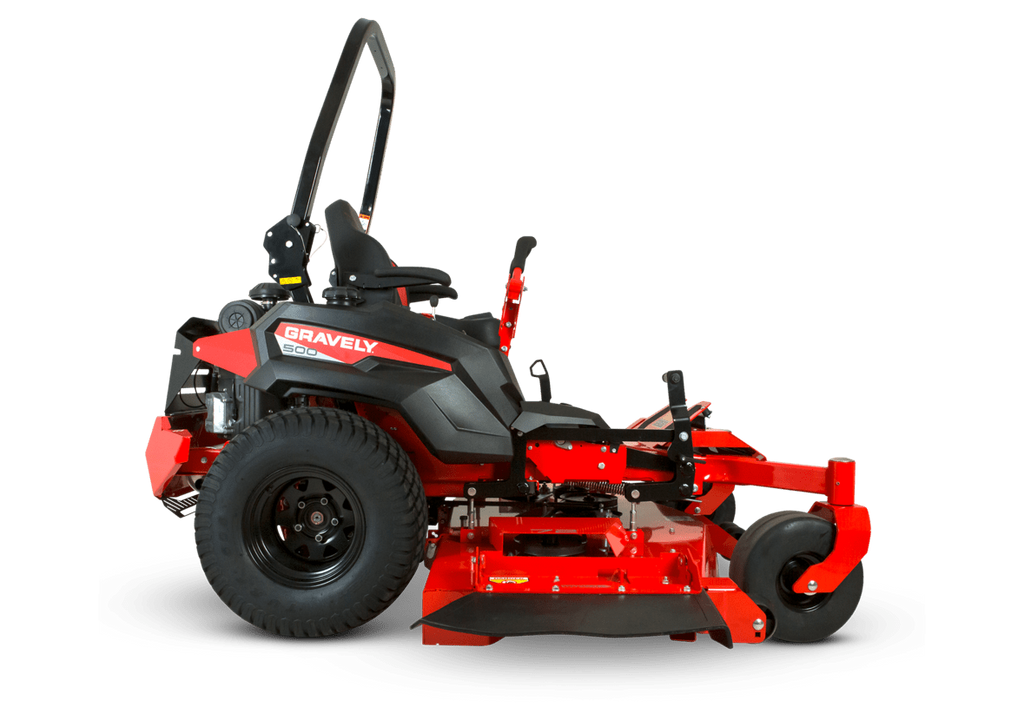

Gravely Pro-Turn 572 EFI Zero-Turn Mowers
A True Commercial Quality Mower Built for Professionals
This is the Pro-Turn 500!!
A commercial-grade mower for professionals who want rugged durability without sacrificing features and performance. Better seating, better tires, better mowing deck, and a better transmission make the PRO-TURN-500 the better choice.
FEATURES
-
A premium quality 38.5hp Kawasaki FX1000 EFI V-twin engine featuring a multi-stage remote canister heavy duty air filter system and cast-iron cylinder liners.
-
PARKER HTG Transaxles 16cc pumps.
-
Air Ride Suspension seat is adjustable and has the new addition of a low-profile seat mechanism for added comfort.
-
Fully welded tubular frame. One glance and you can see its strength and ruggedness. Its wide front rail distributes weight for superior balance. Also supports the deck lift for easy engagement. Includes a limited lifetime warranty.
-
Offers 19 cutting positions, ranging from 25 mm – 140 mm, to make your lawn look its best.
-
Foot-Operated deck lift.
-
X-FACTOR® 3 deck The deck has been completely redesigned for better grass dispersion. Its new look is constructed from 7-gauge steel to deliver years of solid performance.
-
Forged Aluminium cutter spindles with sealed ball bearings.
SPECIFICATIONS
Warranty Information
Domestic Warranty: 5 Years / 1500 Hour Domestic Warranty
Commercial Warranty: 5 Years / 1500 Hour Commercial Warranty
Hire/Rental Warranty: 90 Day Hire / Rental Warranty
Miscellaneous
Blade(s): 3 x Bar blades
Dimension Specs
Dry Weight: 716.7 kg
Height: 1930 mm ROPS up, 1214 mm ROPS down
Width: 1905 mm With chute up
Overall Length: 2133 mm
Zero Turn Mower Specs
Ground Speed - Forward: Up To 24.1 km/h
Ground Speed - Reverse: Up to 9.6 km/h
Brakes: Hand brakeSeat: High back comfort with Air Ride suspension and padded armrests
Construction: STEEL Tubular frame welded
ROPS: Foldable ROPS Standard
Controls: Hand-operated choke, throttle, ignition switch, electric mower clutch, Hand Park brakes
Cup Holder: Yes
Deck System: X-Factor® 3 Fabricated
Deck Lift: Foot-operated
Deck Construction: Fabricated 7 Gauge w' 1/4" Spindle Reinforcement
Blade Tip Speed: 18000 FPM
Blade Drive: V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life
Spindles: Forged Aluminium with sealed ball bearings
Drive System: Parker HTG 16 cc Dual Hydrostatic Transmission
Discharge Chute: High density, rubberised.
Steering: Twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse, and turns are all controlled with hand-operated controls.
Engine and Fuel Specs
Engine: Kawasaki FX1000V EFI
Type: Air cooled, 90-degree V-twin, EFI Engine
Engine (cc): 999 cc
Horsepower: 38.5 hp
Cooling: Air cooled flywheel fan
Fuel: Unleaded fuel - maximum of 10% ethanol in fuel (see engine manufacturers specifications)
Fuel Filter: Replaceable, automotive-type
Oil Filter: Spin-on engine oil filter / Total oil capacity 1.9 litres with filter
Air Filter: Multi-Stage remote canister heavy duty air filter system
Fuel Capacity: 47.3 L
Governor: Mechanical
Safety Features
Safety Features: Operator presence system connected to clutch, seat, and park brakes.
Hydrostatic Drive System Specs
Drive Cooling: Transmission mounted fans
Cutting Dimensions
Cutting Widths: 72" (1828.8 mm) cut side discharge.
Cutting Height(s): 25 mm – 140 mm
