Description

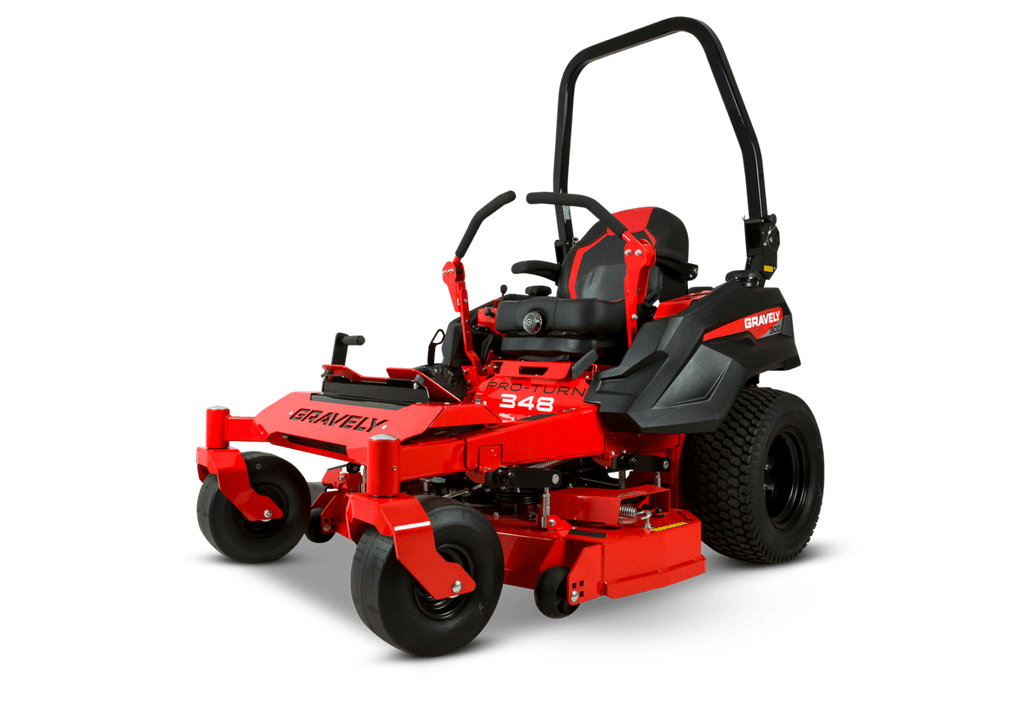

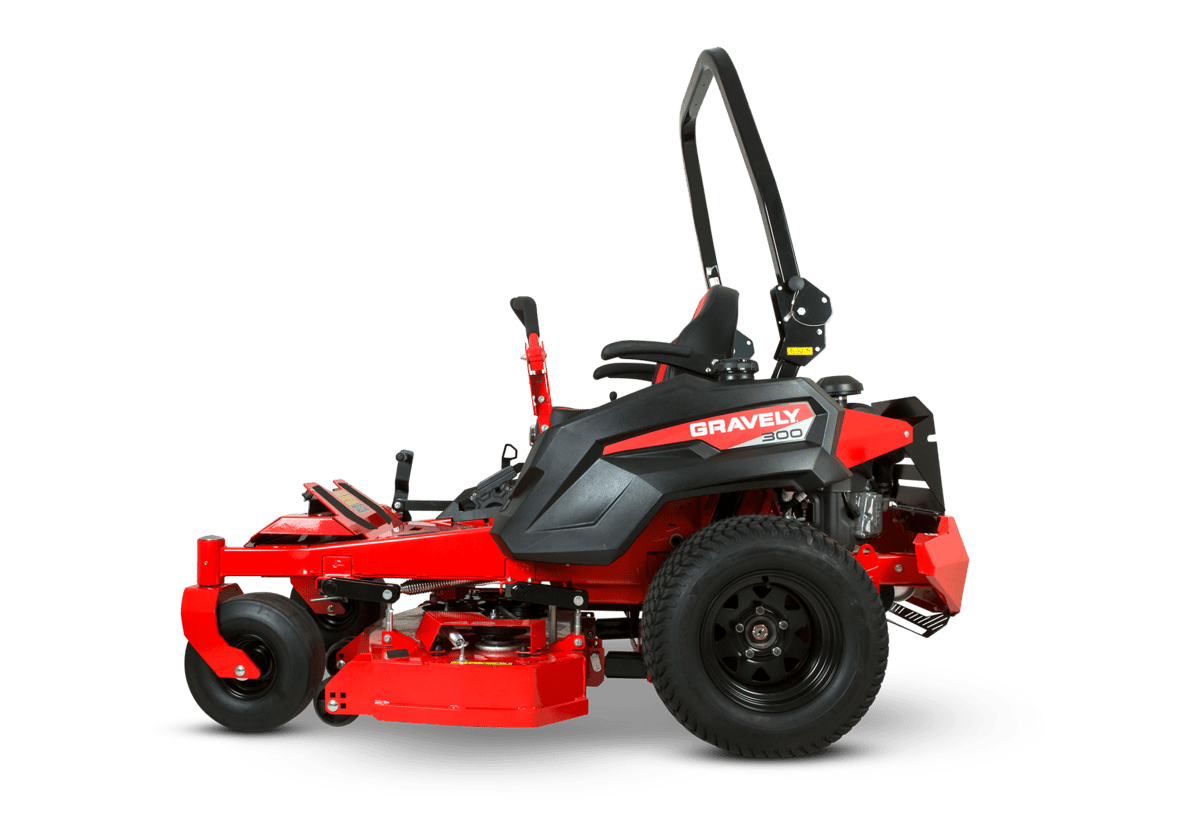

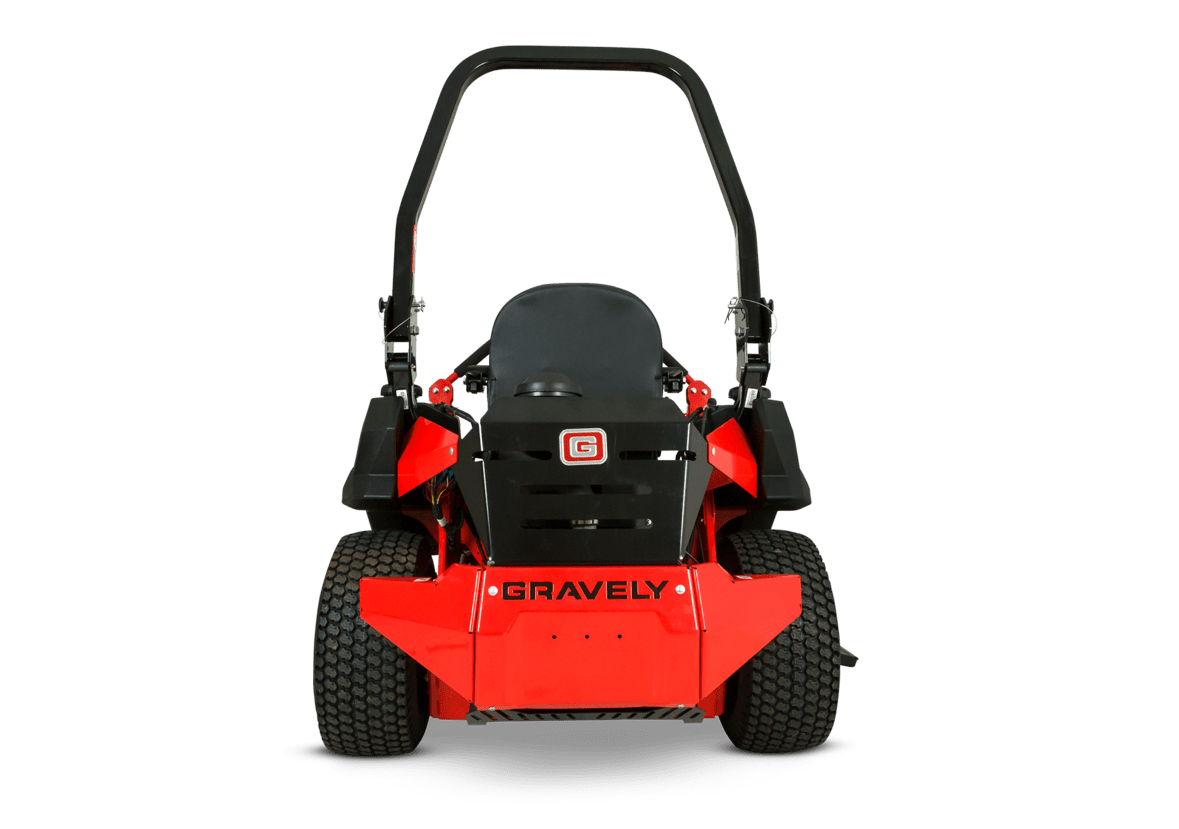

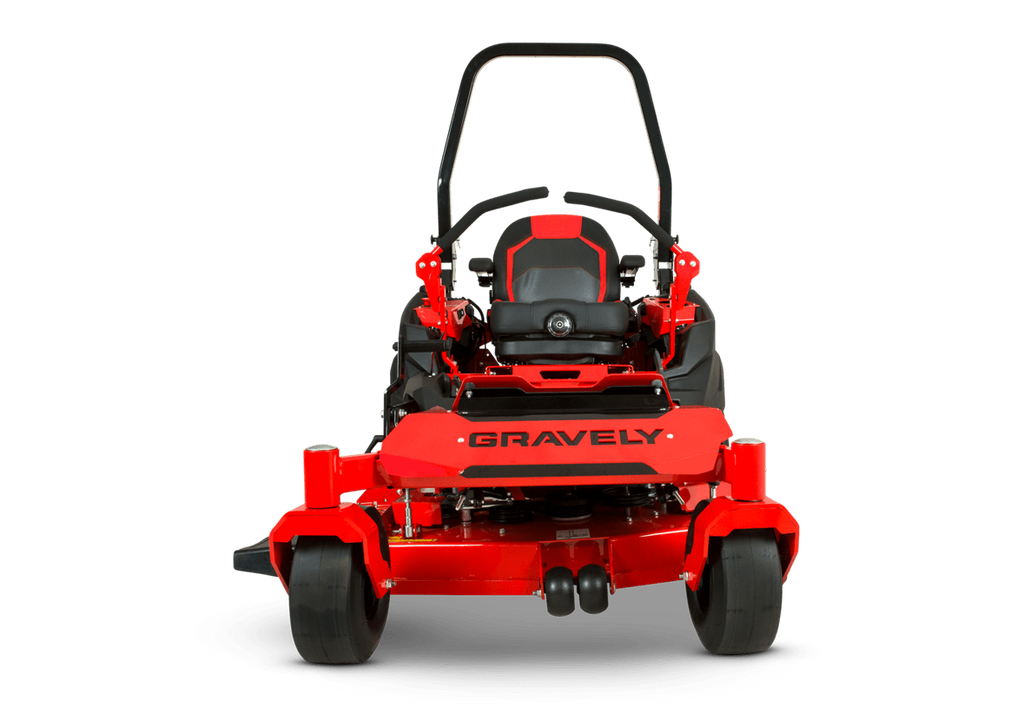

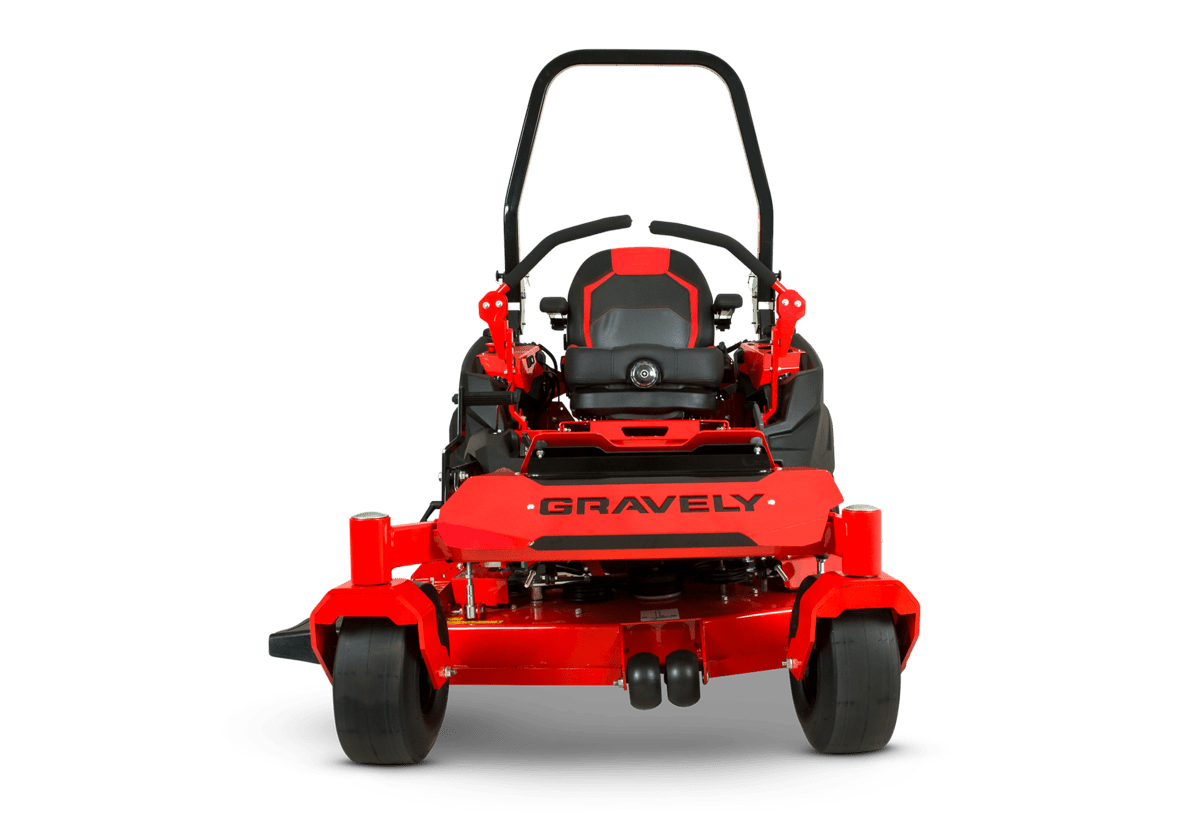

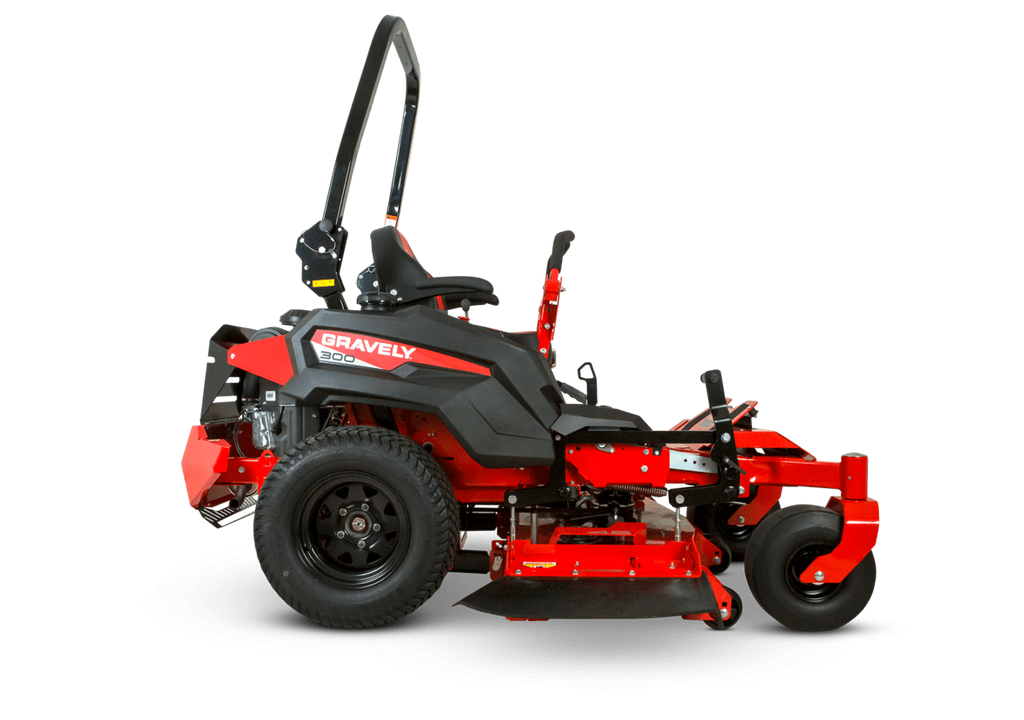

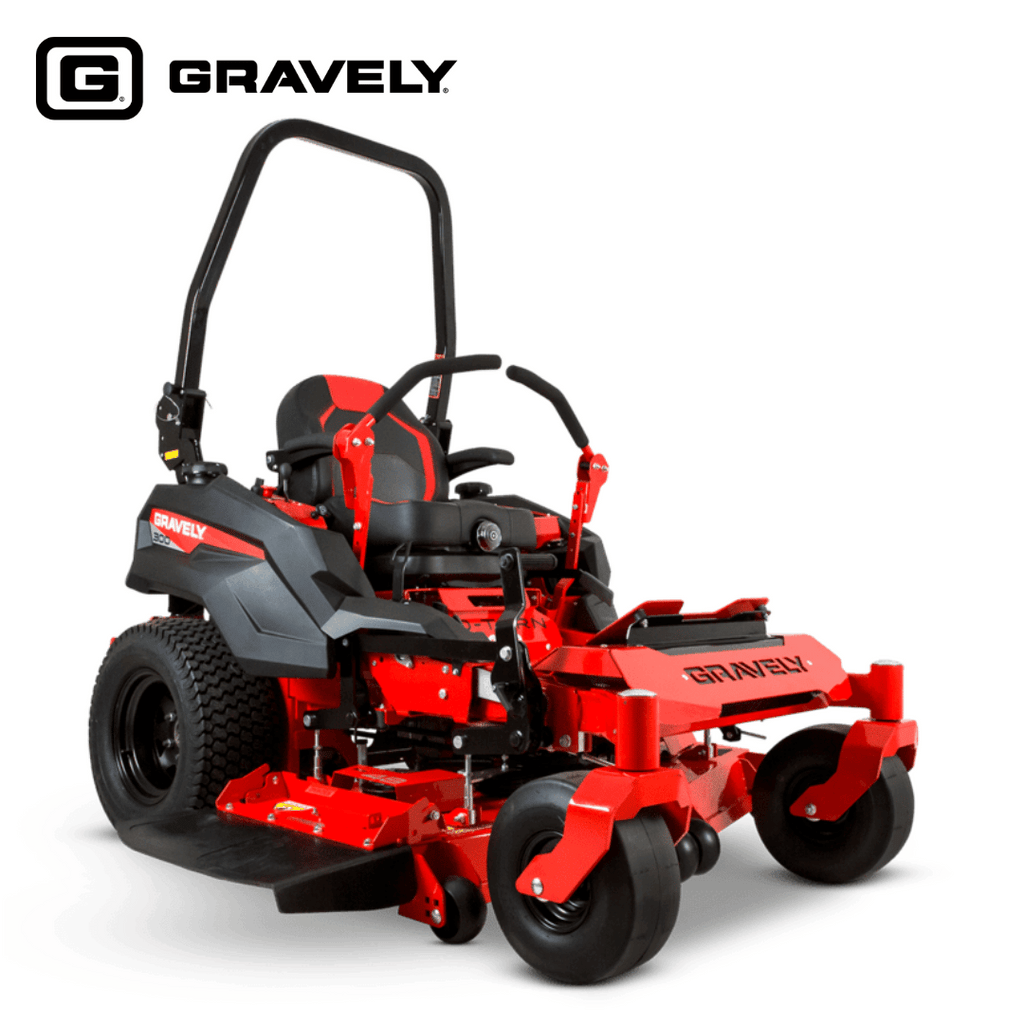

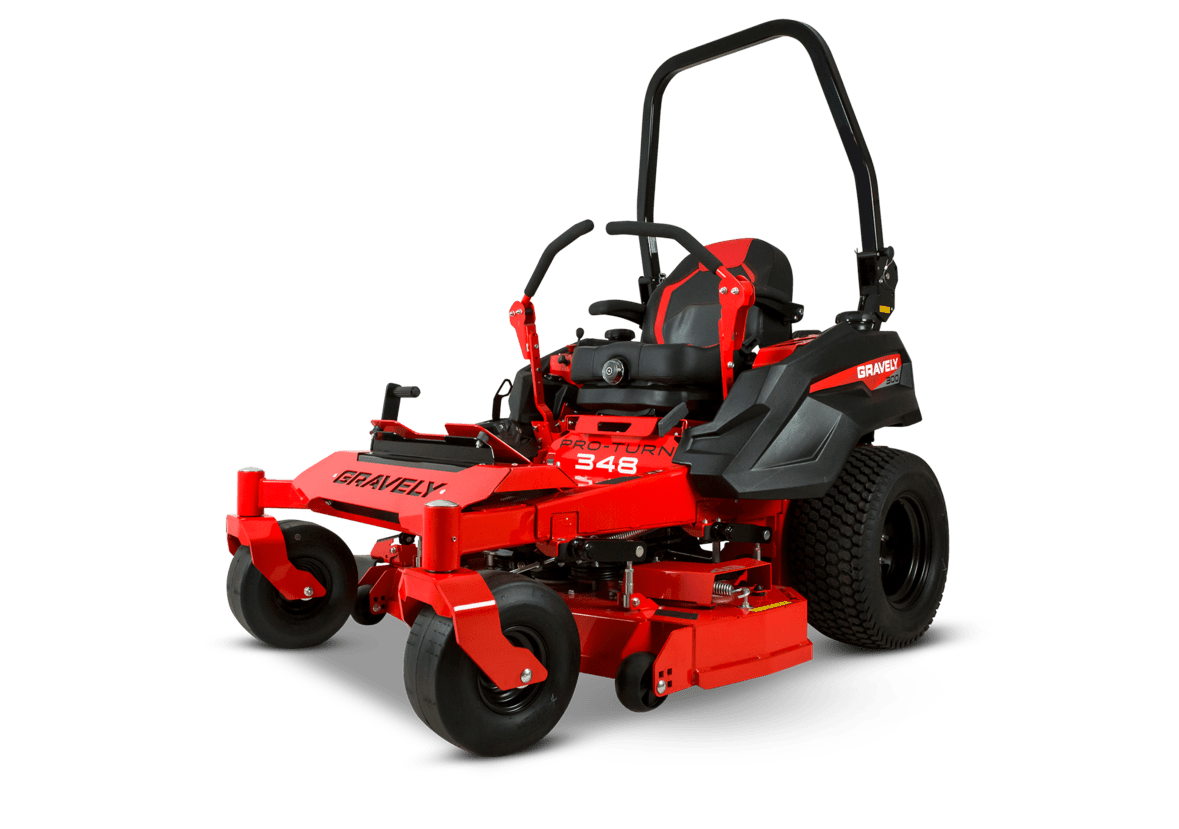

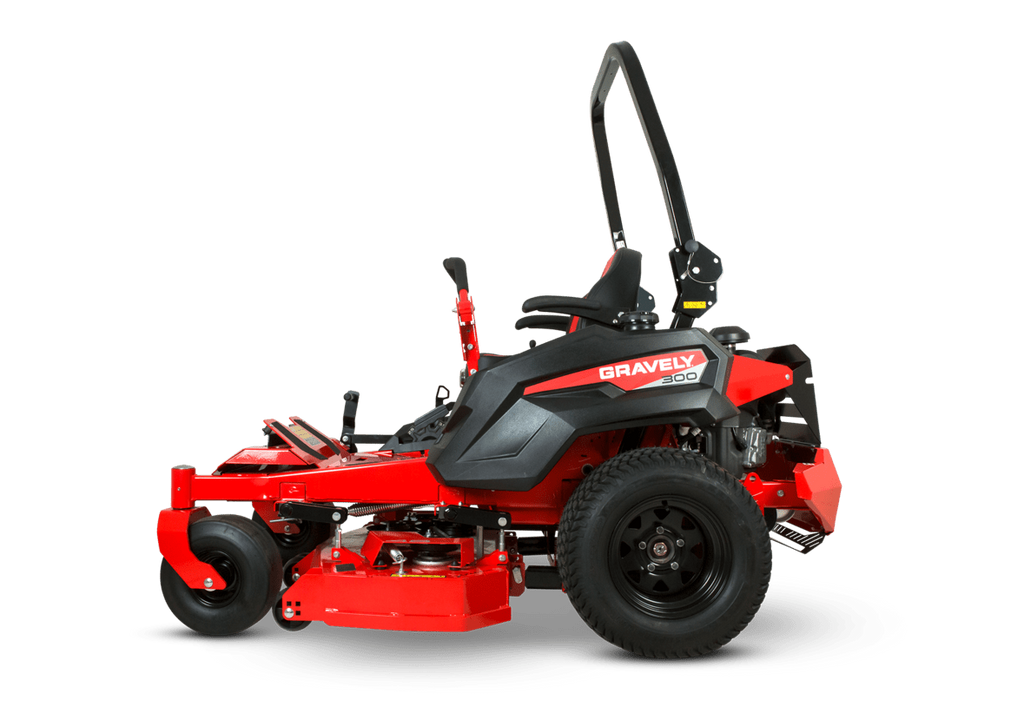

Gravely Pro-Turn 348 Zero-Turn Mower
COMFORT AND DURABILITY, YARD AFTER YARD AFTER YARD AFTER YARD...
Introducing the Pro-Turn® 300. A newly designed, hard-working mower built to keep you comfortable from dawn to dusk. This is mowing to the next level thanks to its innovative features and superior cutting performance.
FEATURES
-
A premium quality 25.5 hp Kawasaki FX801V V- twin engine featuring a multi-stage remote canister heavy duty air filter system and cast-iron cylinder liners.
-
PARKER HTJ Transaxles 12cc pumps.
-
Suspension seat is adjustable and has the new addition of a low-profile seat mechanism for added comfort.
-
Fully welded tubular frame. One glance and you can see its strength and ruggedness. Its wide front rail distributes weight for superior balance. Also supports the deck lift for easy engagement. Includes a limited lifetime warranty.
-
Cut selection Offers 19 cutting positions, ranging from 25.4 mm – 139.7 mm, to make your lawn look its best.
-
Foot-Operated deck lift.
-
X-FACTOR® 3 deck - the deck has been completely redesigned for better grass dispersion. Its new look is constructed from 7-gauge steel to deliver years of solid performance.
-
Forged aluminium cutter spindles with sealed ball bearings.
-
Productivity - 5.7 acres per hour.
SPECIFICATIONS
Warranty Information
Domestic Warranty: 5 Year / 1250 Hour Domestic Warranty
Commercial Warranty: 5 Year / 1250 Hour Commercial Warranty
Miscellaneous
Blade(s): 3 x Bar blades
Dimension Specs
Dry Weight: 560.1 kg
Height: ROPS up 1930.4 mm, ROPS down 1214.1 mm
Width: 1296 mm With chute up
Overall Length: 2108 mm
Zero Turn Mower Specs
Ground Speed - Forward: Up To 17.7 km/h
Brakes: Hand brake
Seat: High back comfort with suspension and padded armrests
Construction: STEEL Tubular frame welded
ROPS: Foldable ROPS Standard
Controls: Hand-operated choke, throttle, ignition switch, electric mower clutch, Hand Park brakes
Cup Holder: Yes
Deck System: X-Factor® 3 Fabricated
Deck Lift: Foot-operated
Deck Construction: Fabricated 7 Gauge w' 1/4" Spindle Reinforcement
Blade Tip Speed: 18000 FPM
Blade Drive: V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life
Spindles: Forged Aluminium with sealed ball bearings
Drive System: Parker HTJ 12cc Dual Hydrostatic Transmission
Discharge Chute: High density, rubberised
Steering: Twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse, and turns are all controlled with hand-operated controls.
Engine and Fuel Specs
Engine: Kawasaki FX801V
Type: Air cooled, 90-degree V-twin, normally aspirated petrol engine
Engine (cc): 852 cc
Horsepower: 25.5 hp
Cooling: Air cooled flywheel fan
Fuel: Unleaded fuel - maximum of 10% ethanol in fuel (see engine manufacturers specifications)
Fuel Filter: Replaceable, automotive-type
Oil Filter: Spin-on engine oil filter / Total oil capacity 2.1 litres with filter
Air Filter: Multi-Stage remote canister heavy duty air filter system
Fuel Capacity: 47.3 L
Governor: Mechanical
Safety Features
Safety Features: Operator presence system connected to clutch, seat, and park brakes.
Hydrostatic Drive System Specs
Drive Cooling: Transmission mounted fans
Cutting Dimensions
Cutting Widths: 48" (1219 mm) cut side discharge.
Cutting Height(s): 25 mm – 139 mm
