Description

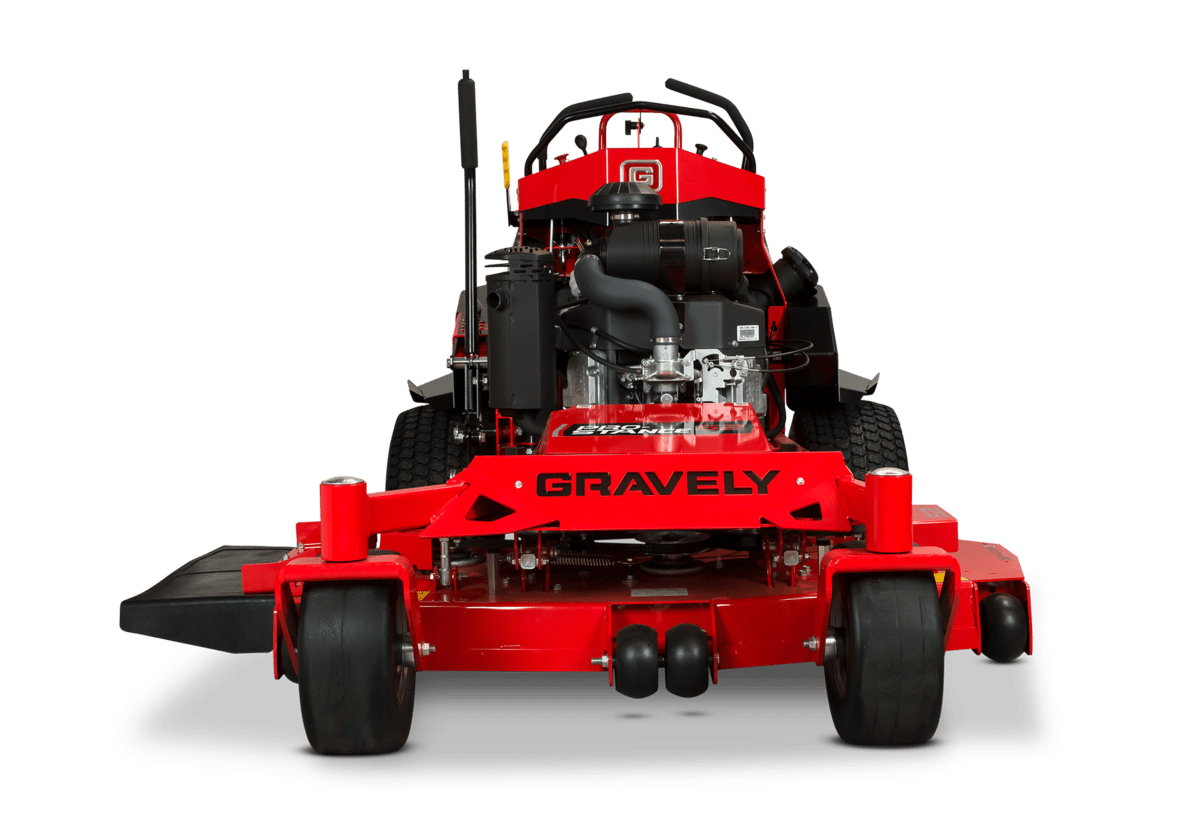

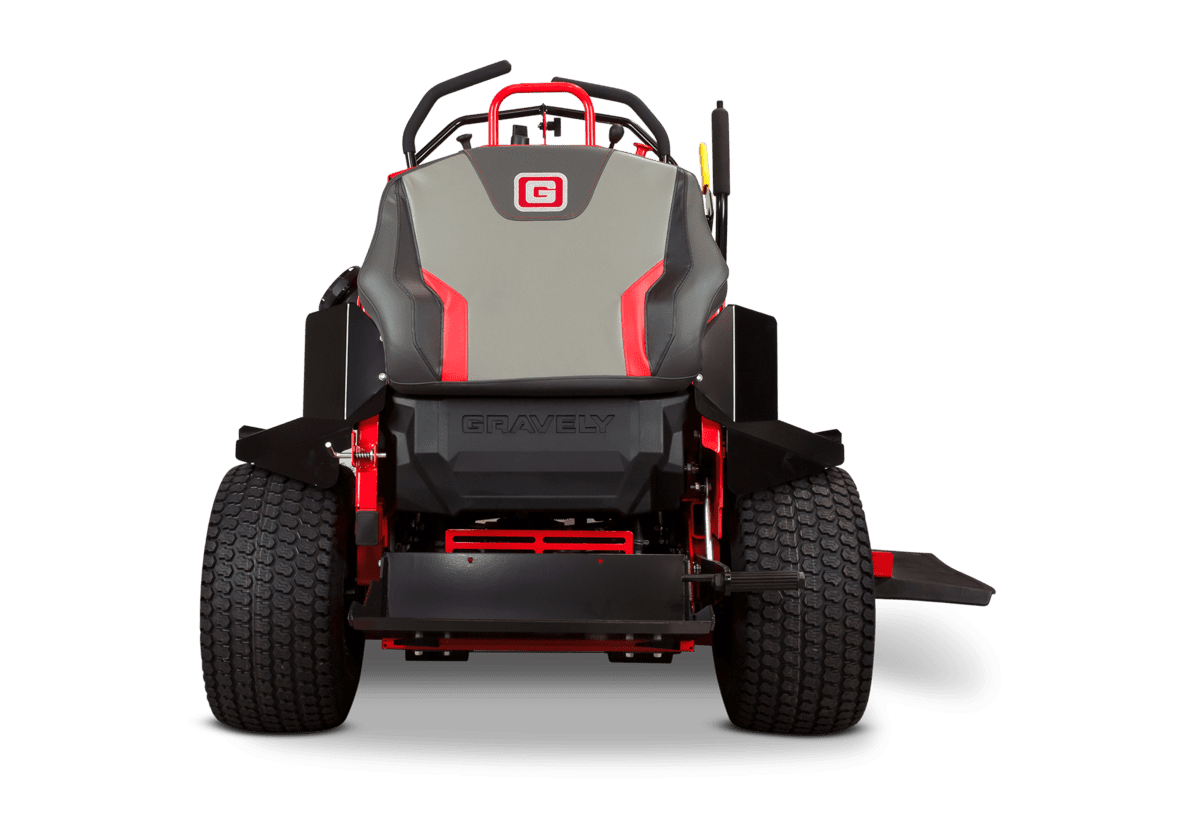

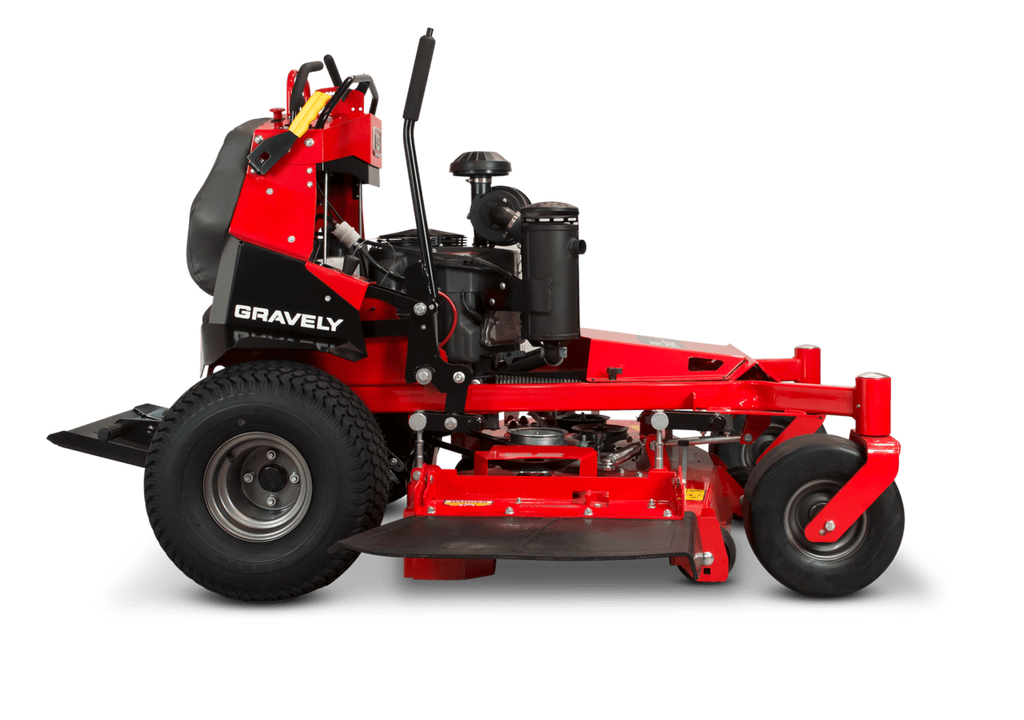

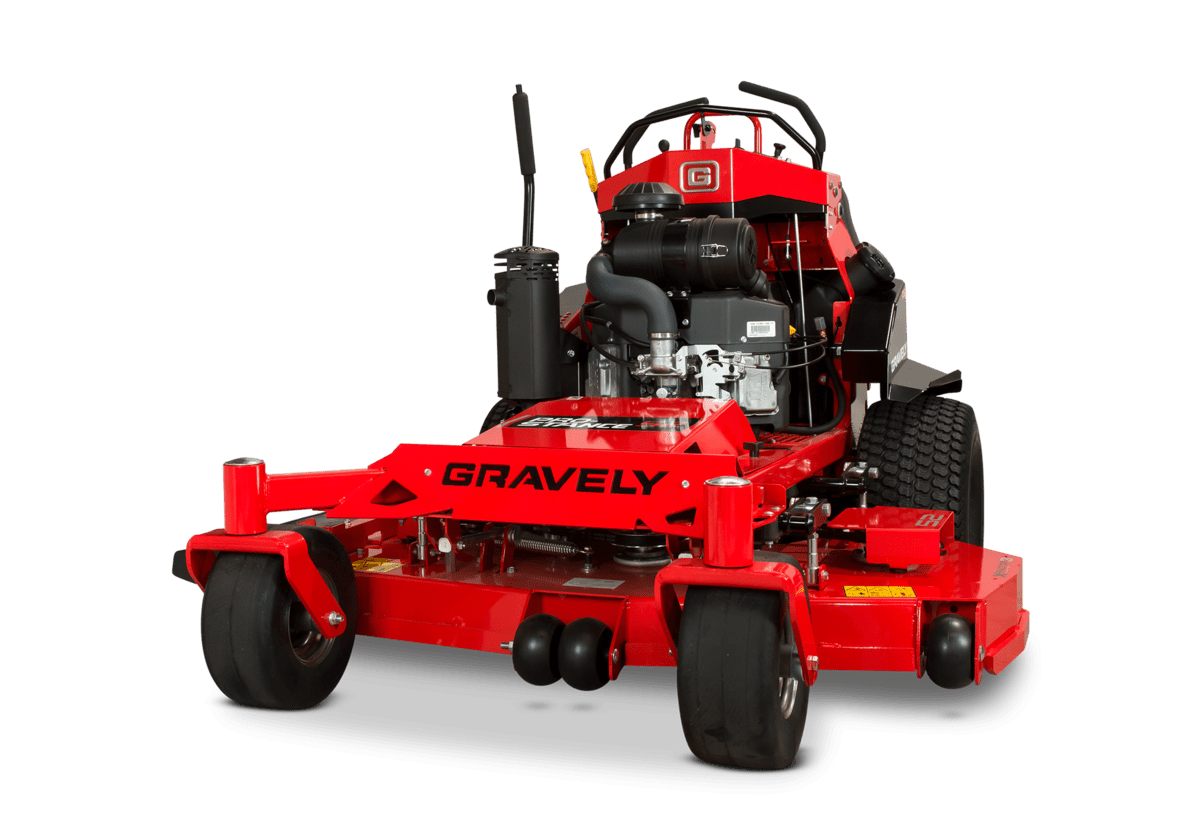

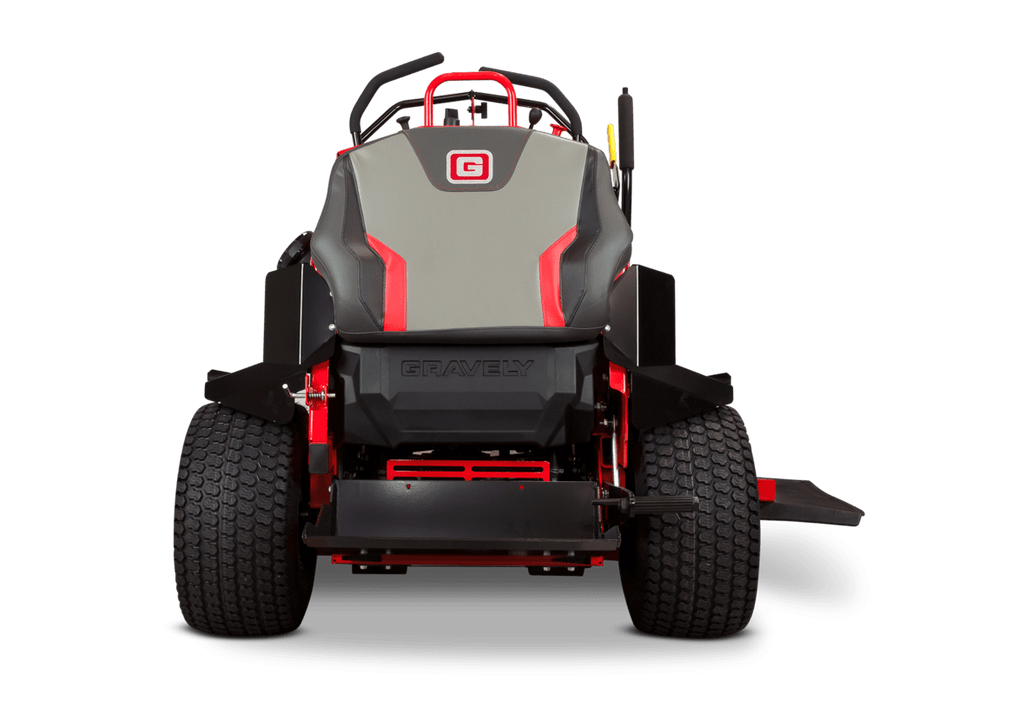

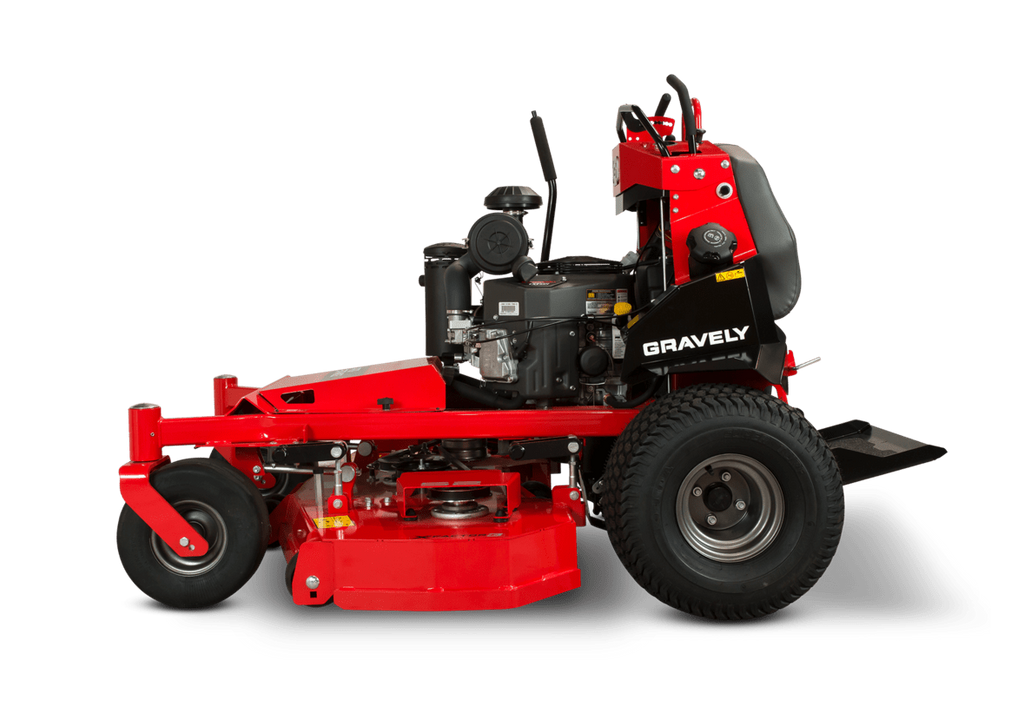

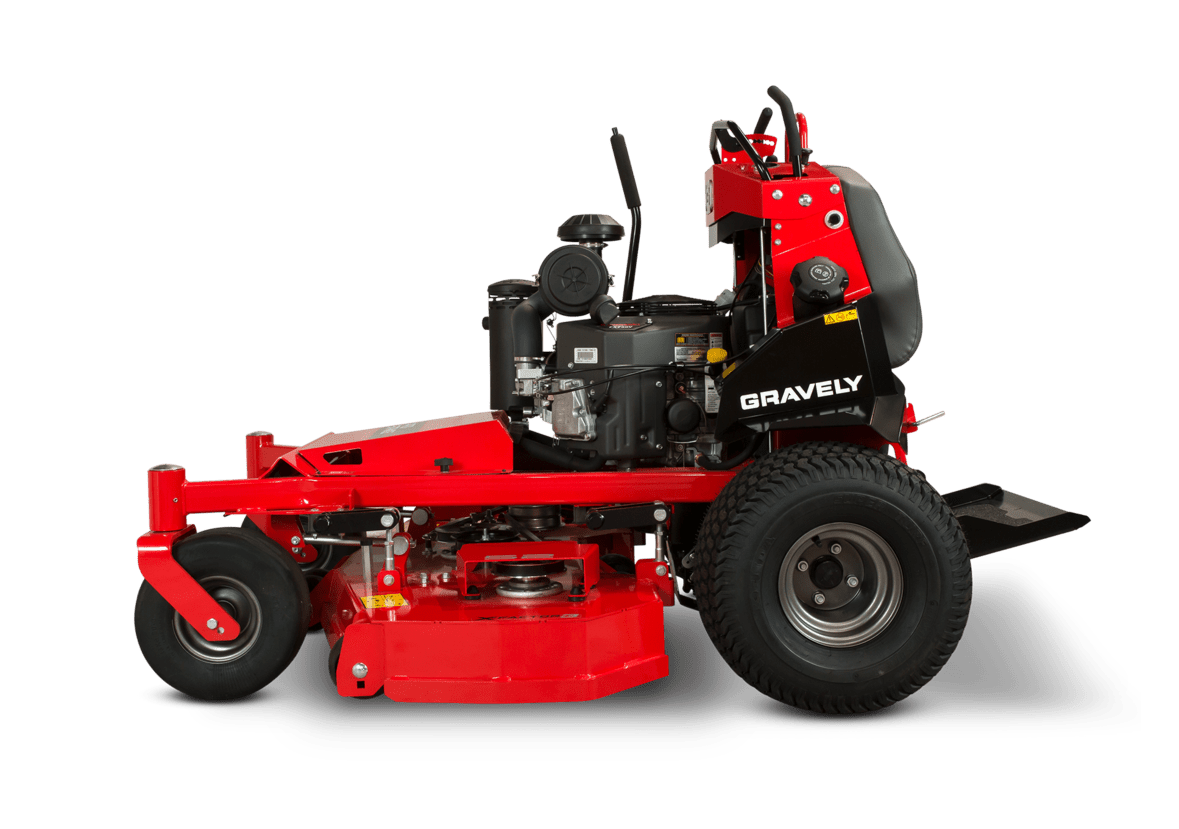

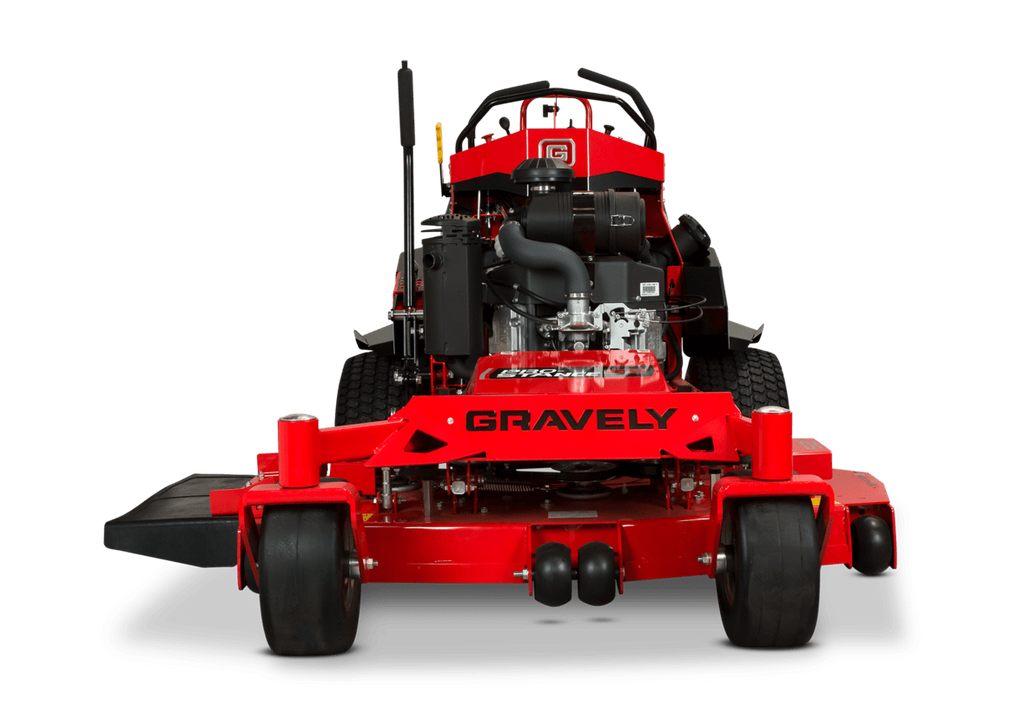

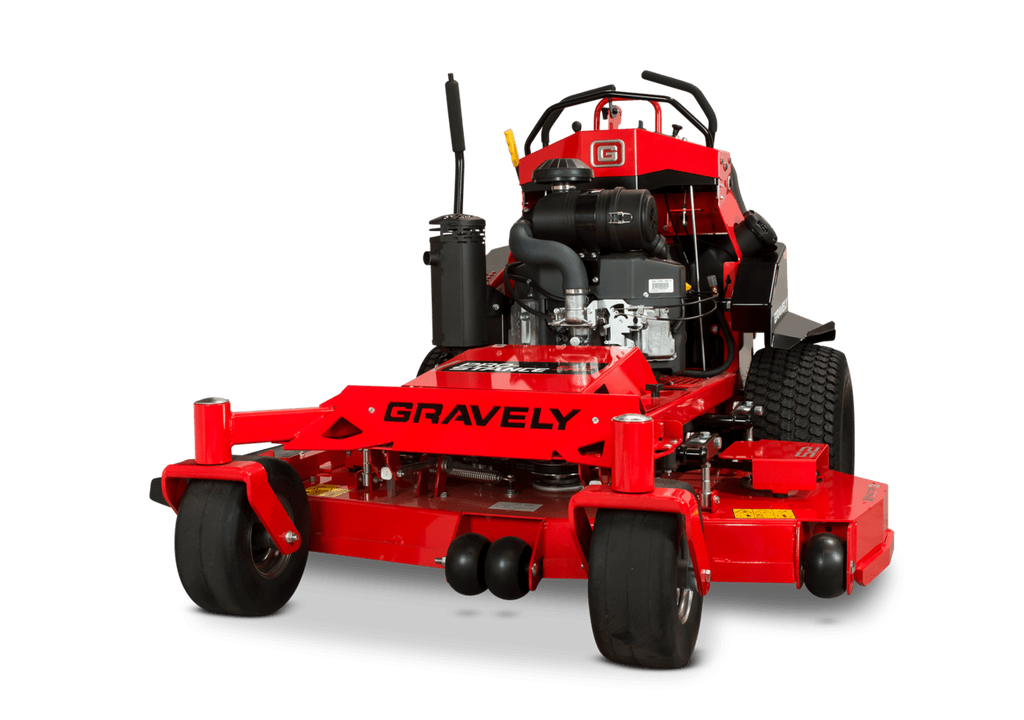

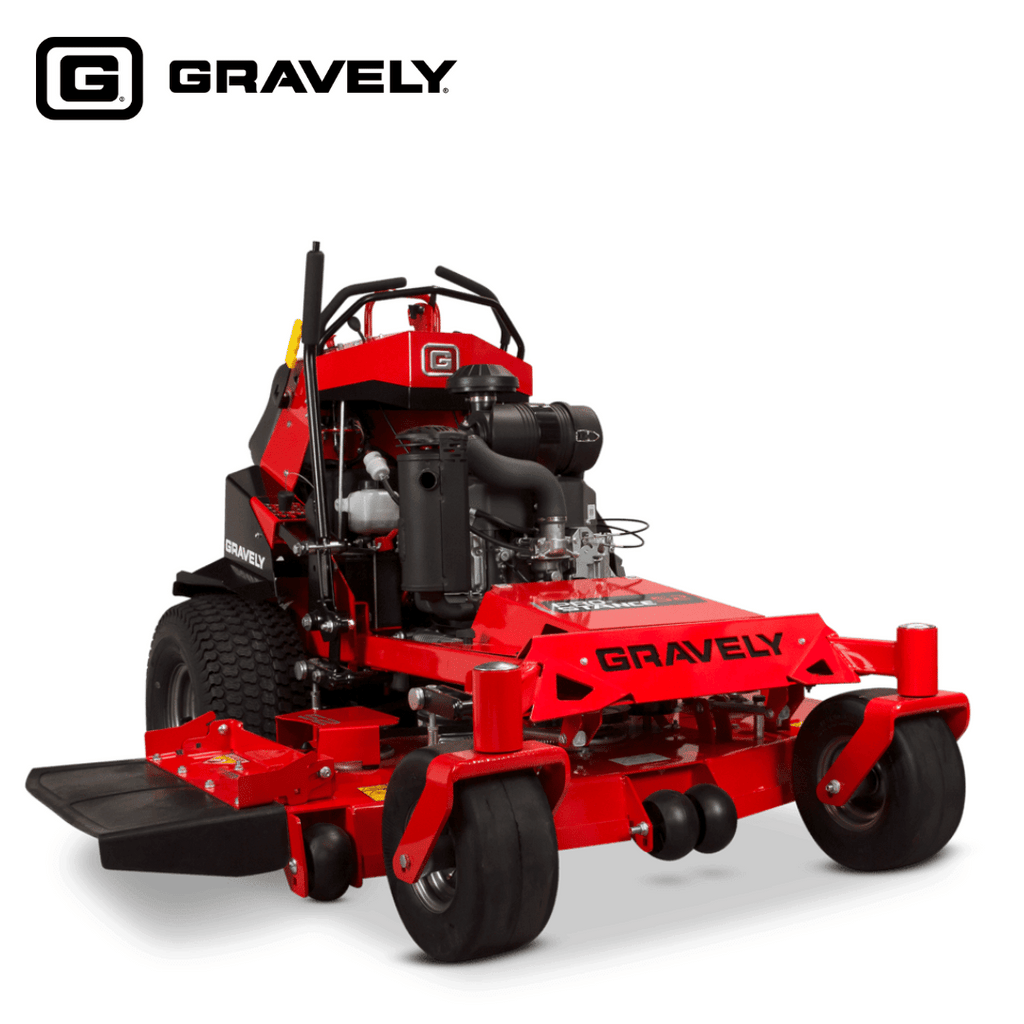

Gravely Pro-Stance 52" Stand-On Zero-Turn Mower
Step up your mowing skills.
Stand-On Mowers, rugged, durable, and built to deliver an exceptional cut. Just like all Gravely commercial units, stand-on mowers give you additional flexibility. The perfect blend of power and performance for environments that demand quick
on-and-off versatility. The deck adjusts easily, and the suspension platform absorbs vibration for all-day comfort.
FEATURES
- Kawasaki 23.5 hp FX730V premium and commercial grade V-twin engine.
- Operator comfort features exceptional operator positioning for all-day comfort.
- Added efficiency – reduced complexity gives users the freedom to make critical adjustments in just minutes.
- Adjustable Cruise Bar - allows the operator to limit and expand the unit’s maximum speed in tight working environments .
- Deck height adjustment - the dual height-adjustment system was designed with both a traditional hand lever and a foot lever to lift and adjust the deck. It’s perfect for smaller operators who may struggle with traditional hand lever lifts.
- X-FACTOR® 3 deck - the deck has been completely redesigned for better grass dispersion. Its new look is constructed from 7-gauge steel to deliver years of solid performance.
- Compact stance perfect for tight spaces.
- Offers 15 cutting positions, ranging from 38.1 mm - 127 mm.
- Shock-absorbed operator platform which responds to driver’s weight.
- Heavy-duty fabricated frame.
SPECIFICATIONS
Warranty Information
Domestic Warranty: 5 Year / 1000 Hour Domestic Warranty
Commercial Warranty: 5 Year / 1000 Hour Commercial Warranty
Miscellaneous
Blade(s): 3
Dimension Specs
Dry Weight: 460.4 kg
Height: 1219 mm
Width: 1409 mm with chute up
Overall Length: 1540 mm
Zero Turn Mower Specs
Ground Speed - Up To 14.4 km/h
Brakes: Hand-operated Park brake
Construction: Frame 1" x 3" STEEL Tubular frame welded
ROPS: No
Controls: Hand-operated choke, throttle, ignition switch, electric mower clutch, Hand lever operated: hand brake
Deck System: 4 Point Lift Fabricated
Deck Lift: Dual deck height adjustment
Deck Construction: Fabricated 7 Gauge
Blade Tip Speed: 18,000 FPM
Blade Drive: V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life
Spindles: Forged Aluminium with sealed ball bearings
Drive System: Hydro-Gear® ZT-3400 Transaxle
Discharge Chute: High density, rubberised
Steering: Twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse and turns are all controlled with hand-operated controls
Engine and Fuel Specs
Engine: Kawasaki FX730V
Type: Air cooled, 90-degree V-twin, normally aspirated petrol engine
Engine (cc): 726 cc
Horsepower: 23.5 hp
Cooling: Air cooled. Fly-wheel fan
Fuel: Unleaded fuel - maximum of 10% ethanol in fuel (see engine manufacturers specifications)
Fuel Filter: Replaceable, automotive-type
Oil Filter: Spin-on engine oil filter / Total oil capacity 2.1 litres with filter
Air Filter: Dual element with reinforced primary filter
Fuel Capacity: 33.9 L
Governor: Mechanical
Hydrostatic Drive System Specs
Hydrostatic Drive System: Dual hydrostatic
Drive Cooling: Transmission mounted fans
Drive Filter: Yes
Cutting Dimensions
Cutting Widths: 52" Cut Side Discharge
Cutting Height(s): 38 mm - 127 mm
