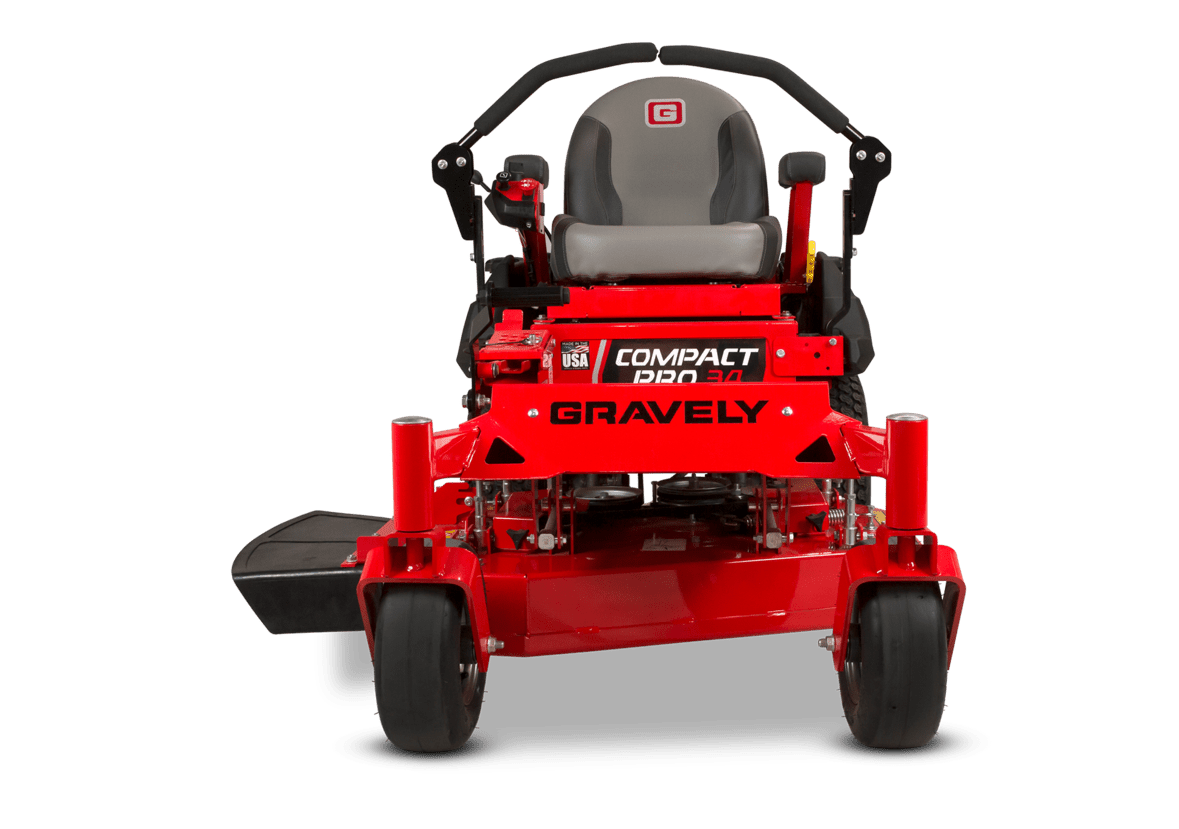

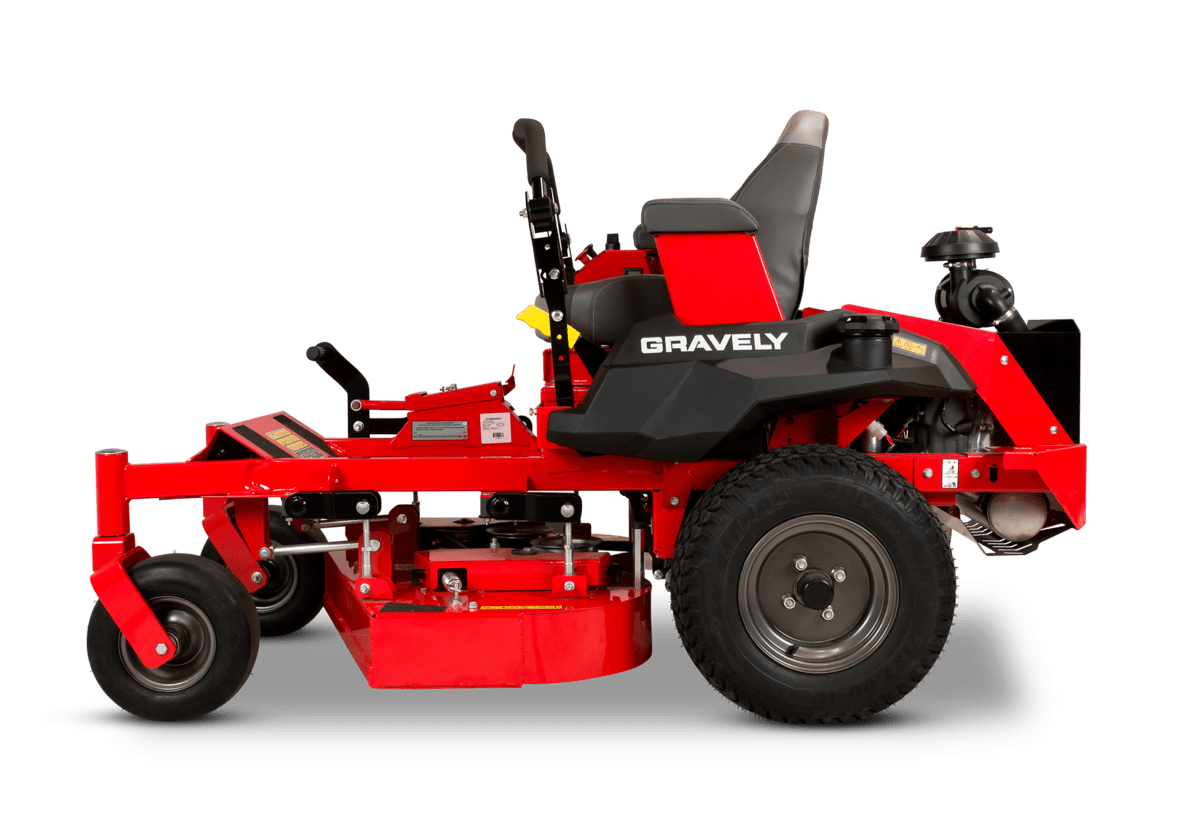

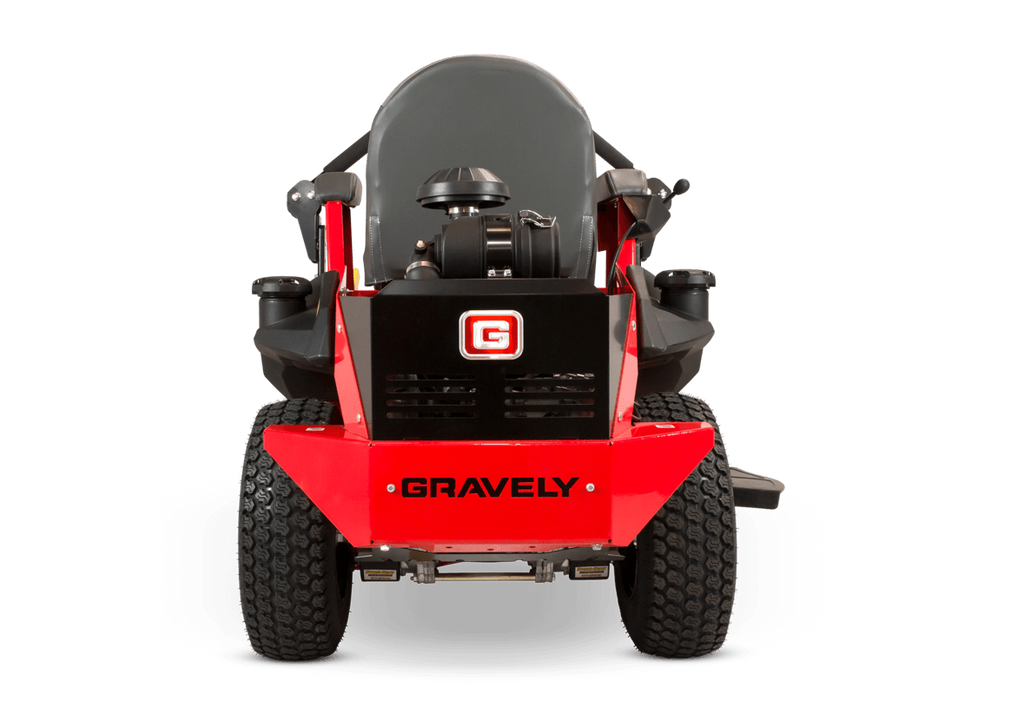

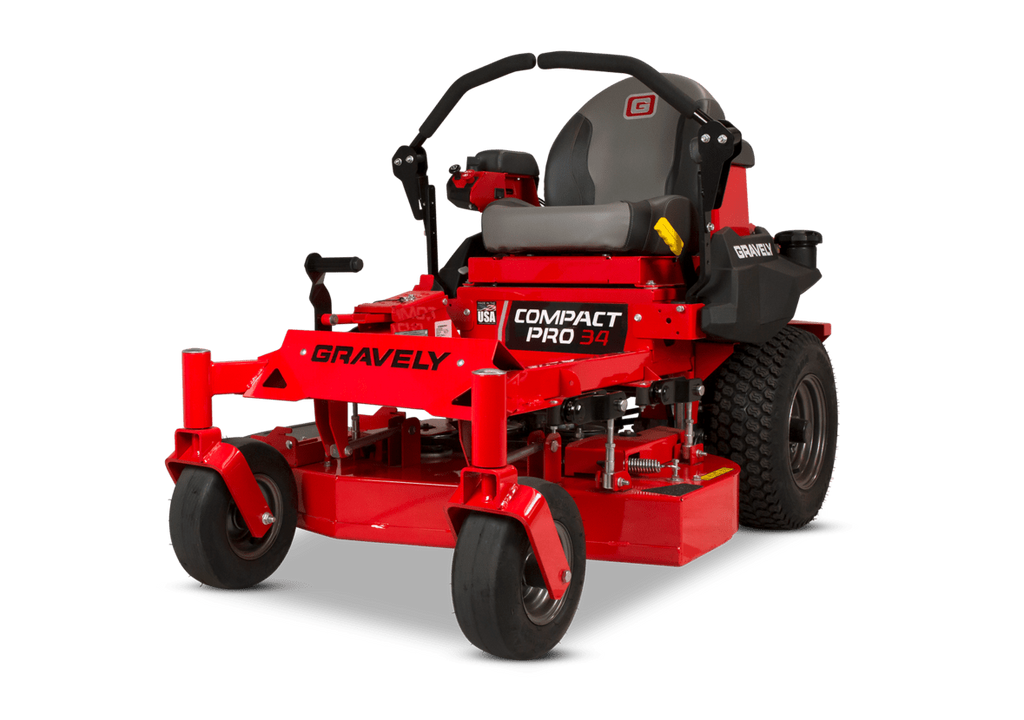

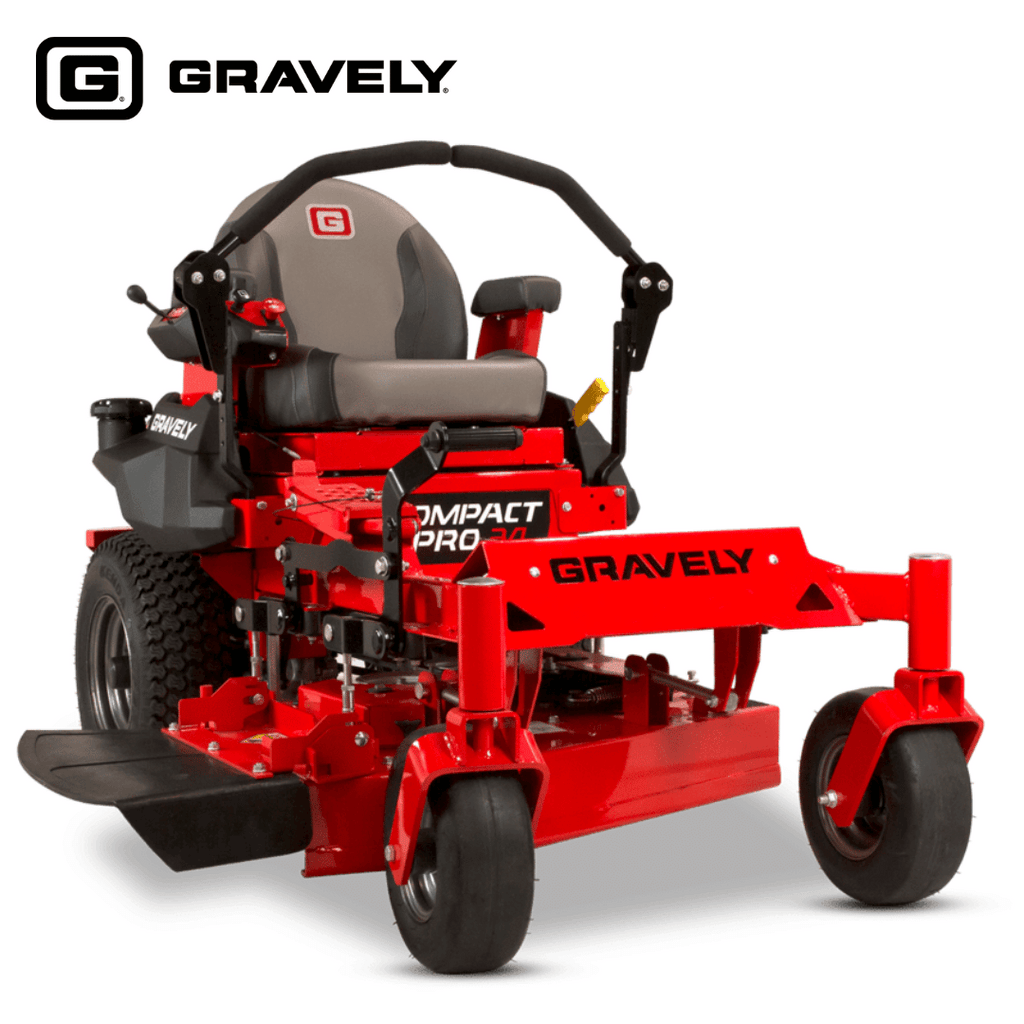

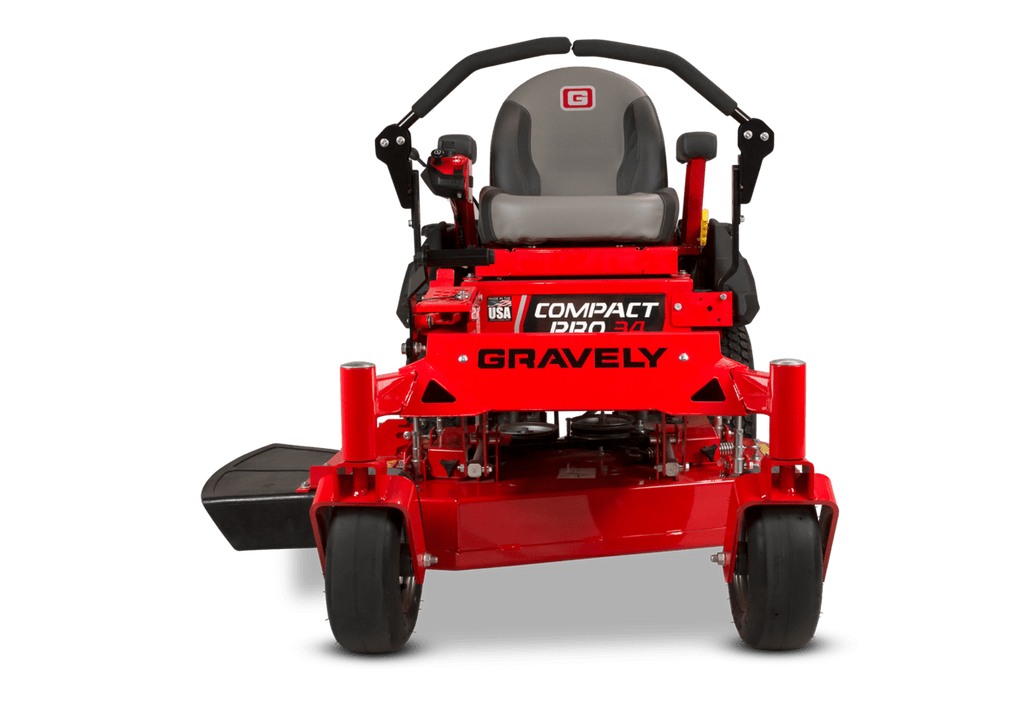

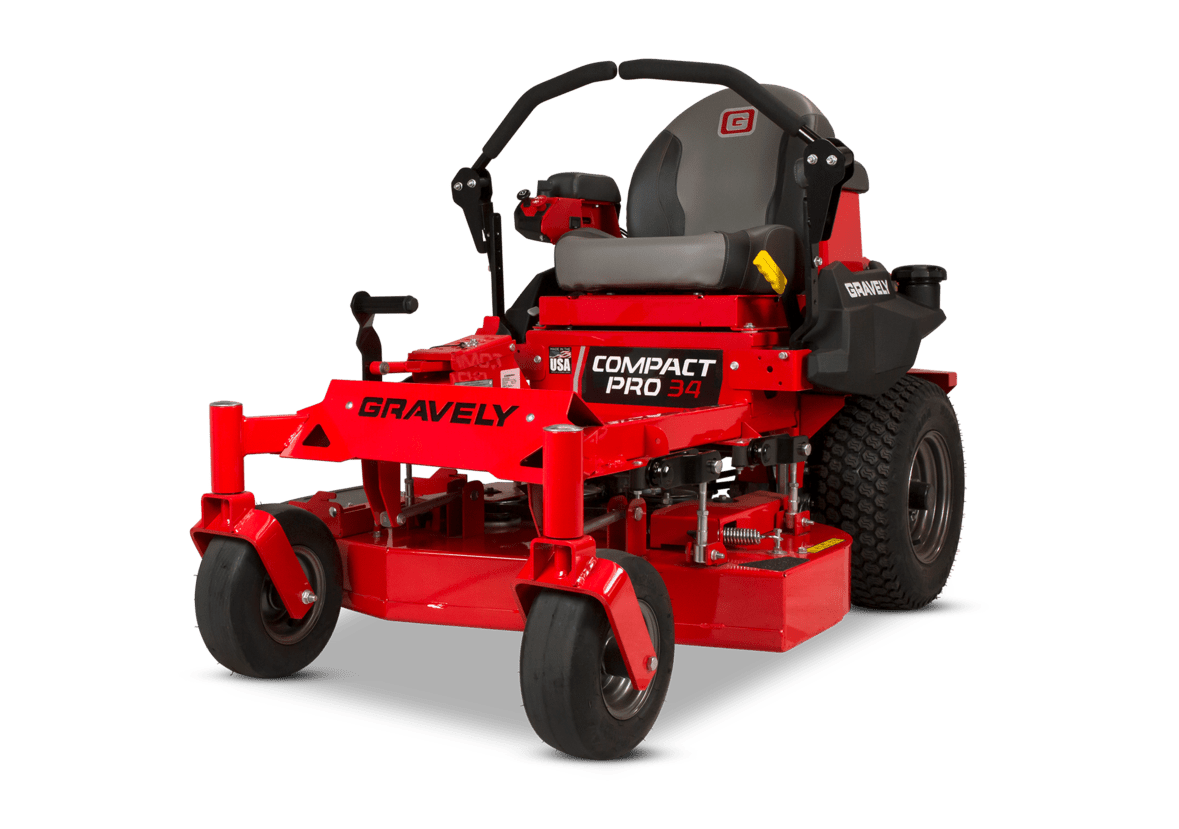

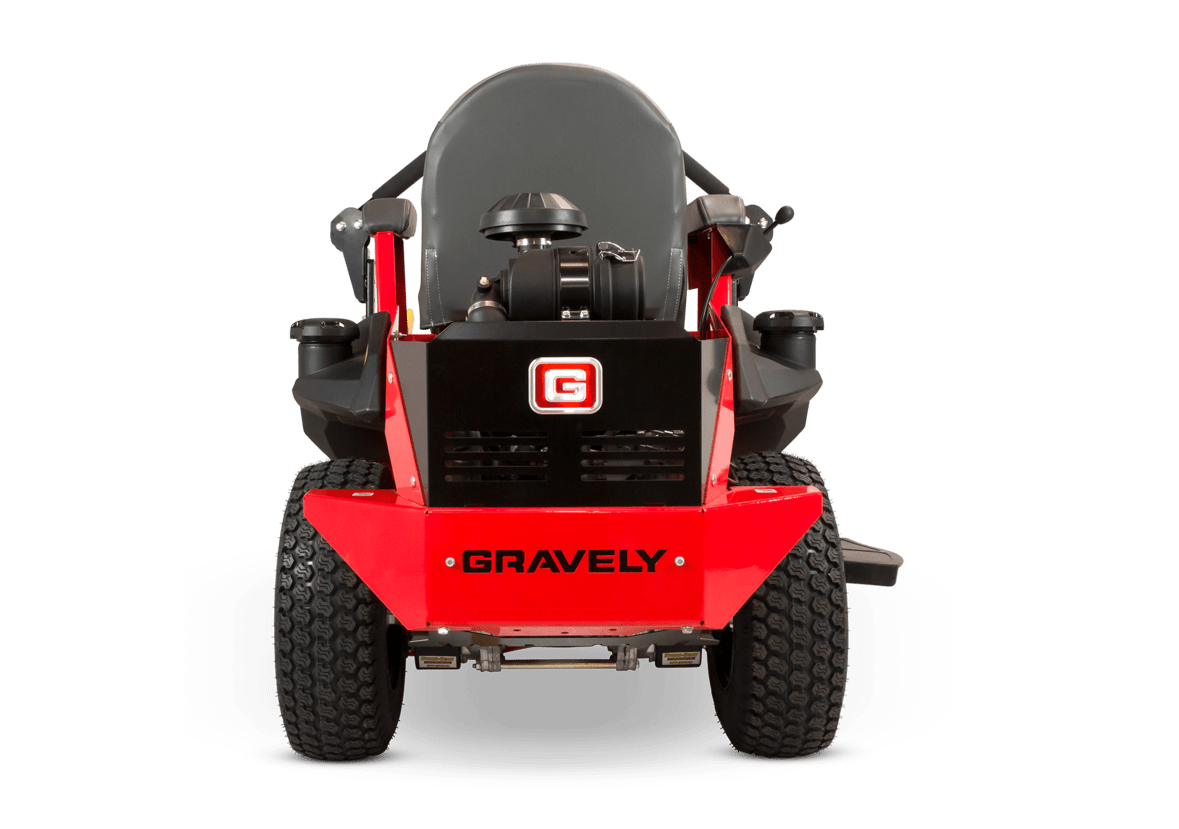

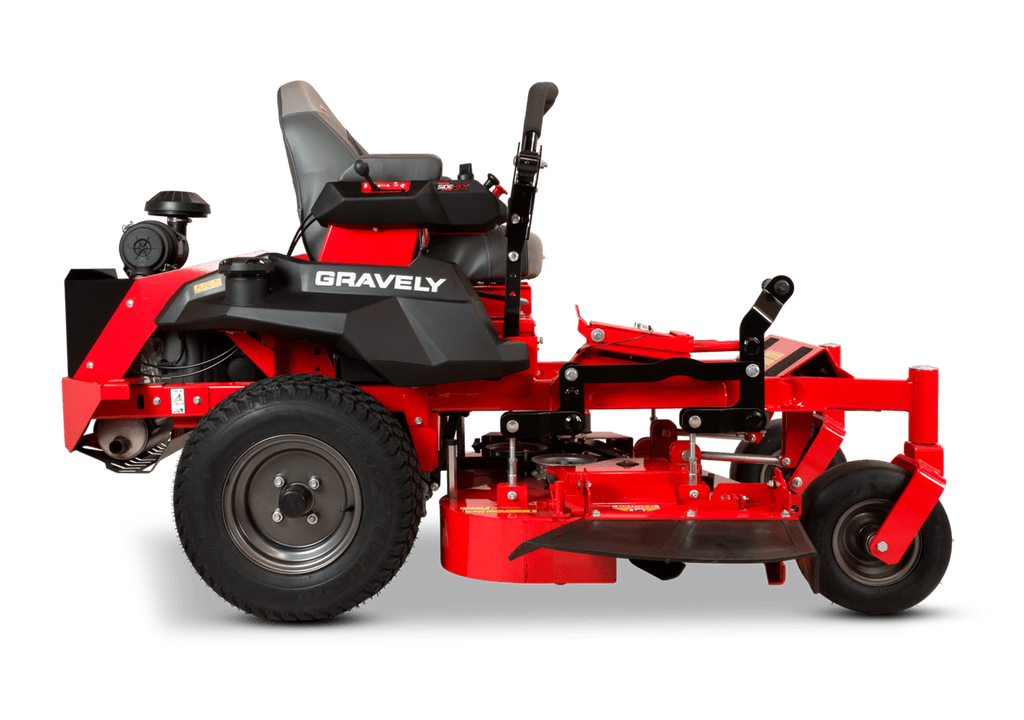

Gravely Compact Pro 34" Zero-Turn Mower
Small frame. BIG results
The Compact Pro 34" is the perfect compact solution that takes you where bigger mowers can't, like through gates as narrow as 36". But this smaller, nimbler ride is still loaded with big-time features. Powerful, durable, with maximum versatility. This is full commercial strength brought down to size.
FEATURES
-
Powered by a 15.5 hp Kawasaki FX481V Engine that touts a heavy-duty canister air cleaner to optimize performance in all conditions and extend engine life.
-
Fuel Tank design Increases stability and improves machine handling and visibility.
-
Smaller Footprint the Compact-Pro® easily passes through gates as narrow as 36 inches and nimbly manoeuvres around common residential obstacles.
-
Hydro Gear ZT-3100 Dual hydrostatic transmission.
-
Seat Isolation Removes vibrations to decrease fatigue by absorbing the rough terrain so your body doesn’t have to.
-
Cut selection Offers 17 cutting positions, ranging from 25.4 mm - 127mm, to make your lawn look its best.
-
Fabricated deck 10 GA. Steel with 10 GA. spindle reinforcement.
-
Forged Aluminium cutter spindles with sealed ball bearings.
-
Fully welded tubular frame offers a superior and more robust welded tubular frame.
-
Productivity - 2.4 acres per hour.
SPECIFICATIONS
Warranty Information
Domestic Warranty: 4 Year / 750 Hour Domestic Warranty
Commercial Warranty: 4 Year / 750 Hour Commercial Warranty
Miscellaneous
Blade(s): 2 x Bar blades
Dimension Specs
Dry Weight: 334.3 kg
Height: 1155 mm
Width: 911.8 mm With chute up
Length: 75" (1905 mm)
Zero Turn Mower Specs
Ground Speed - Forward: Up to 11.2 km/h
Brakes: Hand brake
Seat: High back with EVC suspension
Construction: Frame 1" x 3" STEEL Tubular frame welded
ROPS: ROPS not supplied with unit
Controls: Hand-operated choke, throttle, ignition switch, electric mower clutch, Hand Park brakes
Cup Holder: Yes
Deck Lift: Foot-operated
Deck Construction: Fabricated 10 Gauge w' 10 Gauge spindle reinforcement
Blade Tip Speed: 17250 FPM
Blade Drive: V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life
Spindles: Forged Aluminium with sealed ball bearings
Drive System: V-belt drive from engine crankshaft
Discharge Chute: High density, rubberised
Steering: Twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse, and turns are all controlled with hand-operated controls.
Engine and Fuel Specs
Engine: Kawasaki FX481V
Engine (cc): 603 cc
Horsepower: 15.5 hp
Cooling: Air cooled flywheel fan
Fuel: Unleaded fuel - maximum of 10% ethanol in fuel (see engine manufacturers specifications)
Fuel Filter: Replaceable, automotive-type
Oil Filter: Spin-on engine oil filter / Total oil capacity 1.7 litres with filter
Air Filter: Multi-Stage remote canister heavy duty air filter system
Fuel Capacity: 27.1 L
Governor: Mechanical
Safety Features
Safety Features: Operator presence system connected to clutch, seat, and park brakes
Hydrostatic Drive System Specs
Hydrostatic Drive System: Dual hydrostatic
Drive Cooling: Transmission mounted fans
Pumps: Hydro Gear ZT-3100
Cutting Dimensions
Cutting Widths: 34" (863 mm) cut side discharge.
Cutting Height(s): 25 mm - 127 mm
