FJD RCM01 Robotic Cylinder Mower - PRE-ORDER

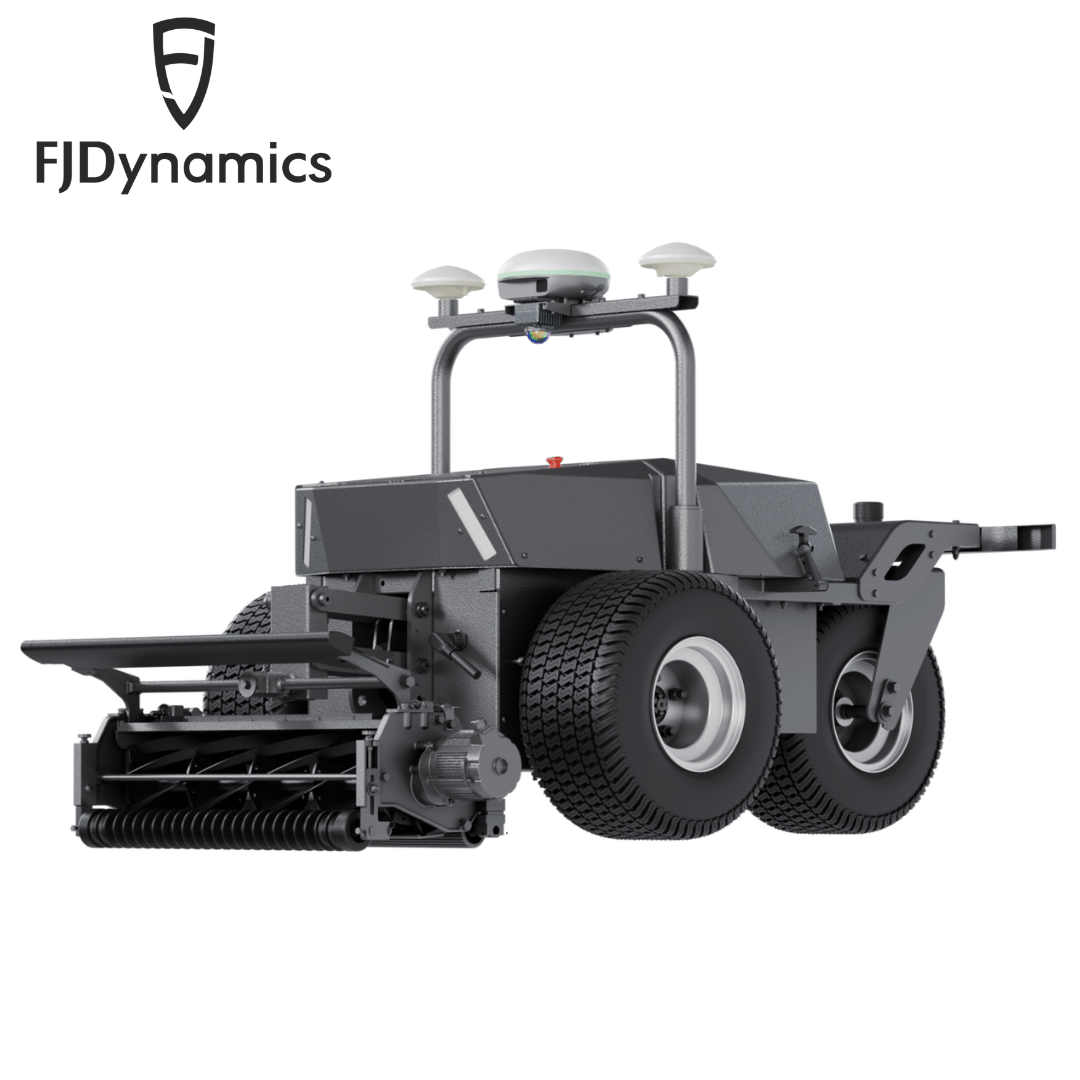

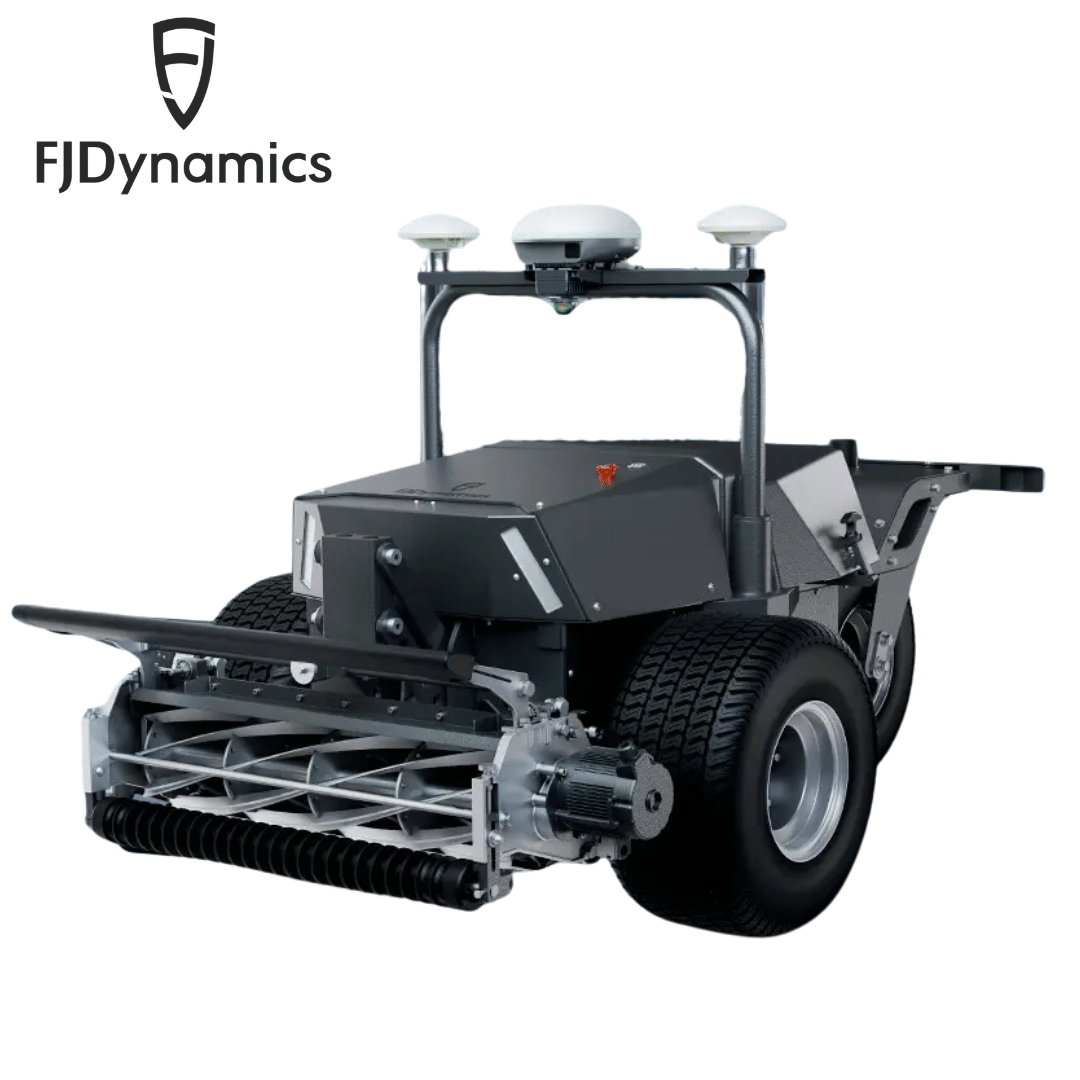

FJD RCM01  Robotic Cylinder Mower

PRE-ORDER

RTK NAVIGATION / CYLINDER CUTTING / FLEET MANAGEMENT

Autonomous Turf Care

The FJD RCM01 is designed for professional turf maintenance, bringing autonomous mowing technology to golf courses, sports fields, and large-scale landscapes.

Powered by RTK + LiDAR positioning and intelligent path planning, it delivers precise navigation and consistent cutting performance without perimeter wires.

Featuring a professional cylinder cutting system, smart fleet management, and automated operation control, the RCM01 helps improve mowing efficiency, reduce labour costs, and maintain premium turf quality with every cut.

Unmatched Engineering Excellence

of Cylinder Cutting System, Fleet Management, Precision Turf Care & RTK + LiDAR Navigation

• Centimetre-Level RTK Positioning
• Intelligent Route Planning
• 24/7 Autonomous Operation
• Smart Obstacle Recognition
• Large Area Coverage Capability
• Professional Fleet Management
• Low Noise & Zero Emissions
• Reduced Labour Costs
• Heavy-Duty Structure Design

Tournament-Grade Turf Finish

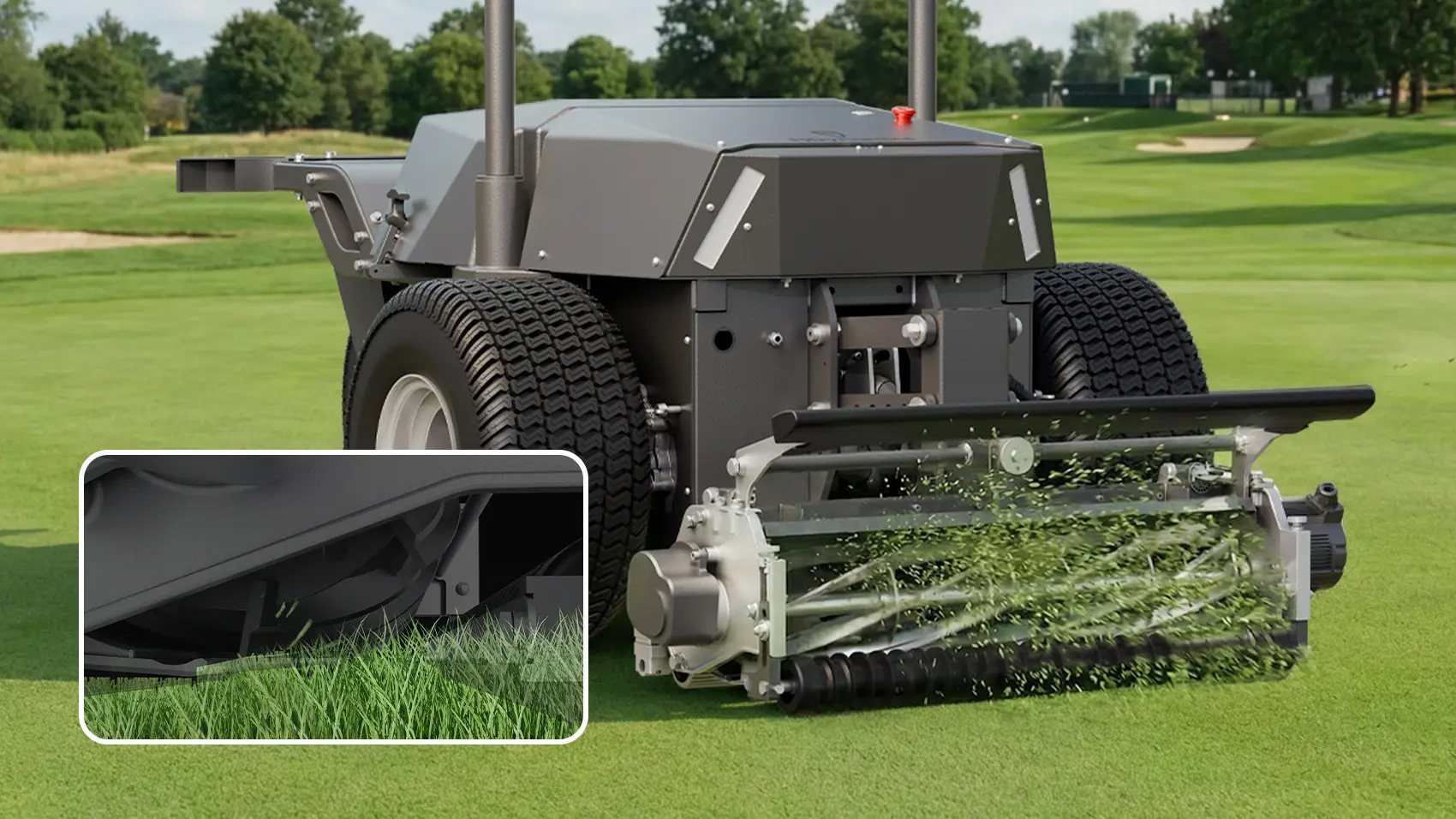

Precision Cutting
Achieve clean, scissor-like cuts with a reel system, minimizing leaf tearing and promoting healthier turf growth.

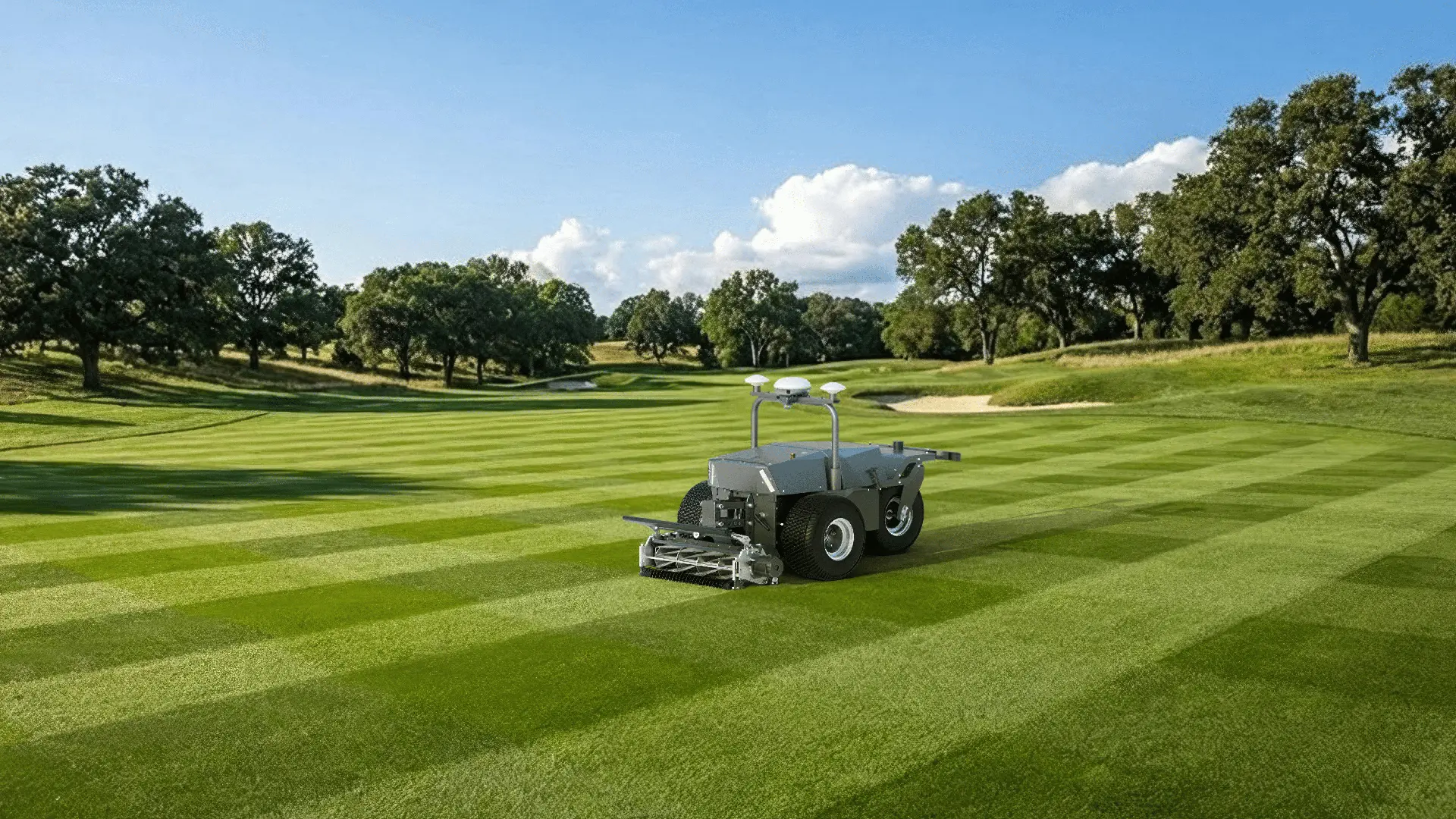

Professional-Grade Striping
Create clean, high-contrast stripes with precision roller blades. You can also customize striping widths to match your golf course's style.

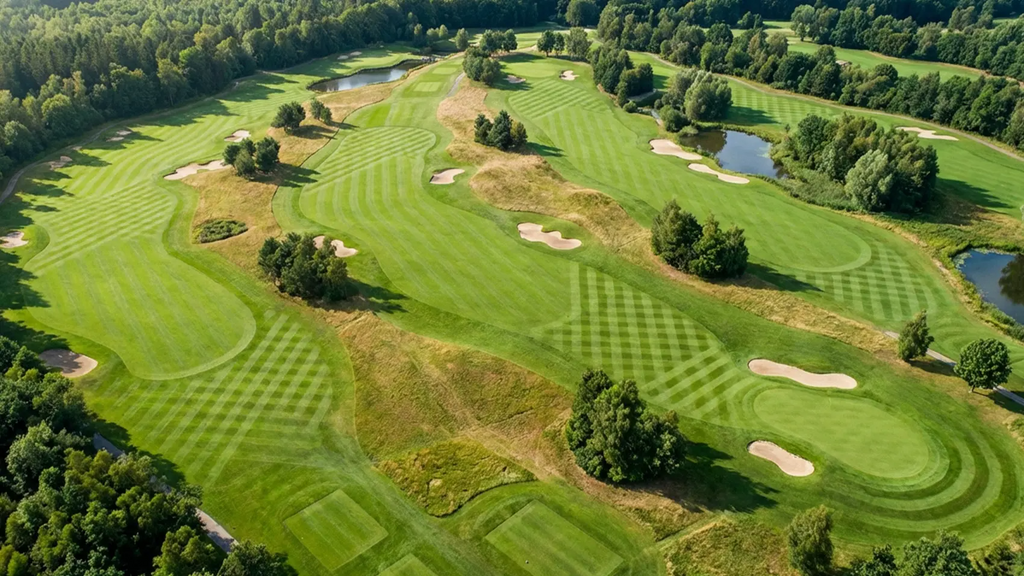

Shape the Turf, Define the Look
Adjust the mowing angle to easily change the direction of the stripes. This lets you create neat, professional, and custom patterns on your turf.

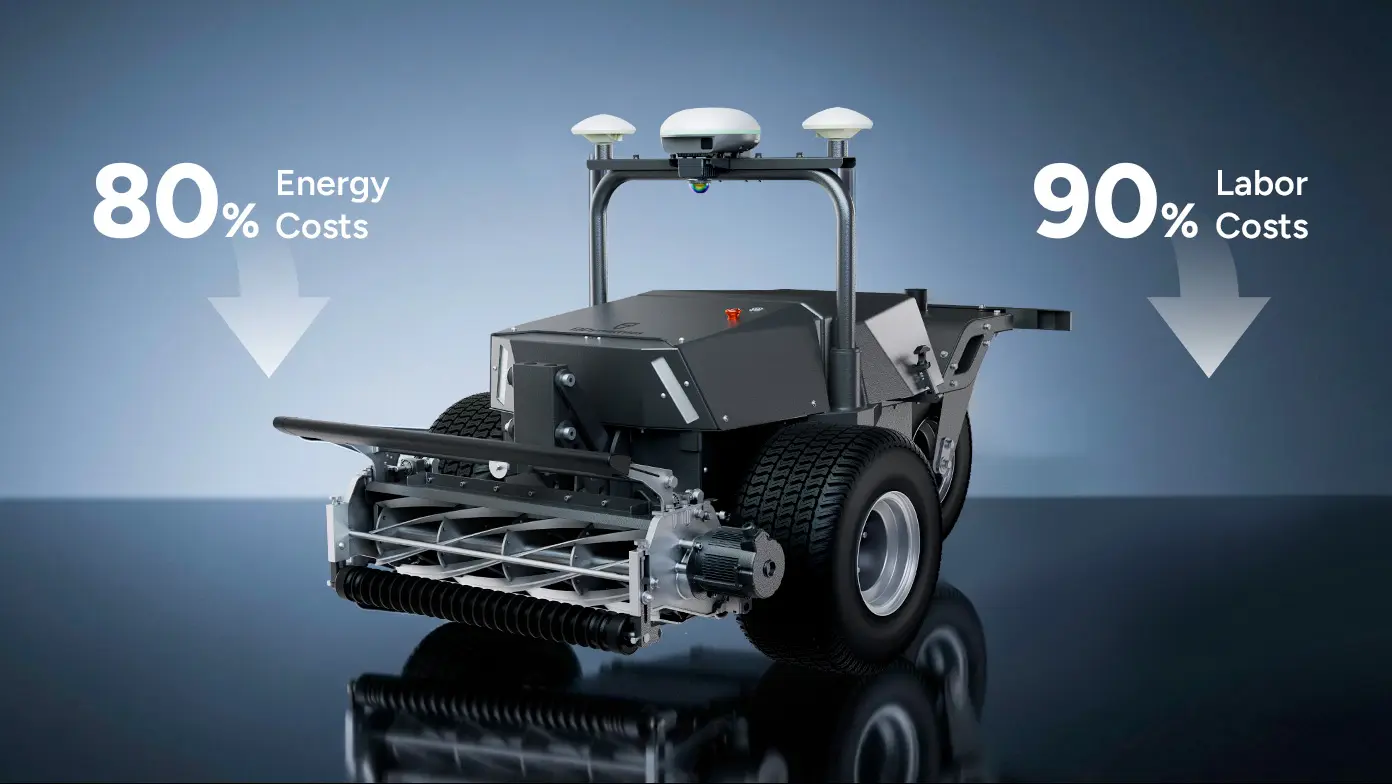

Higher Efficiency. Lower Costs.
Maximize your operational ROI by automating repetitive tasks, allowing your team and resources to work smarter while achieving more.

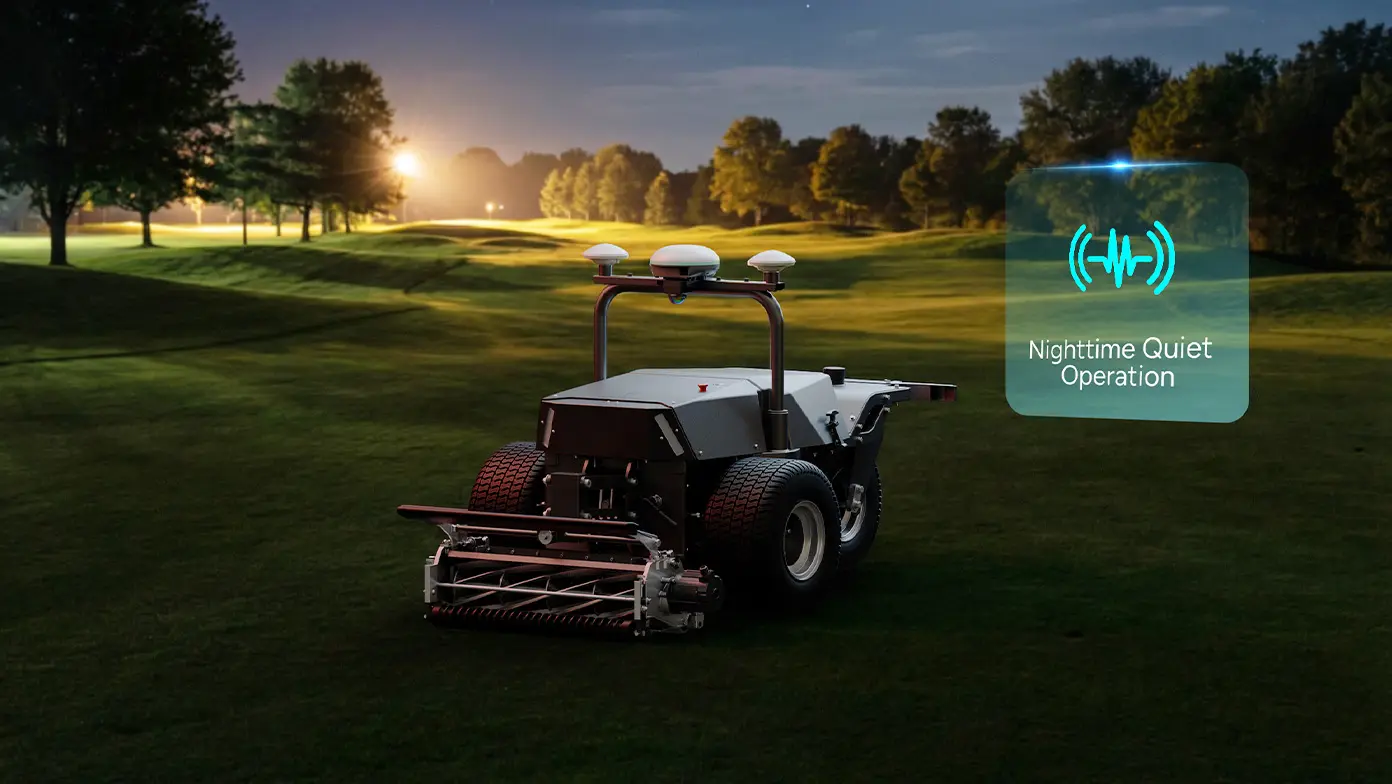

Night Time Quiet Operation
Enable all-day autonomous mowing, freeing up daytime hours for golf course activities and reducing distraction to players.

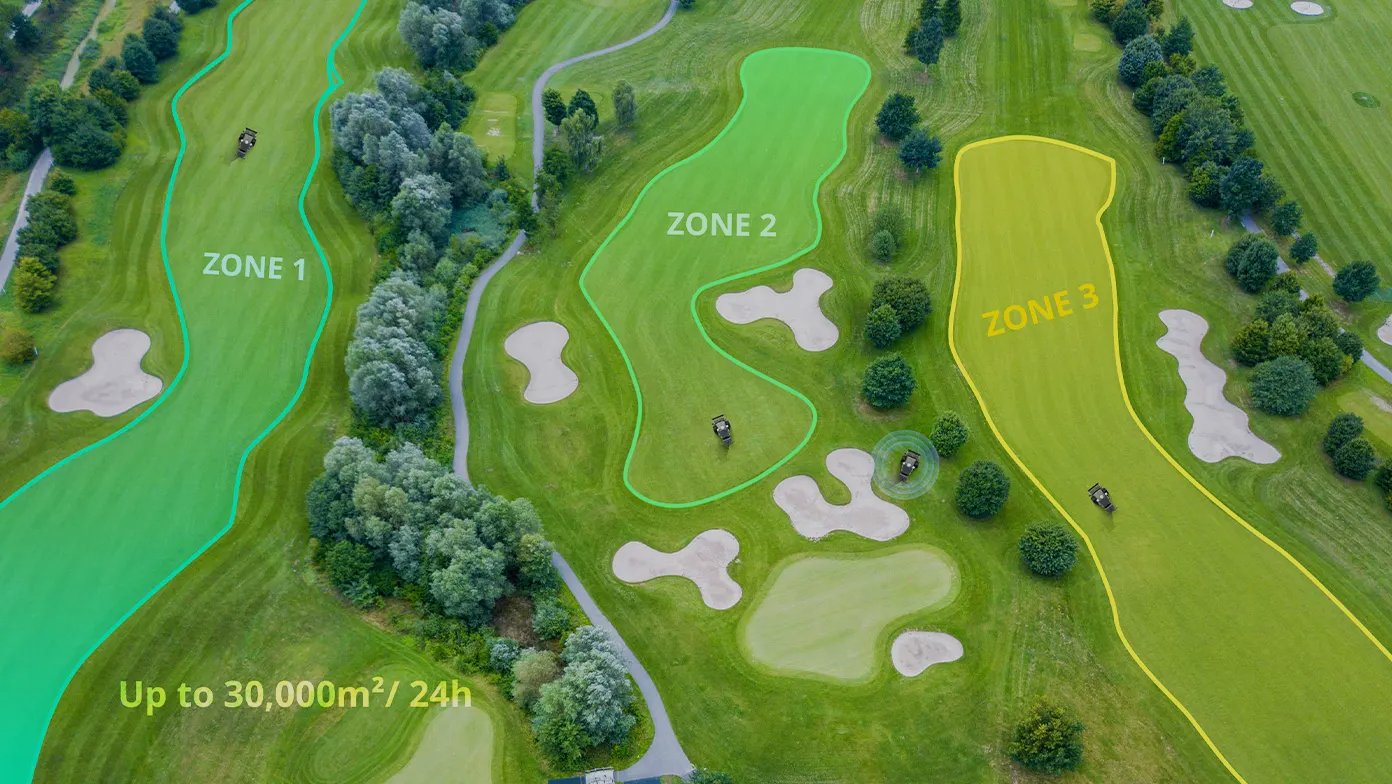

Multi-Zone Management
Mow multiple zones in a single task and automatically move to the next area upon completion for seamless operation.

Hassle-Free Autonomy

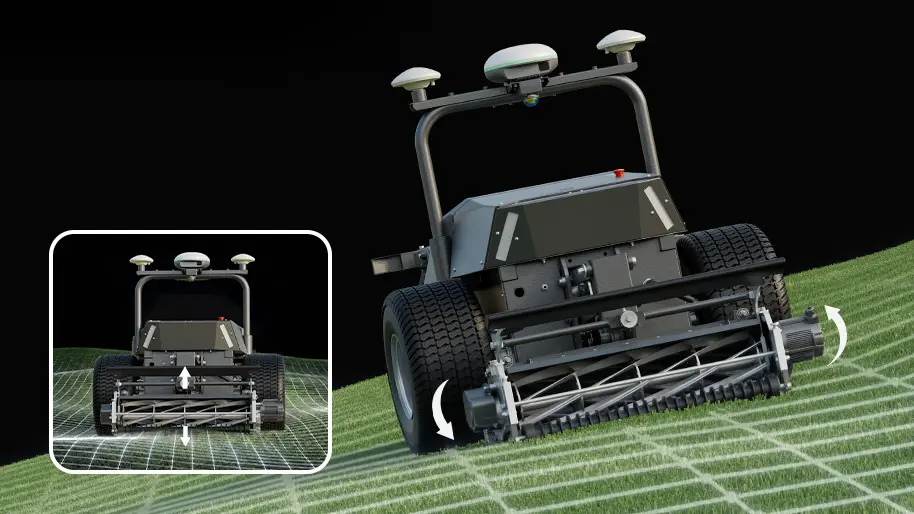

Dynamic Terrain Adaptability
Follow the turf's natural curves automatically with the floating blade, making it easier to get a consistent cut and prevent turf scalping.

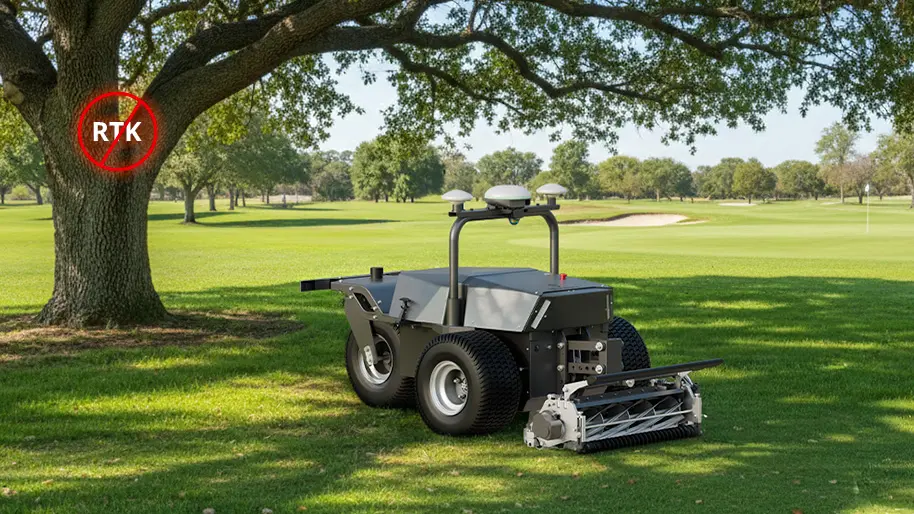

No Signal Lost Under Trees
Maintain high-precision navigation with no signal loss under trees or in signal-obstructed areas.

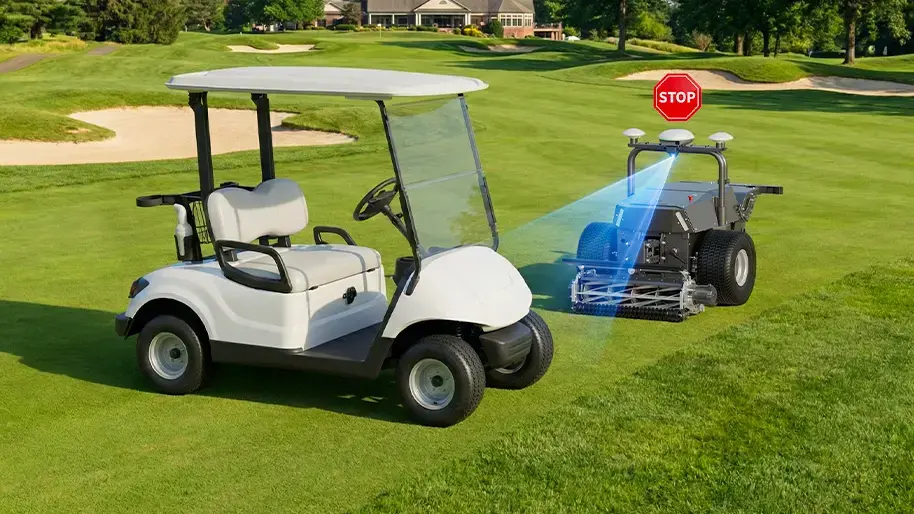

Comprehensive Safety Protection
Equipped with front and rear bumpers and LiDAR obstacle avoidance, ensure stable and secure autonomous operation.

Comprehensive Mowing Solution
The RCM01 connects with S2 Max, V4e Pro, and Golf Mind to support a complete turf-care workflow — from accurate site data and digital planning to efficient autonomous mowing.

Specifications

Max. Mowing Size
48,000㎡ / 24h
144,000㎡ / 72h

Max. Multi-zone Management
Multiple Zones

Engine
Electric Drive System

Max. Climbing Ability
20°

Max. Mowing Slope
15°

Boundary Type
Virtual Wire

Cutting Mode
Customized Angle Mowing

Cutting Width
686mm (27″)

Cutting Height
7–44mm

Cutting System
Cylinder Reel Cutting System

Reel Blade
1 Reel (8 Blades)

Battery Capacity
8 kWh

Battery Life
10 Hours

Charging Time
5 Hours

Obstacle Avoidance
LiDAR Obstacle Detection

Connectivity
4G & Wireless Connectivity

Noise Level
＜75 dB

Waterproof
IPX4

Rain Detection
Yes

Weight
364 kg

Size(L*W*H)
1905 × 1077 × 1077 mm
