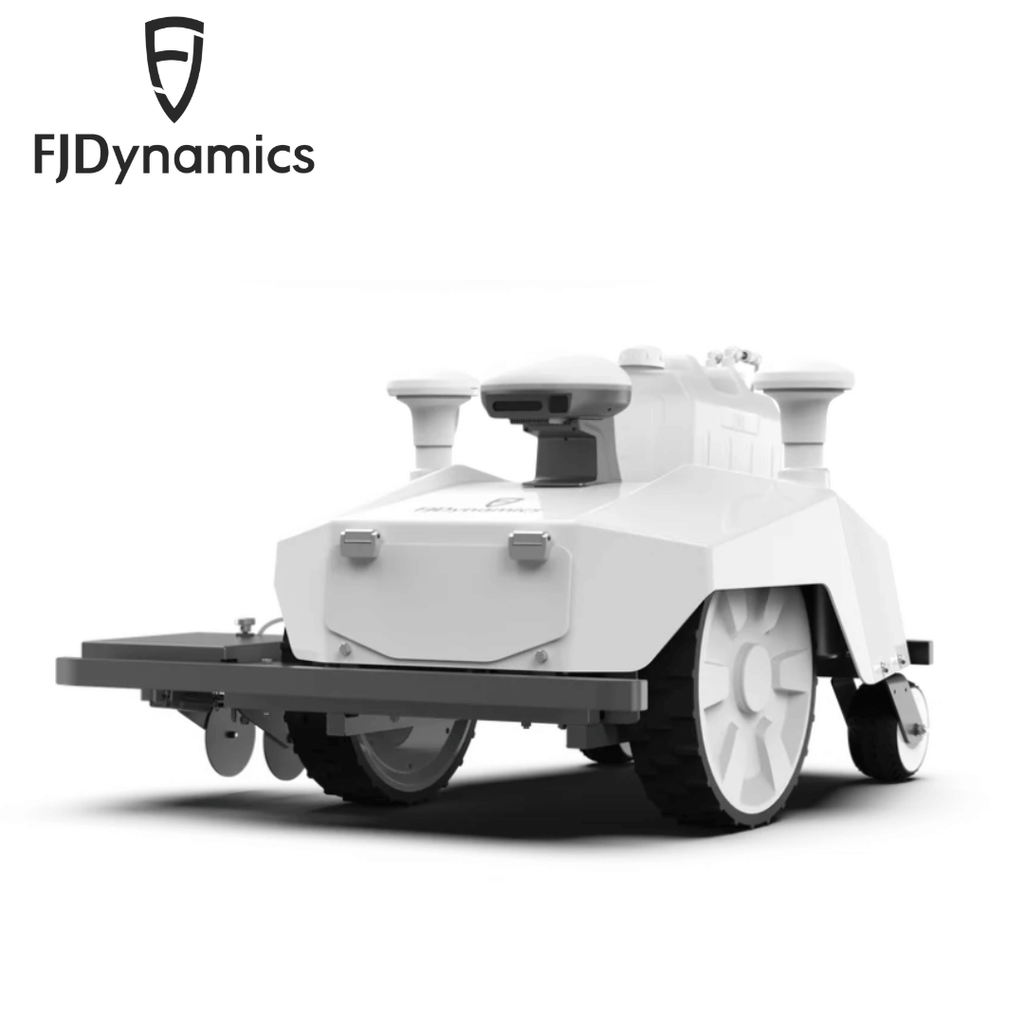

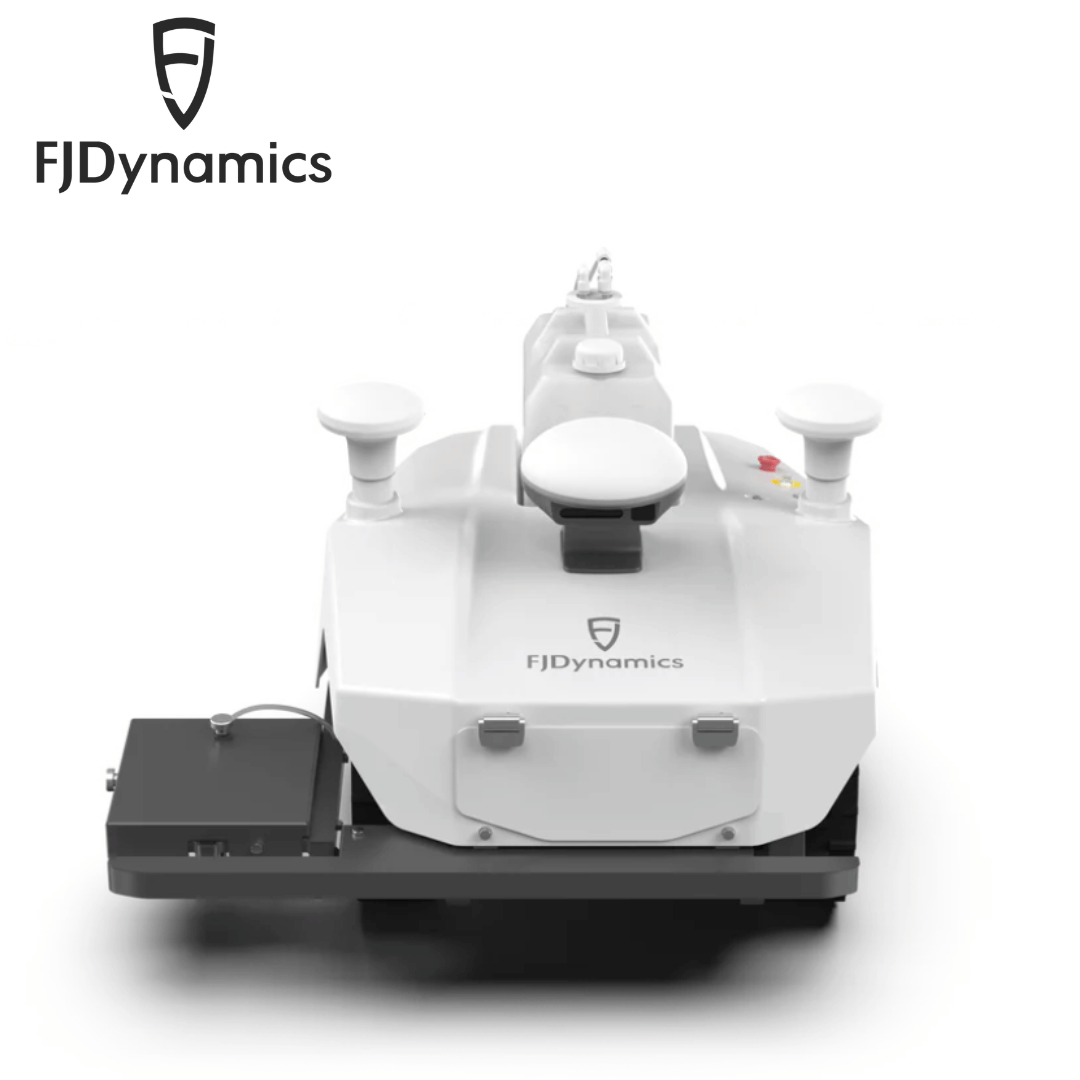

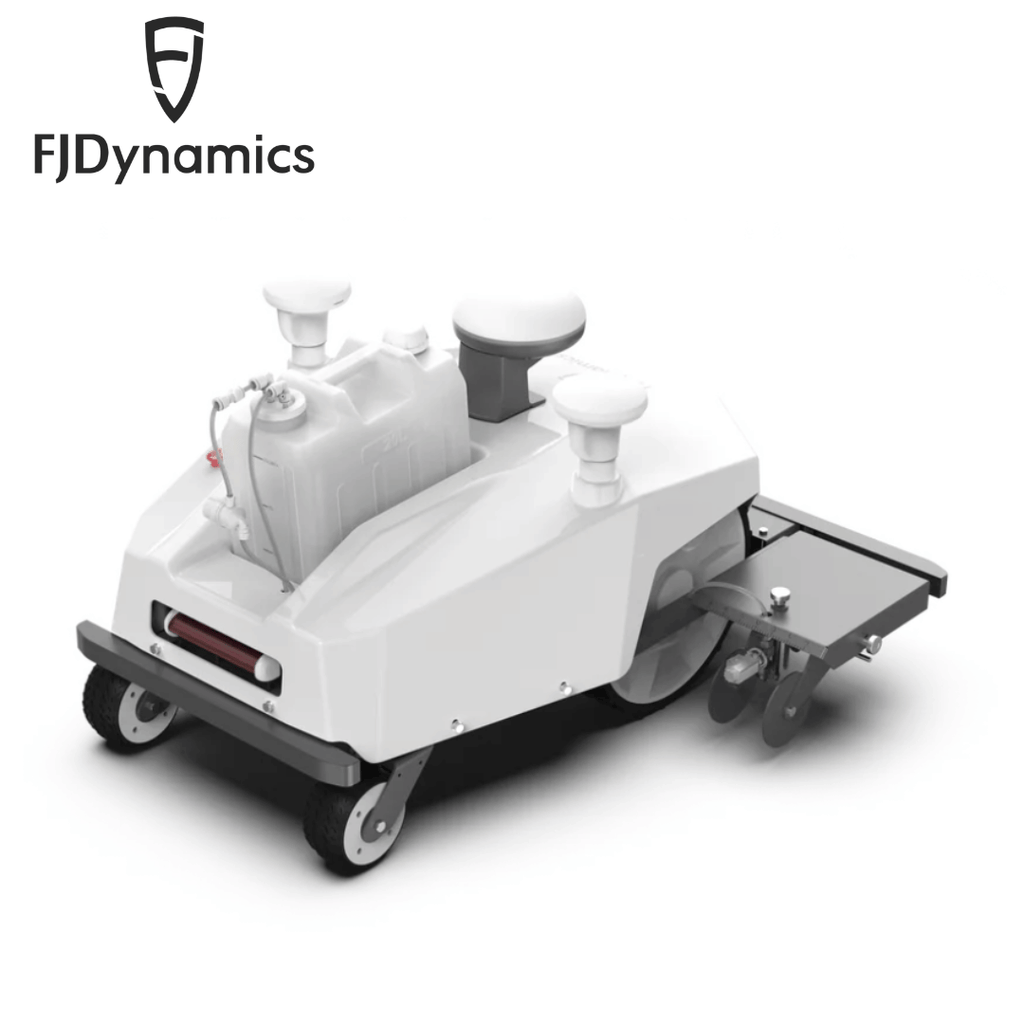

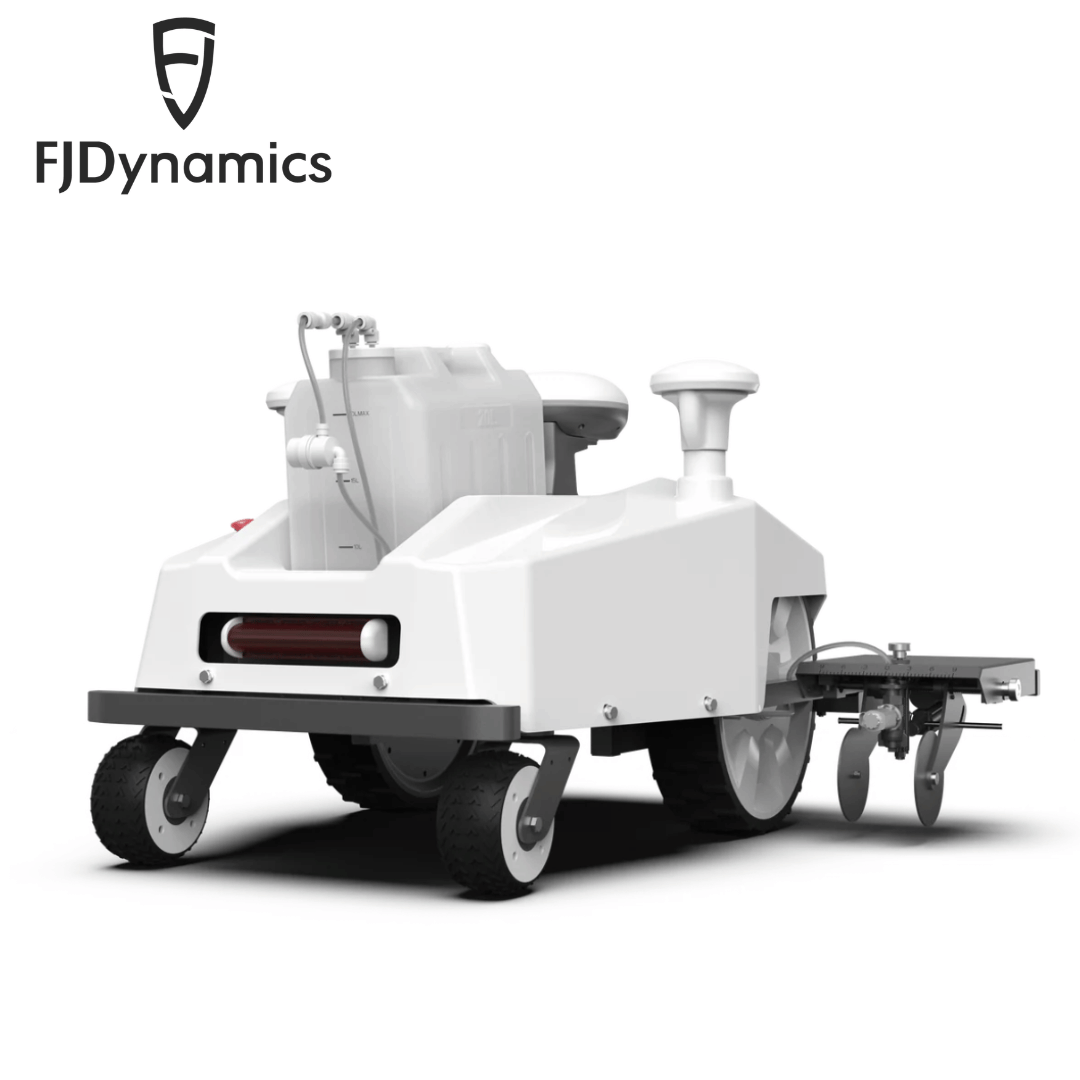

FJD PaintMaster™ Pro | RLM01 Robotic Line Marker
The FJD PaintMaster™ Pro is an intelligent robotic line-marking solution designed for sports fields. It delivers centimeter-level accuracy through two industrial-grade GNSS positioning systems and a local base station, ensuring every line is marked precisely on point.
Key Features & Benefits
- Unmatched Precision: Achieve the highest marking accuracy and reduce signal drift. Paired with the optional laser kit, the robot offers millimeter-level precision even in GPS-challenging areas like under trees or near stands.
- Significant Cost Savings: Save labor costs by up to 90%+ and reduce paint consumption by approximately 50%.
- 7x24 Operation: Supports fast battery swapping for all-weather marking. A standard 0.5 kWh battery can mark up to 6 football fields (11v11) on a single charge.
- Convenient Mapping: Comes standard with a portable handheld point marker, allowing you to complete field mapping in just a few minutes.
- Intelligent Software: Use the dedicated app to customize marking maps, manage a fleet of devices, and monitor operations in real-time from any location.
- Safety First: Features dual protection with real-time visual monitoring and front/rear bumper strips. A binocular camera enables an automatic stop if an object is detected.
Versatile Applications
The PaintMaster™ Pro is designed to cover various sports fields, including:
- Football (Soccer)
- Rugby
- American Football
- Baseball
- Lacrosse
Technical Specifications
| Feature | Specification |
|---|---|
| Weight (Excluding Paint) | 58.6 kg |
| Dimensions | 1651 × 1372 × 1321 mm (65 × 54 × 52 in.) |
| Marking Speed | 1–3 km/h |
| Paint Bucket Capacity | 20L |
| Battery Life (0.5 kWh) | 5 hours |
| Charging Time | 2 hours |
| Working Temperature | 5°C to 45°C |
