FJ Dynamics Paintmaster Mini - Robotic Line Marker

FJ Dynamics Paintmaster Mini - Robotic Line Marker

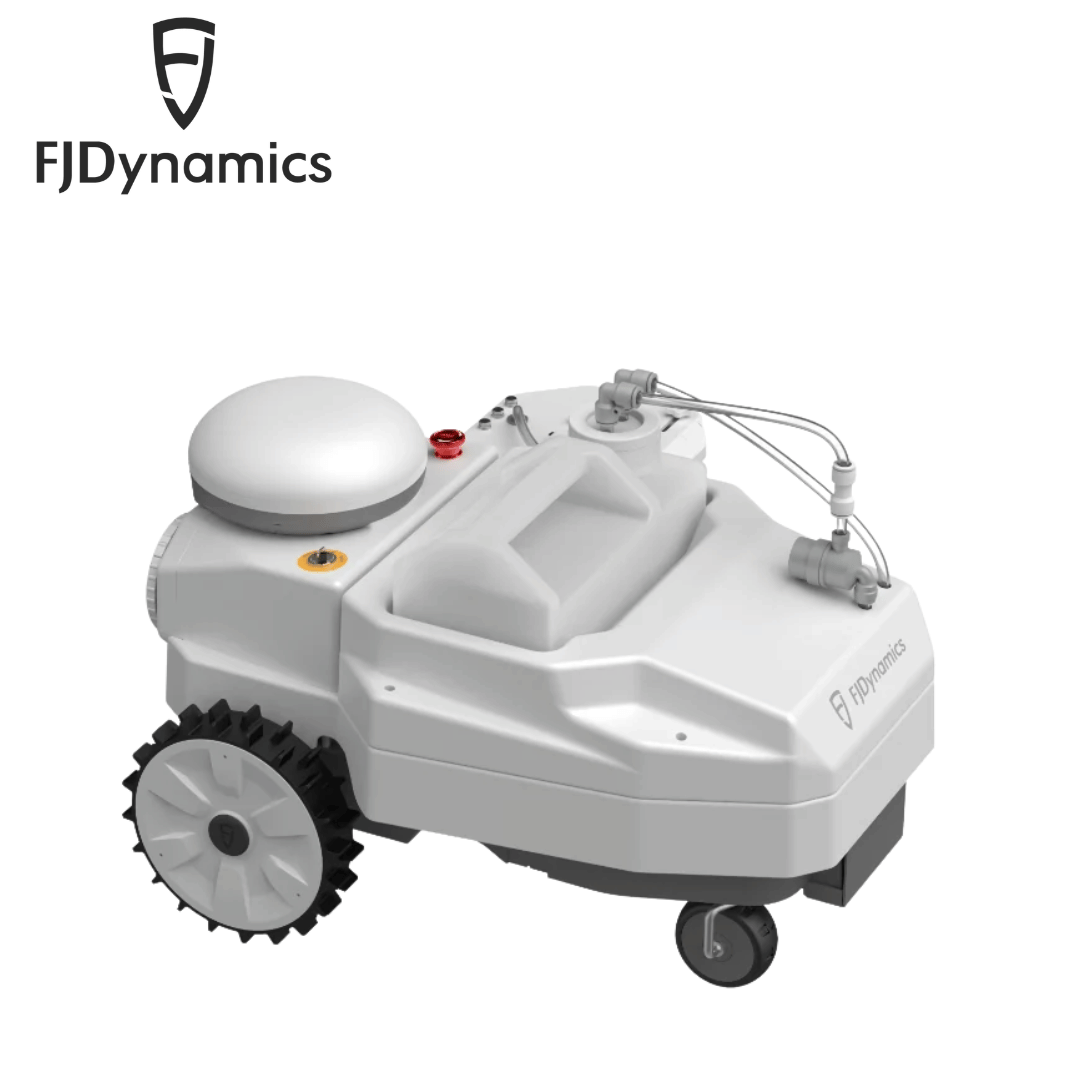

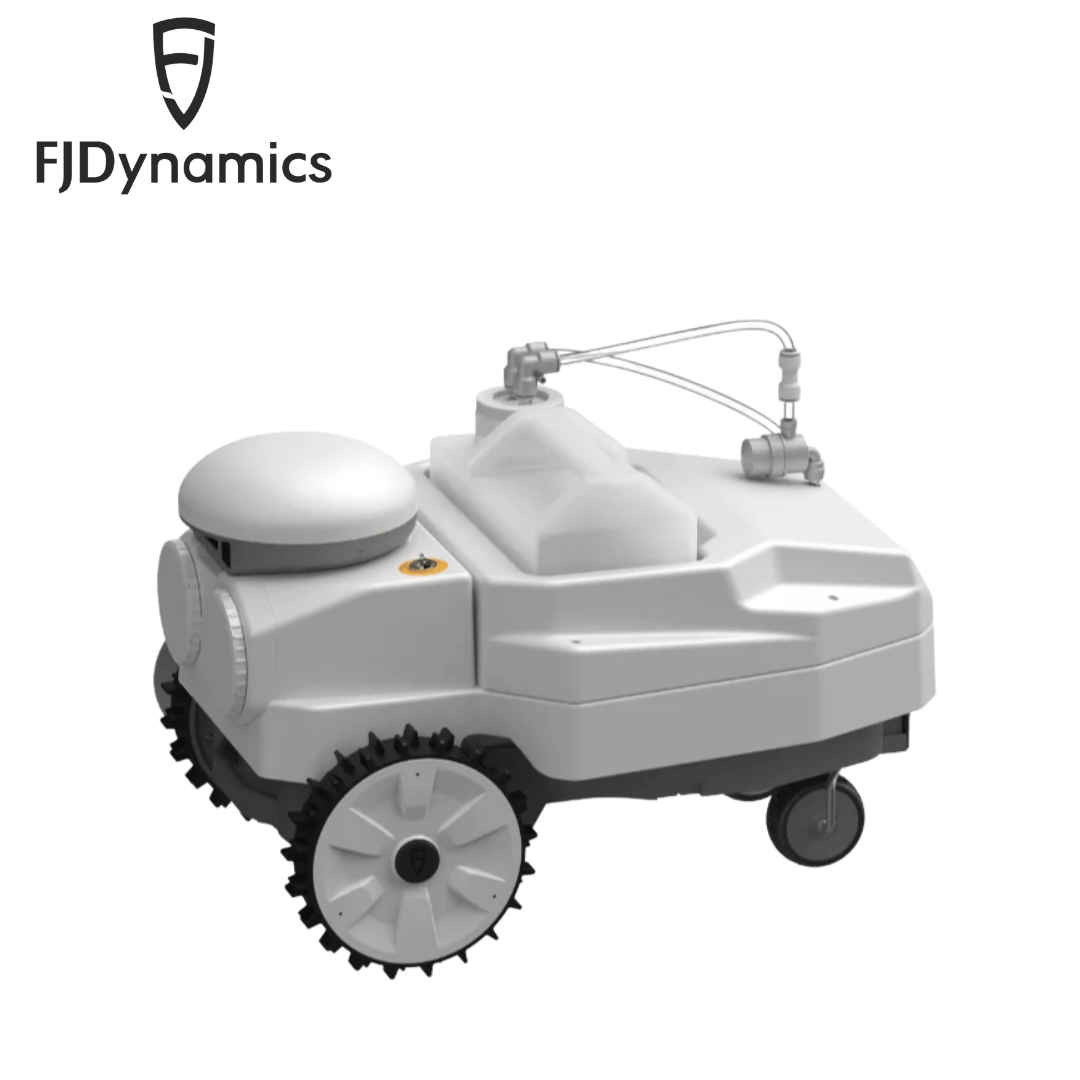

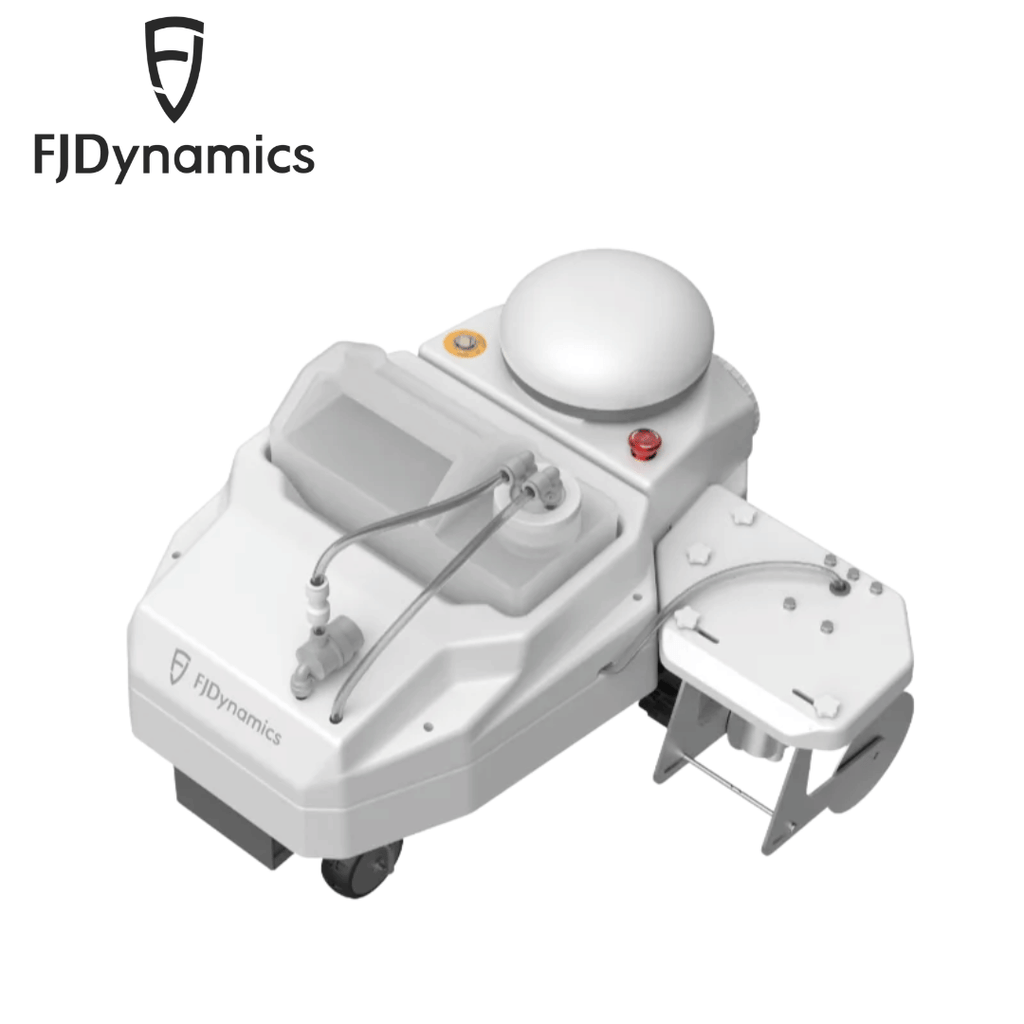

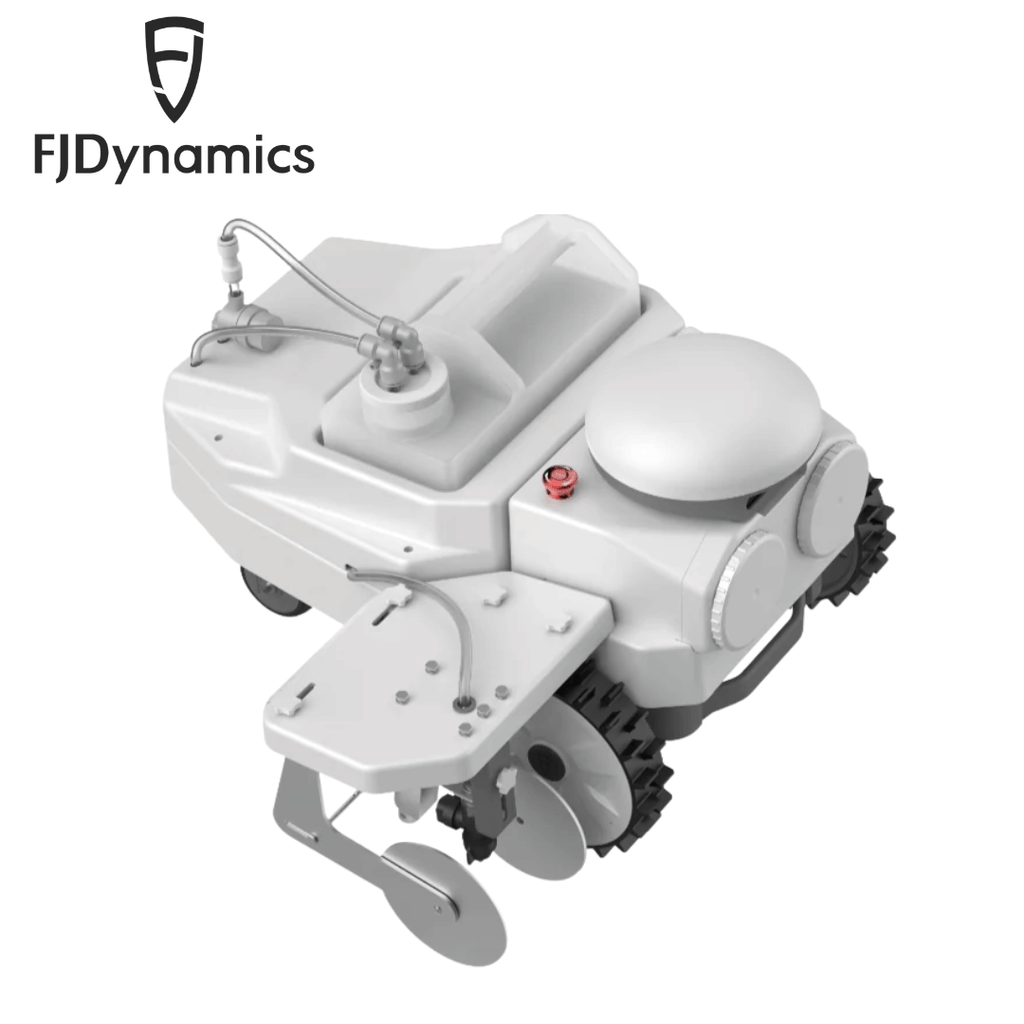

FJD PaintMaster™ Mini is a smart and compact line marking robot with a sleek design that delivers centimeter-level accuracy and high efficiency.  Fully autonomous operation saves hundreds of labour hours annually, making it a reliable and cost-effective solution for sports field managers who look for perfectly accurate results with minimal effort.

This FJD PaintMaster™ Mini is perfectly suited for smaller clubs and schools who only have 1 or 2 fields to mark up and don't need the expense of the larger FJD PaintMaster™ Pro.

Features industrial-grade RTK for stable, interference-resistant signals, ensuring every line is marked with pinpoint accuracy. It supports both local base stations and FJD N10 CORS System with professional NTRIP services, offering versatile signal solutions to meet high-precision marking needs across various scenarios

Achieve perfect line marking with AI-driven accuracy - every time. Swap batteries in one click and keep working non stop, all day long (requires optional additional batteries).

Free up your time to focus on what truly matters.

Features

industrial-grade RTK for stable, interference-resistant signals, ensuring every line is marked with pinpoint accuracy.

It supports both local base stations and FJD N10 CORS System with professional NTRIP services, offering versatile signal solutions to meet high-precision marking needs across various scenarios.

Specifications

• Weight (Excluding Paint): 21.85 kg
• Dimensions: 656x655x453 mm
• Marking Speed: 2 km/h
• Line Width Range: 5-12 cm
• Paint Container: 8L
• Nozzle Height: 3-8 cm
• Standard Battery Capacity: 190 Wh (2*95 Wh)
• Battery as Power Bank: Yes
• Fast Battery Swapping: Yes
• Battery Performance: 2h
• Charging Time: 2h (with dual chargers)
• Working Temperature:5–45 ℃
• IP Rating: IPX5

What's in the box

• Marker Unit
• Battery x 2
• 1 x 8L Paint canister
• V4E Point Marker
